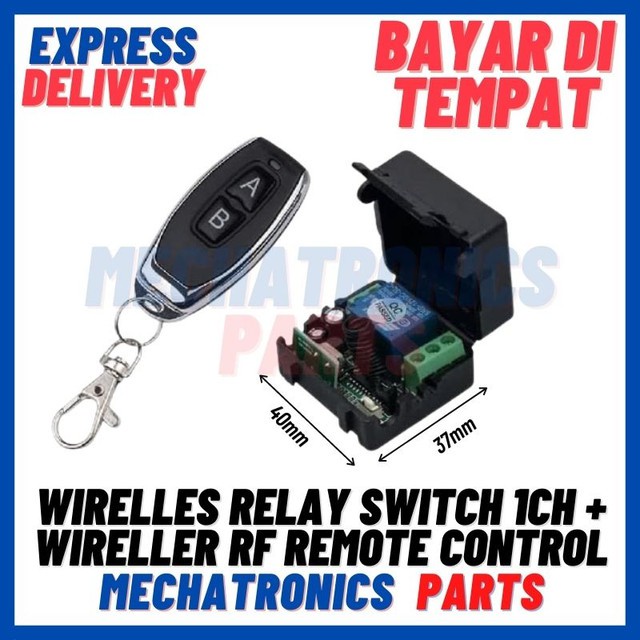

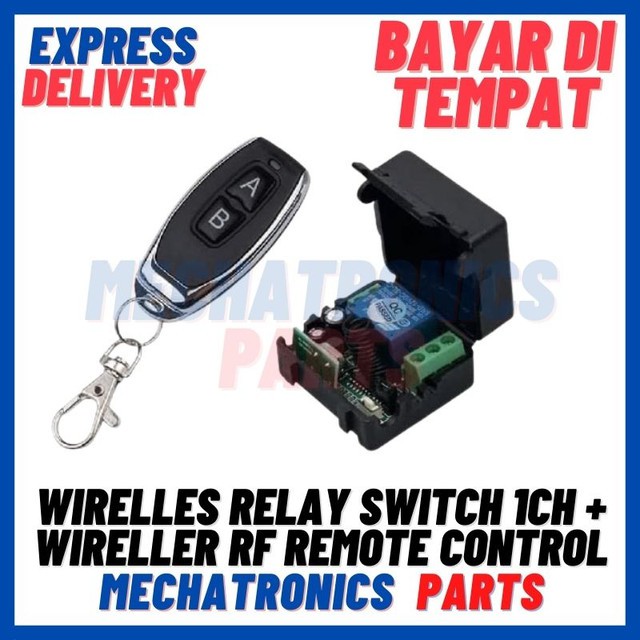

[NET-9003] WIRELLES RELAY SWITCH 1CH + WIRELLER RF REMOTE CONTROL

Detail [NET-9003] WIRELLES RELAY SWITCH 1CH + WIRELLER RF REMOTE CONTROL

HARAP BACA DESKRIPSI

barang yang kami jual sudah melalui QC pabrik untuk jaminan kualitas dan fungsi. tidak ada garansi untuk barang yang kami jual, kecuali kesalahan kirim barang atau kekurangan barang dapat diselesaikan melalui diskusi. membeli berarti setuju dengan ketentuan ini.

INGIN PENGIRIMAN ANDA LANCAR?
MOHON PASTIKAN ALAMAT SUDAH LENGKAP :
NAMA JALAN, NOMOR RUMAH, RT/RW, NO HP AKTIF.

DESKRIPSI:
Features:
Three working modes switched by bonding pad
Support many remote controls to control one switch
Support to control many switches by one remote control
Remote cotrol widely use in house, mall, electromobile, cars, motorcycle anti-theft alarm system or other control systems
Specified as preferred components in remote control garage, roller curtain, door locks, remote sensing, telemetry, industrial control and wireless security alarm industry

Descriptions:
Weight: 40g
Model: AK-RK01S-12-X
1. Remote Control Switch:
Circuit Board Size: 41*20*15mm
Working Voltage: DC12V
Working Frequency: 315MHz/ 433MHz
Output Mode: Switching signal
Working Way: Self-lock, Jog, Inter-lock (Switched by bonding pad)
2. Remote Control:
Size: 51.9*40*13mm
Color: Black
Working Voltage: DC 12V
Transmitting Distance: 100M (Open field)
Working Current: 10mA
Working Frequency: 266-433MHZ
Coded Type: Fix code, learning mode
Button Number: 2 buttons
Button Symbol: A/ B

Working Way:
Switched by bonding pad (1, 2, 3)
1. Self-lock: Connect 2 and 3 with shorting plug.
2. Jog: (1, 2, 3) Three bonding pads is non-occupation without connecting.
3. Inter-lock: Connect 1 and 2 with shorting plug.

Learning and removing method:
1. Learning method: Press the learning code for 3 seconds. The indicator will be off, and then loosen your finger, press any button of the remote control, the indicator flash 4 times and then normally on which mean you learn it successfully.
2. Remove/clean method: Press the learning button about 8 seconds, the indicator will be from being off to on all the time, it means the information that you keep have been removed successfully.


foto produk dan prodak asli bisa berbeda, tergantung stok. tetapi untuk fungsi tetap sama, membeli berarti setuju dengan ketentuan tersebut.

selamat berbelanja ditoko kami dan ikuti terus toko kami untuk update barang terbarunya kak terimakasih :)

Gambar produk
