NEMA 23 23HS5628 stepper motor nema 23 kode barang A

Detail NEMA 23 23HS5628 stepper motor nema 23 kode barang A

Barang promo pabrik kwalitas sangat bagus
1.8 degree current atau arus 2.8 - 3A
Nema 23 23HS5628 panjang shaft 23mm
diameter shaft 8mm
Panjang kabel 1 meter
A+A-B+B- = red blue green black
Spek:
Arus : +- 2.8 A
Holding Torque : 126 N''cm/12.
Rotor Inertia Torque : 300 g''cm^2
Phase resistance: 0.9 Ohm
Step angle accuracy: + - 5%(full step,not load)
Resistance accuracy: + - 10%
Inductance accuracy: + - 20%
Temperature rise: 80deg Max(rated current,2 phase on)
Ambient temperature ----------20deg ~+50deg
Insulation resistance:100M Min,500VDC

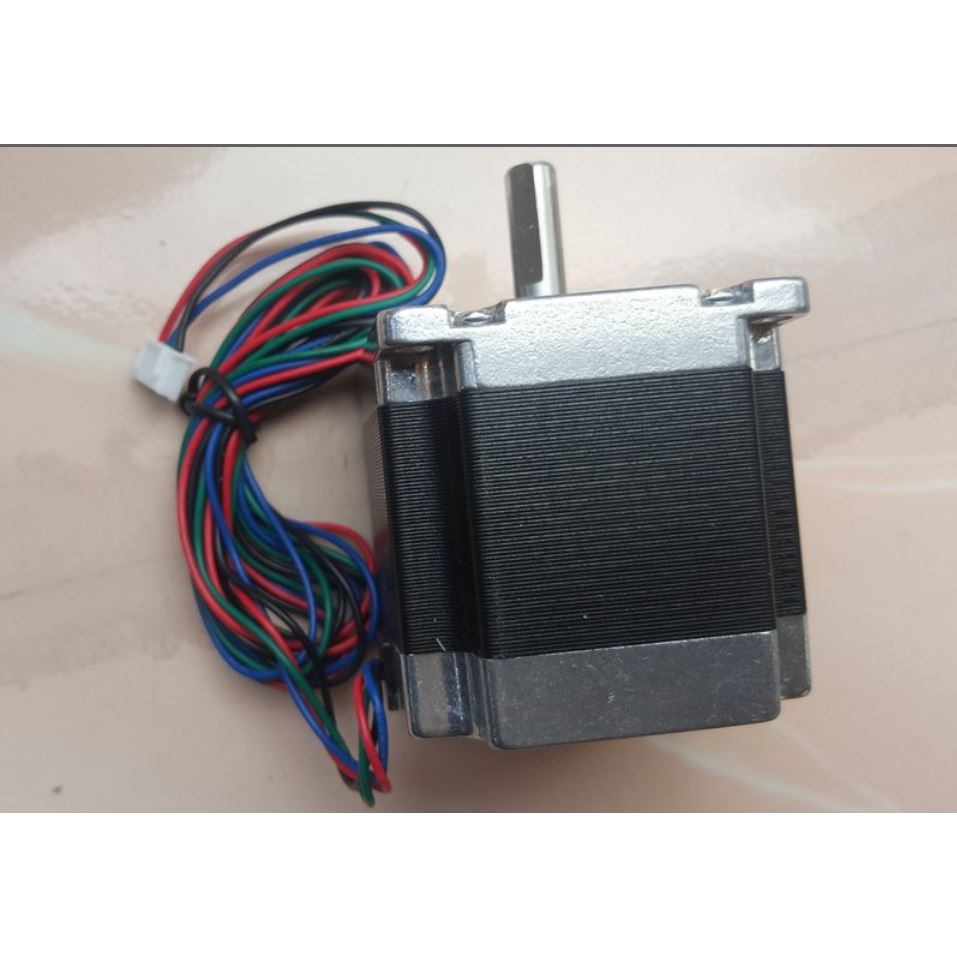

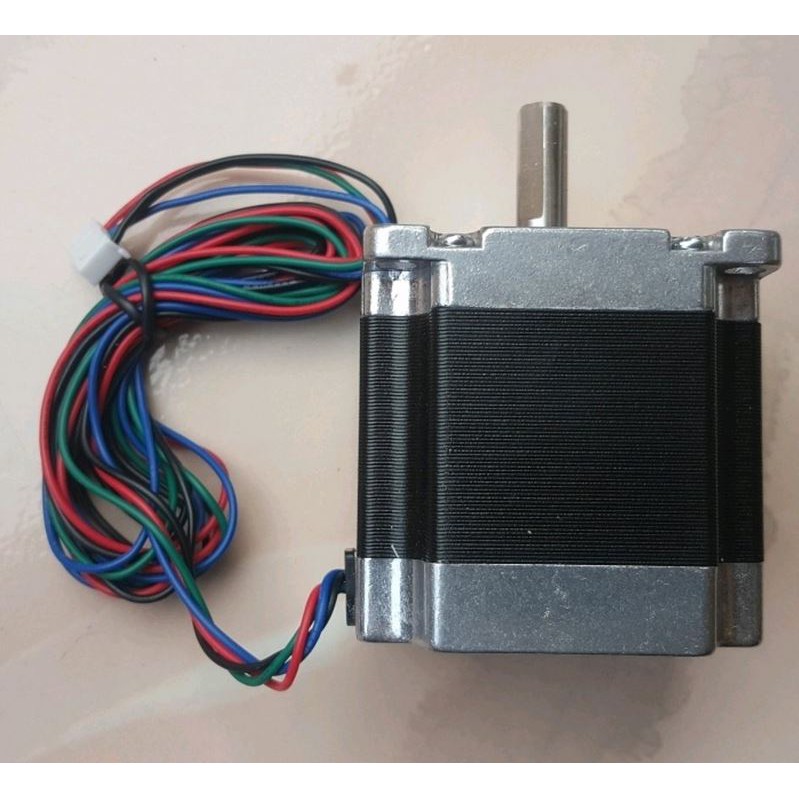

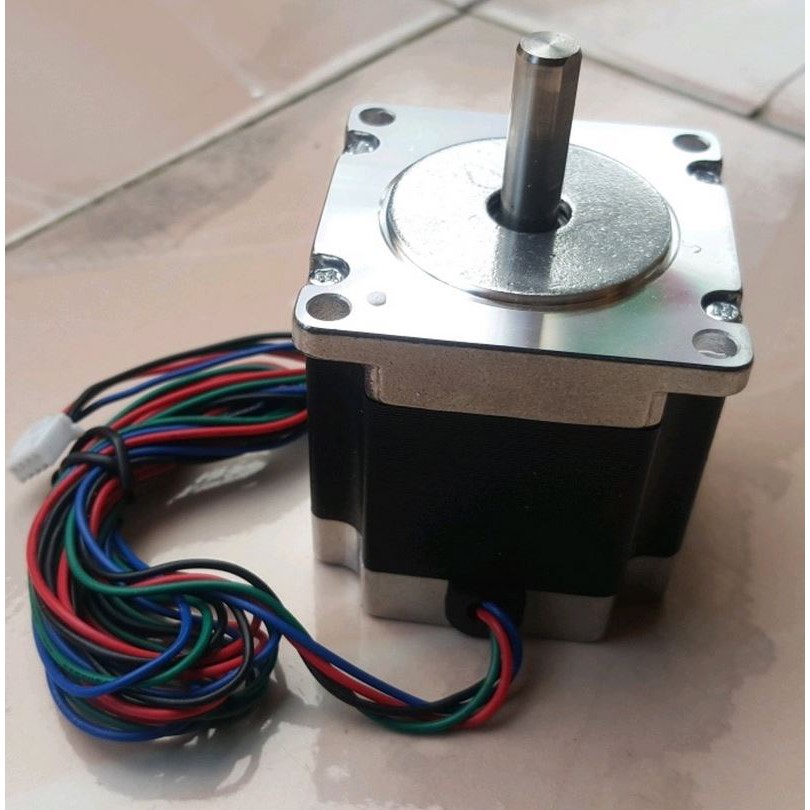

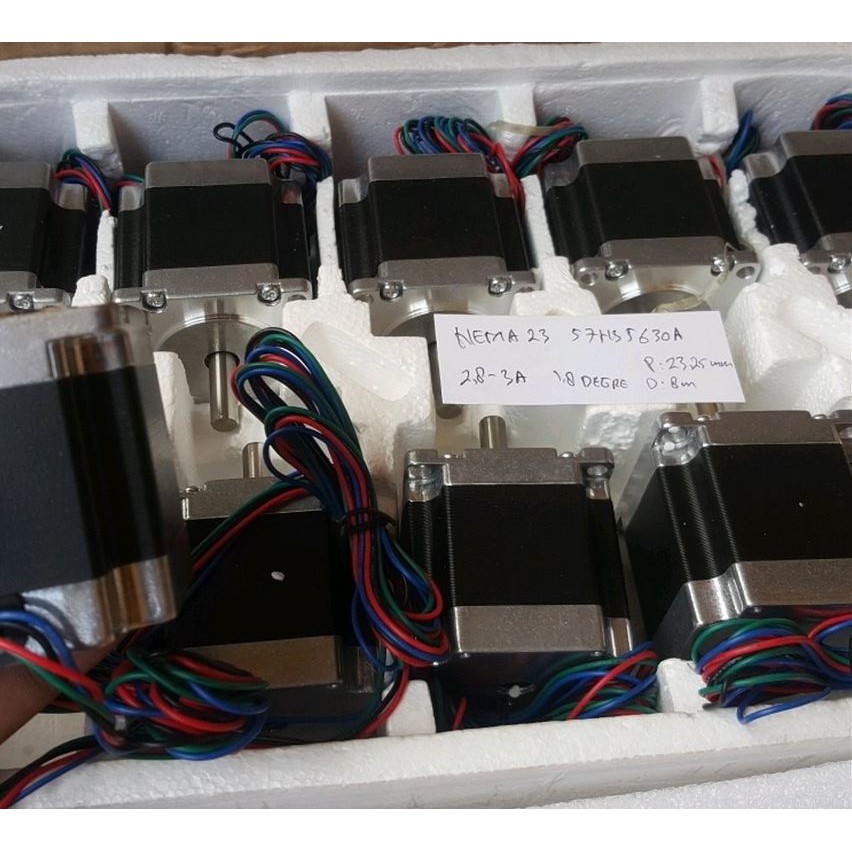

Gambar produk
