NEMA 23 23HS5628 stepper motor nema 23

Detail NEMA 23 23HS5628 stepper motor nema 23

Deskripsi NEMA 23 23HS5628 stepper motor nema 23


Barang promo pabrik kwalitas sangat bagus
1.8 degree current atau arus 2.8A-3A
Nema 23 23HS5628 panjang shaft 23mm
diameter shaft 8mm
Panjang kabel 1 meter
A+A-B+B- = red blue green black
Spek:
Arus : +- 2.8 A
Holding Torque : 126 N''cm/12.6 KG.cm
Rotor Inertia Torque : 300 g''cm^2
Phase resistance: 0.9 Ohm
Step angle accuracy: + - 5%(full step,not load)
Resistance accuracy: + - 10%
Inductance accuracy: + - 20%
Temperature rise: 80deg Max(rated current,2 phase on)
Ambient temperature ----------20deg ~+50deg
Insulation resistance:100M Min,500VDC

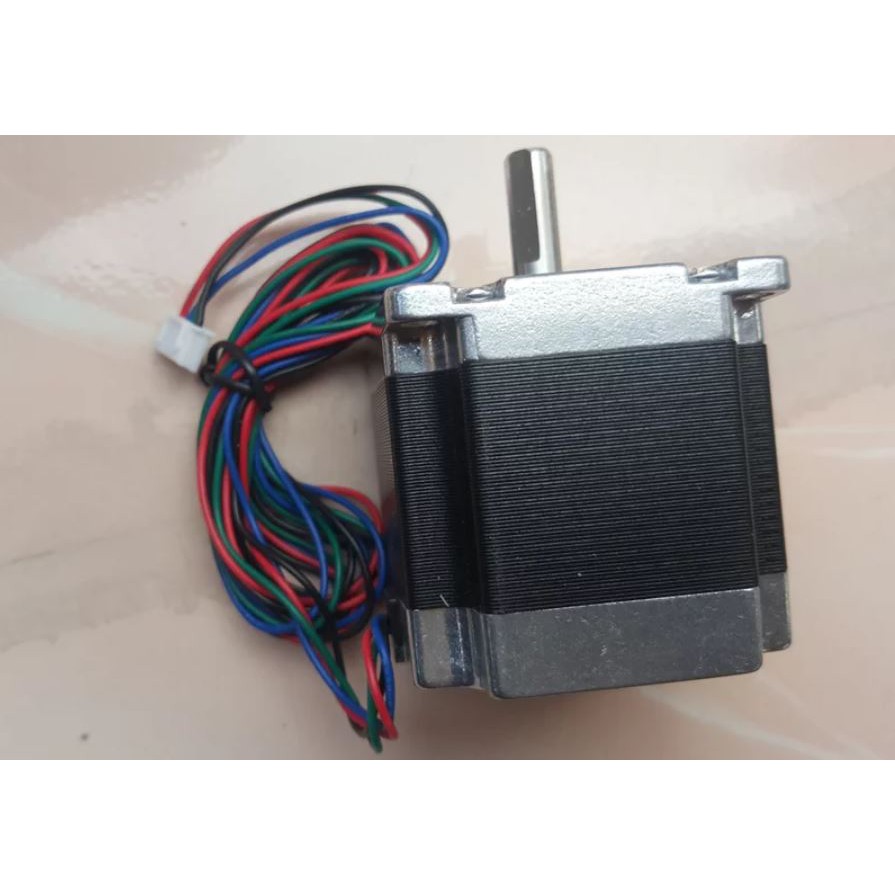

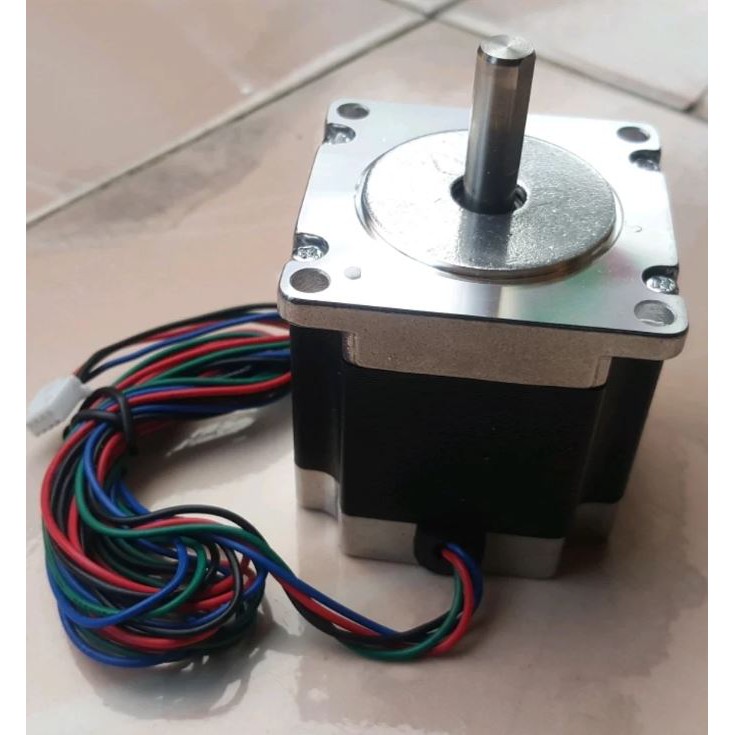

Gambar produk
