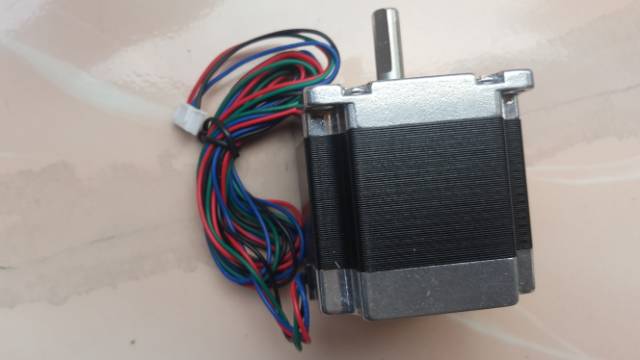

Detail NEMA 23 23HS5628 stepper motor nema 23 kode barang A
Barang promo pabrik kwalitas sangat bagus 1.8 degree current atau arus 3A lebih kuat dan efektif Nema 23 22HS28 panjang shaft 23mm diameter 8mm A+A-B+B- = red blue green black Spek: Arus : +- 2.8 A Holding Torque : 126 N''cm/12.6 KG.cm Rotor Inertia Torque : 300 g''cm^2 Phase resistance: 0.9 Ohm Step angle accuracy: + - 5%(full step,not load) Resistance accuracy: + - 10% Inductance accuracy: + - 20% Temperature rise: 80deg Max(rated current,2 phase on) Ambient temperature ----------20deg ~+50deg Insulation resistance:100M Min,500VDC
Gambar produk
