Nema 17 23-33-40-42-47mm 3D Printer Engraving Writing Stepper Motor
Deskripsi singkat
Elektronik > Elektronik Lainnya > Nema 17 23-33-40-42-47mm 3D Printer Engraving Writing Stepper Motor
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail Nema 17 23-33-40-42-47mm 3D Printer Engraving Writing Stepper Motor

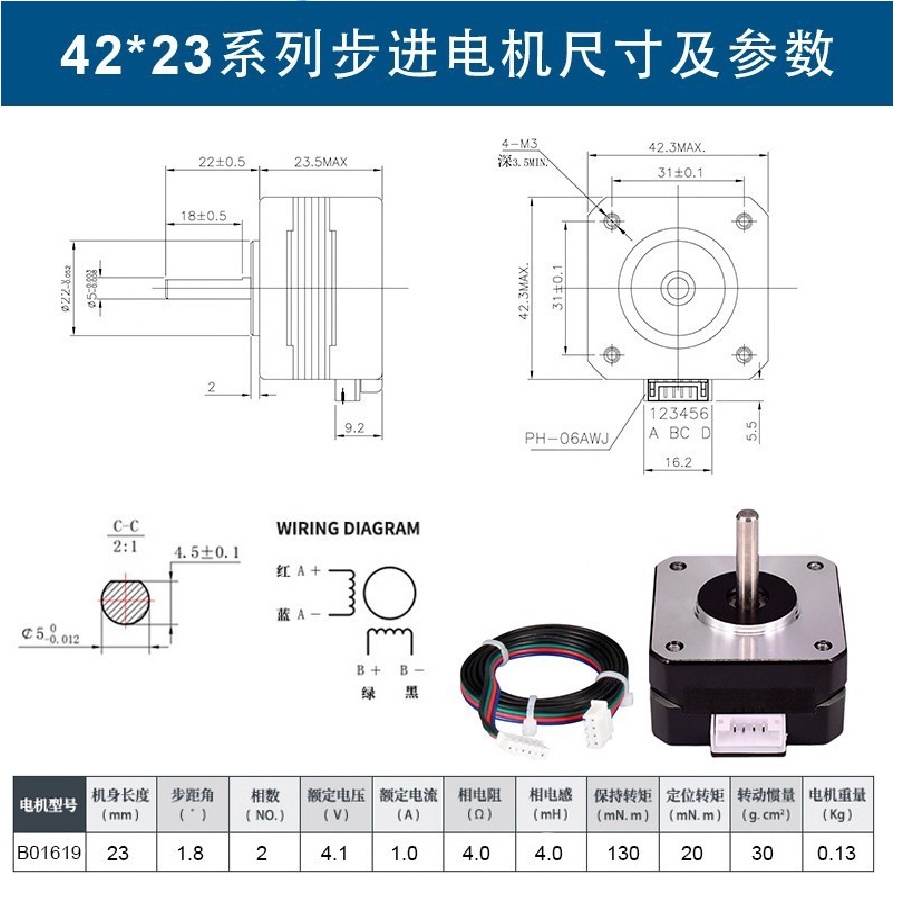

Specification :Nema17 23mm
Part number : B01619
Motor Length : 23mm
Step / Degree : 200 / 1.8 Degree
Phase No. : 2
Phase Voltage : 4.1V
Phase Current : 1.0A
Phase Resistance : 4Ohm
Phase Induktance : 4mH
Holding Torque : 130mN.m
Detent Torque : 20mN.m
Rotor Inertia : 30g.cm^2
Weight : 130g

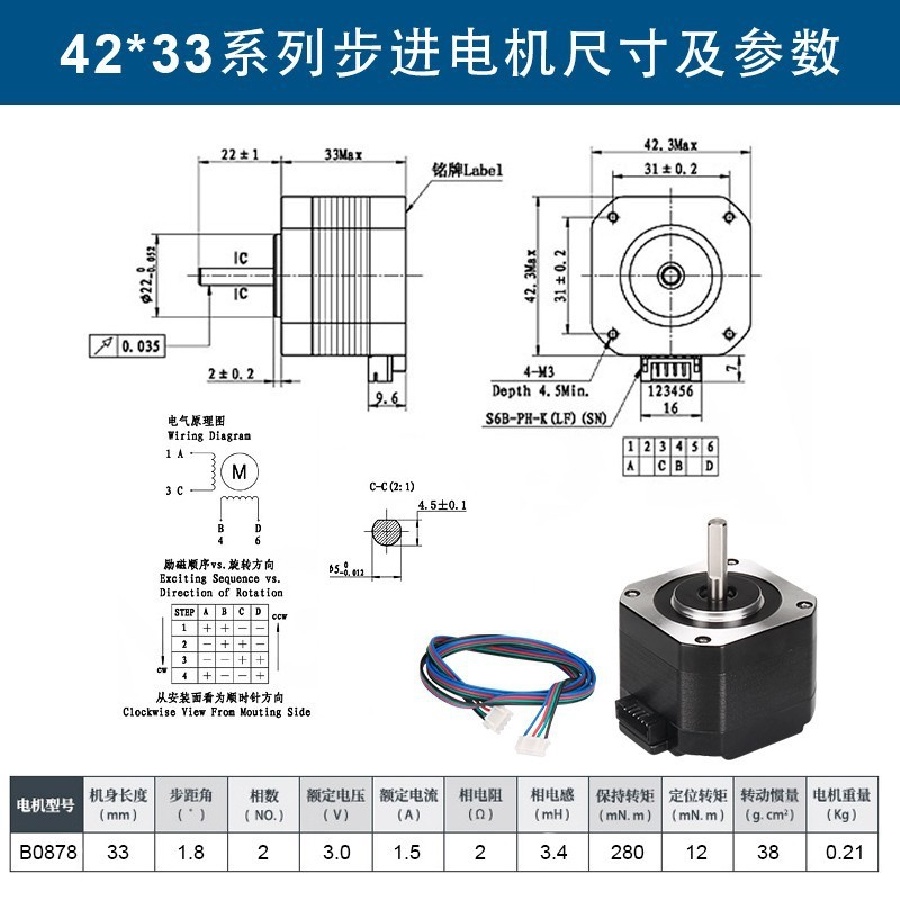

Nema17 33mm
Part number : B0878
Motor Length : 33mm
Step / Degree : 200 / 1.8 Degree
Phase No. : 2
Phase Voltage : 3.0V
Phase Current : 1.5A
Phase Resistance : 2Ohm
Phase Induktance : 3.4mH
Holding Torque : 280mN.m
Detent Torque : 12mN.m
Rotor Inertia : 38g.cm^2
Weight : 210g

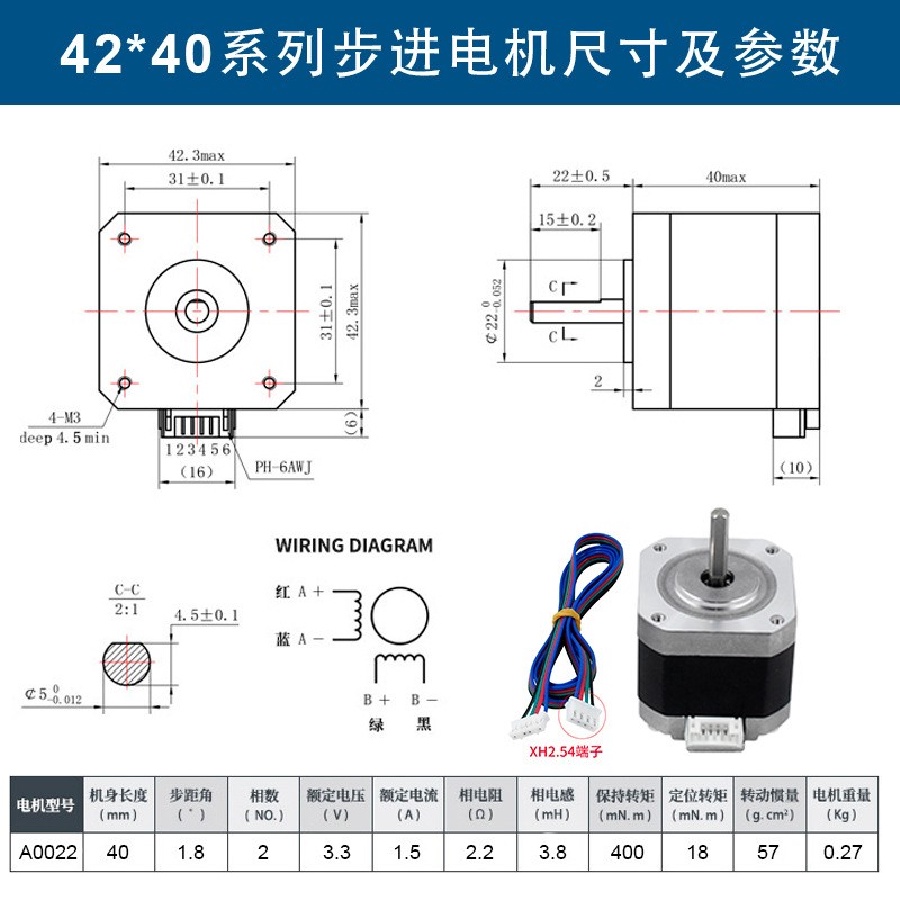

Nema17 40mm
Part number : A0022
Motor Length : 40mm
Step / Degree : 200 / 1.8 Degree
Phase No. : 2
Phase Voltage : 3.3V
Phase Current : 1.5A
Phase Resistance : 2.2Ohm
Phase Induktance : 3.8mH
Holding Torque : 400mN.m
Detent Torque : 18mN.m
Rotor Inertia : 57g.cm^2
Weight : 270g

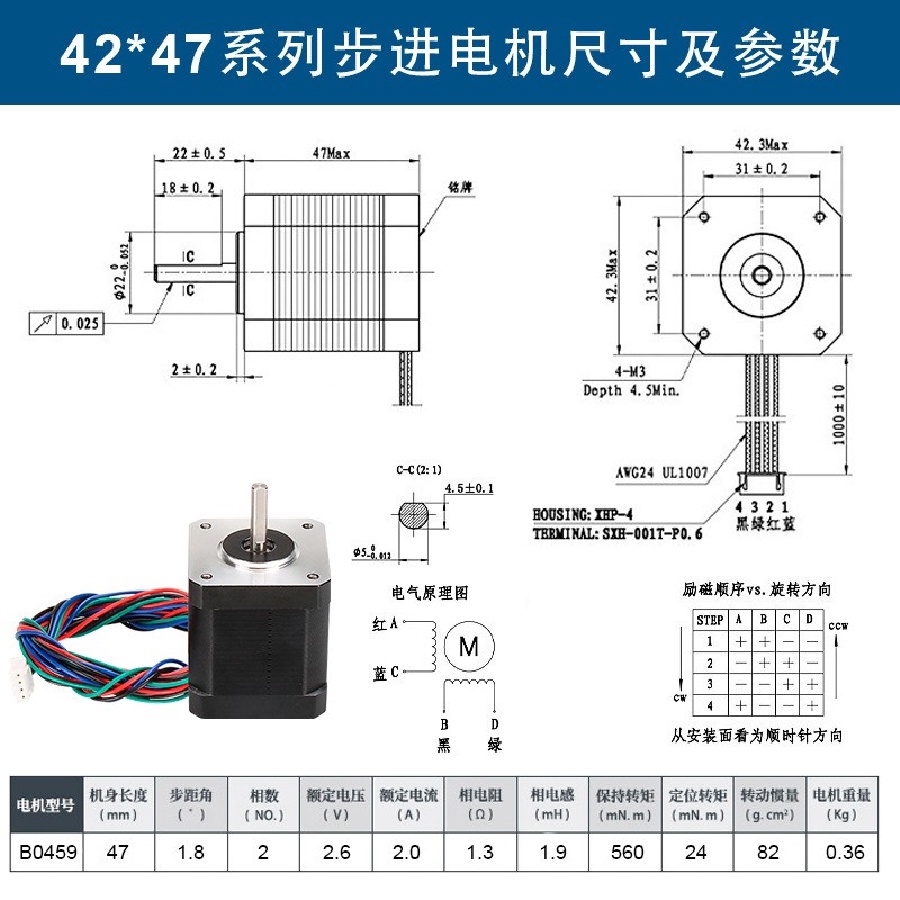

Nema17 47mm
Part number : B0459
Motor Length : 47mm
Step / Degree : 200 / 1.8 Degree
Phase No. : 2
Phase Voltage : 2.6V
Phase Current : 2.0A
Phase Resistance : 1.3Ohm
Phase Induktance : 1.9mH
Holding Torque : 560mN.m
Detent Torque : 24mN.m
Rotor Inertia : 82g.cm^2
Weight : 360g
Gambar produk
