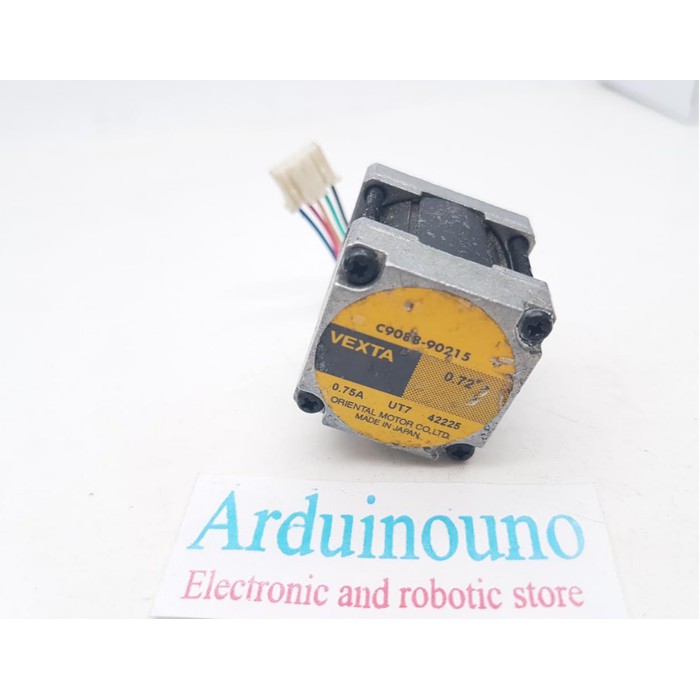

Detail NEMA 11 Motor stepper Vexta C9088-90215 5 Phase Pentagon 0.72Deg 0.75A NEMA11

MFG: ORIENTAL MOTOR
P/N: C9088-90215
NEMA: 11
COIL: .75A/1.2 ohm Pentagon
TYPE: 5 Phase Bi-Polar 5 lead
STEP ANGLE: .72deg/Step

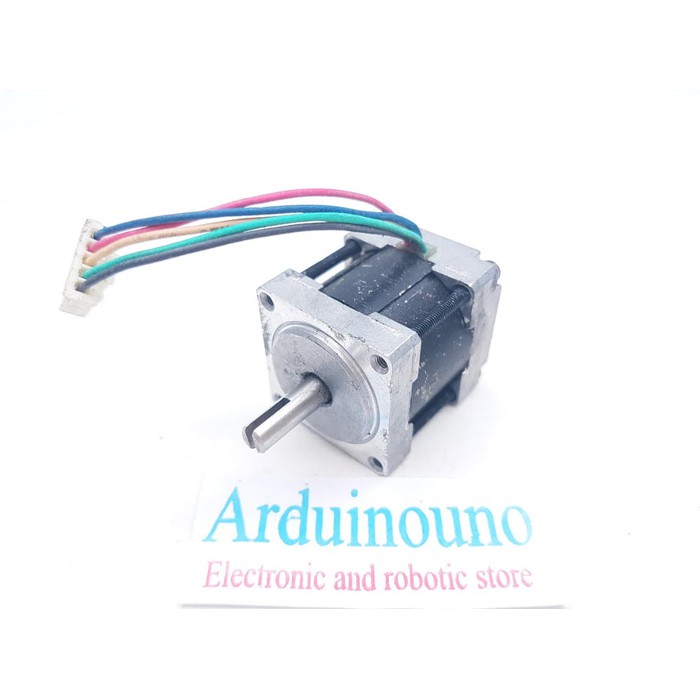

USED VEXTA Pentagon drive Motor, 5mm dia. X 14mm steel shaft with 8mm slot. 4 corner m2.5x2.5mm mounting holes. SHORT 1/2" wire leads

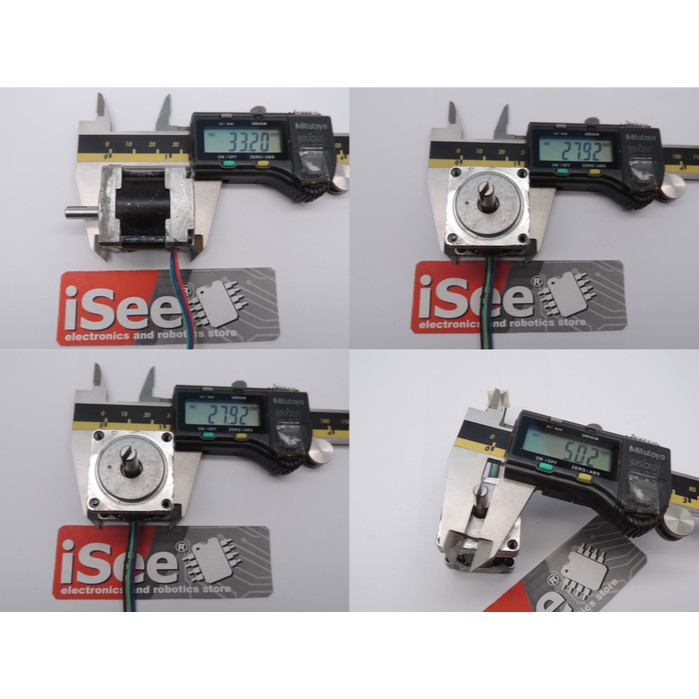

L: 1-1/4" (Body) SQ: 1-1/16” WT: .06
