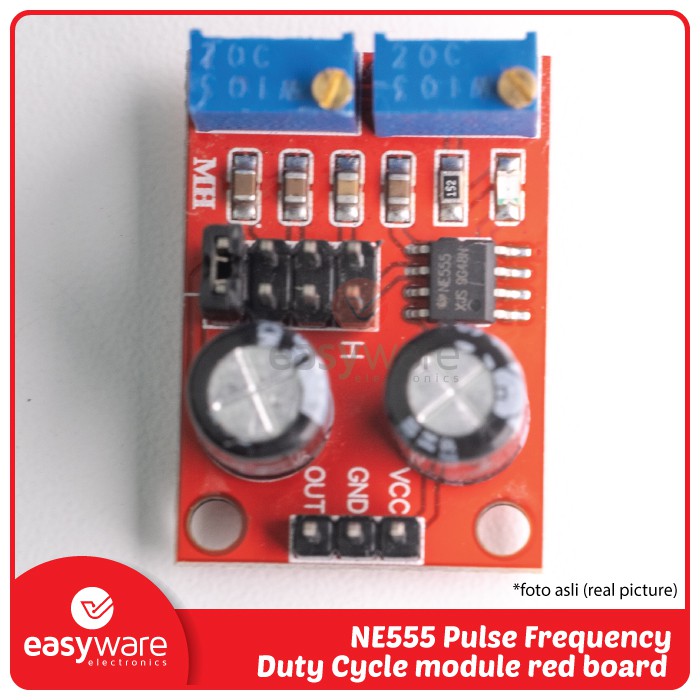

NE555 Pulse Frequency Duty Cycle Adj. module red board

Detail NE555 Pulse Frequency Duty Cycle Adj. module red board

Hi #RekanEasyWare ...
SKU: MOD0159

Fitur :
- Size: 3.1CM * 2.2CM
- the main chip: NE555;
- Input voltage: 5V-15VDC. 5V power supply, the output current can 15MA around; 12V power supply, the output current can 35MA around;
- the input current: 100MA
- the output amplitude: 4.2V V-PP to 11.4V V-PP. (Different depending on the input voltage, the output amplitude will be different)
- the maximum output current: 15MA (5V power supply, V-PP greater than 50%), 35MA (12V power supply, V-PP greater than 50%)

The scope of this module:
- is used as a square wave signal generator generates a square wave signal used for experimental development.
- to drive a stepper motor for generating a square wave drive signal.
- adjustable pulse generated for use by MCU.
- adjustable pulse generation, control circuitry associated.


Advantages:
- the output with LED indication, there is no output straightforward (low LED volume, high LED off frequency is relatively low, the LED flashes);
- the output level selectable frequency range, the output frequency is more continuously adjustable;
- LF file: 1Hz ~ 50Hz
- IF file: 50Hz ~ 1kHz
- High-frequency file: 1KHz ~ 10kHz
- HF file: 10kHz ~ 200kHz
- the output duty cycle can fine-tune, duty cycle and frequency is not separately adjustable, adjusting the duty cycle will change the frequency
- the output frequency is adjustable;
- Period T = 0.7 (RA +2 RB) C
- RA, RB is 0-10K adjustable;
- Low profile when C = 0.001UF;
- IF stalls C = 0.1UF;
- High-frequency file C = 1UF;
- HF stalls C = 100UF, so the frequency of the waveform buyers can own calculations


Package :
- 1 pcs NE555 Pulse Frequency Duty Cycle Adj. module red board
