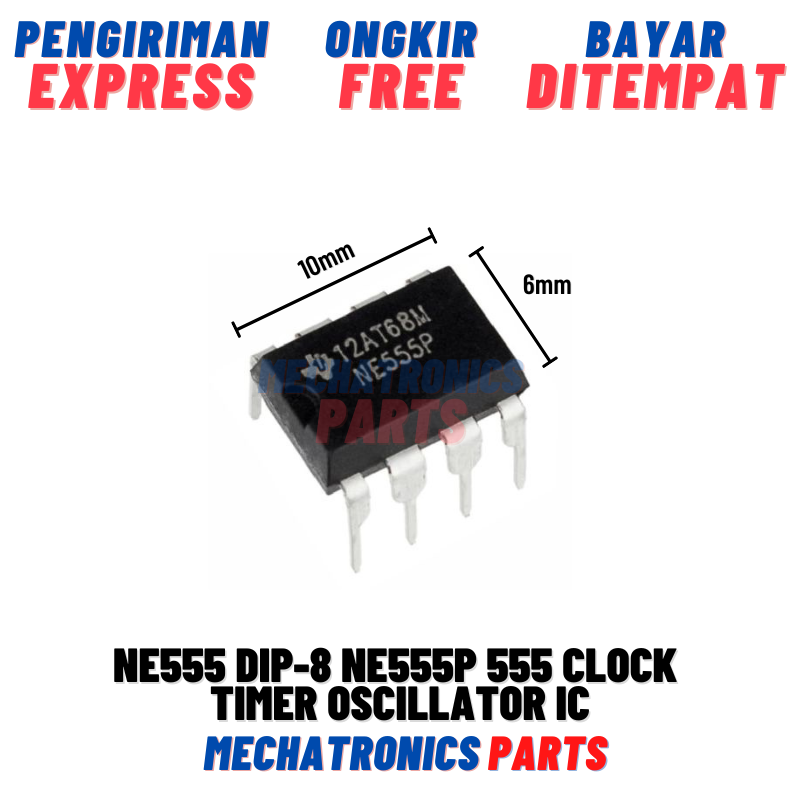

Ne555 Dip 8 Ne555p 555 Clock Timer Oscillator Ic

Detail Ne555 Dip 8 Ne555p 555 Clock Timer Oscillator Ic

HARAP BACA DESKRIPSI

barang yang kami jual sudah melalui QC pabrik untuk jaminan kualitas dan fungsi.
tidak ada garansi untuk barang yang kami jual, kecuali kesalahan kirim barang atau kekurangan barang dapat diselesaikan melalui diskusi.membeli berarti setuju dengan ketentuan ini.


IC yang satu ini adalah IC wajib favorit hobbyist elektronika. NE555 memiliki 3 mode, monostable, astable, dan bistable. Dengan memanfaatkan mode tersebut, IC ini bisa bikin buanyak sekali rangkaian mulai dari rangkaian blink LED, timer delay, osilator dll.

So, silahkan di ORDER gan !!! :D

These devices are precision timing circuits capable of producing accurate time delays or oscillation. In the time-delay or monostable mode of operation, the timed interval is controlled by a single external resistor and capacitor network. In the astable mode of operation, the frequency and duty cycle can be controlled independently with two external resistors and a single external capacitor.

The threshold and trigger levels normally are two-thirds and one-third, respectively, of VCC. These levels can be altered by use of the control-voltage terminal. When the trigger input falls below the trigger level, the flip-flop is set, and the output goes high. If the trigger input is above the trigger level and the threshold input is above the threshold level, the flip-flop is reset and the output is low. The reset (RESET) input can override all other inputs and can be used to initiate a new timing cycle. When RESET goes low, the flip-flop is reset, and the output goes low. When the output is low, a low-impedance path is provided between discharge (DISCH) and ground.

The output circuit is capable of sinking or sourcing current up to 200 mA. Operation is specified for supplies of 5 V to 15 V. With a 5-V supply, output levels are compatible with TTL inputs.

Features:
- 4.5V to 16V supply
- 8-pin DIP package
- Timing from microseconds to hours
- Astable or monostable operation
- Adjustable duty cycle
- TTL compatible output
- Sink or source up to 200mA

*PERHATIAN

Foto produk dan produk asli bisa berbeda, tergantung stok.
Tetapi secara fungsi tetap sama, membeli berarti setuju dengan ketentuan tersebut.


INGIN PENGIRIMAN ANDA LANCAR?

MOHON PASTIKAN ALAMAT SUDAH LENGKAP:
NAMA JALAN, NOMOR RUMAH, RT/RW, NO HP AKTIF


SELAMAT BERBELANJA
