NE555 Delay Timer module DC 12V with optocoupler

Detail NE555 Delay Timer module DC 12V with optocoupler

Hi #RekanEasyWare ...
EasyWare Part#: EP001792

This NE555 Delay Monostable Switch Module Time Delay Switch is a timer switch module, based on NE555 chip with high-performance timing CPU design. The power indicator LED and switch trigger timing indication LEDs. Timing from microseconds to long hours.

This is a monostable generator based on NE555 integrated circuit. It has adjustable delay time from 0 to 10 seconds using the potentiometer or by changing the capacitance. It is also capable of controlling device below 220V/10A. The NE555 is a highly stable device for generating accurate time delays or oscillation. Additional terminals are provided for triggering or resetting if desired.

DETAIL :
- Timing from microseconds to long hours.
- Simple circuit design.
- Precision Pulse Generation / Timing.
- Adjustable Duty Cycle.
- Monostable Operation.
- Supply Voltage (V): 12
- Adjustable Time(s): 0 to 10
- AC Control Voltage(V): 0-250 @max. 10A
- DC Control Voltage(V): 0-30 @max. 10A

PACKAGE :
- 1x NE555 Delay Timer module - 12v

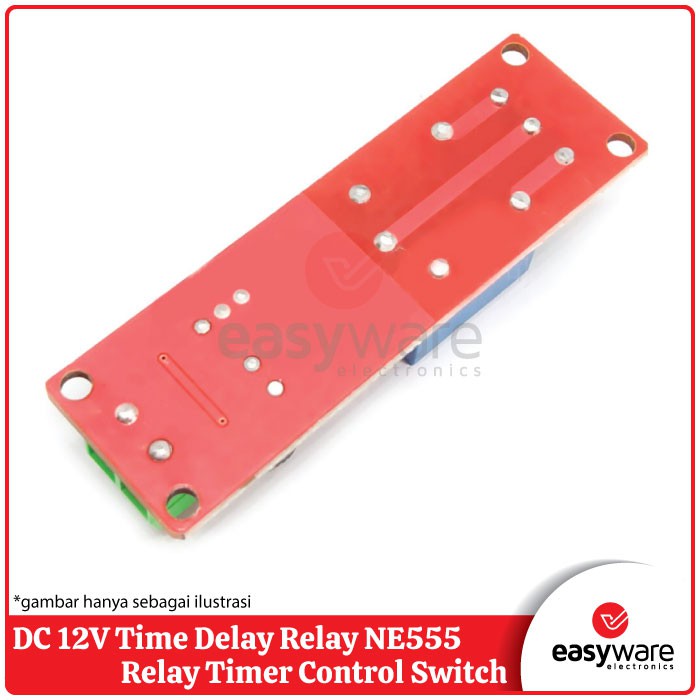

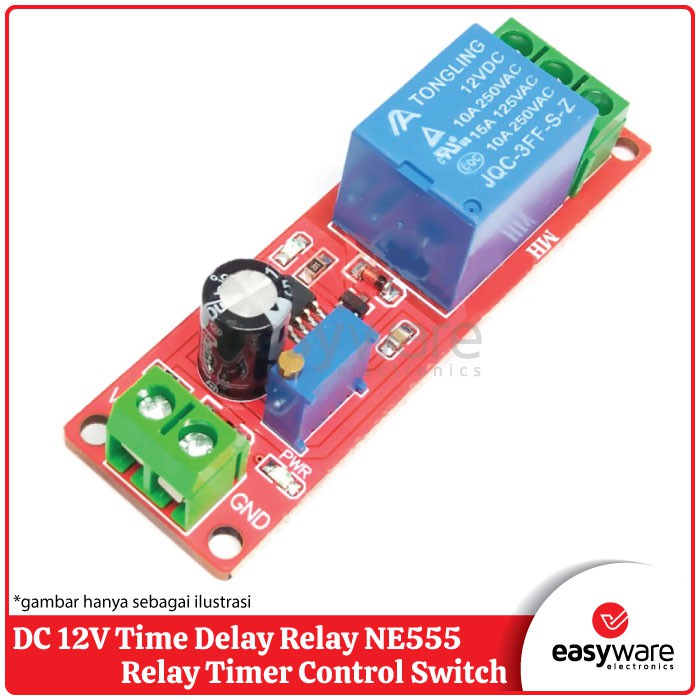

Gambar produk
