Detail NE555 Adjustable Frequency Pulse Generator Module 5V-12V for Arduino
Onboard NE555 chip, single signal output, the output duty cycle is about 50% square wave; adjustable resistance, adjust the resistance can control the output frequency, with onboard power indicator.the application of the module:1. As a square wave signal generator, generate square wave signal for experimental development and use.
2. Used to generate a square wave signal that drives the stepper motor driver.
3. Generate adjustable pulse for MCU use.
4. generate adjustable pulse, control the relevant circuit.
Chip: NE555
Operating Voltage: 5 ~ 12V
Board Size: 29mm*12mm
Duty Cycle: 50%

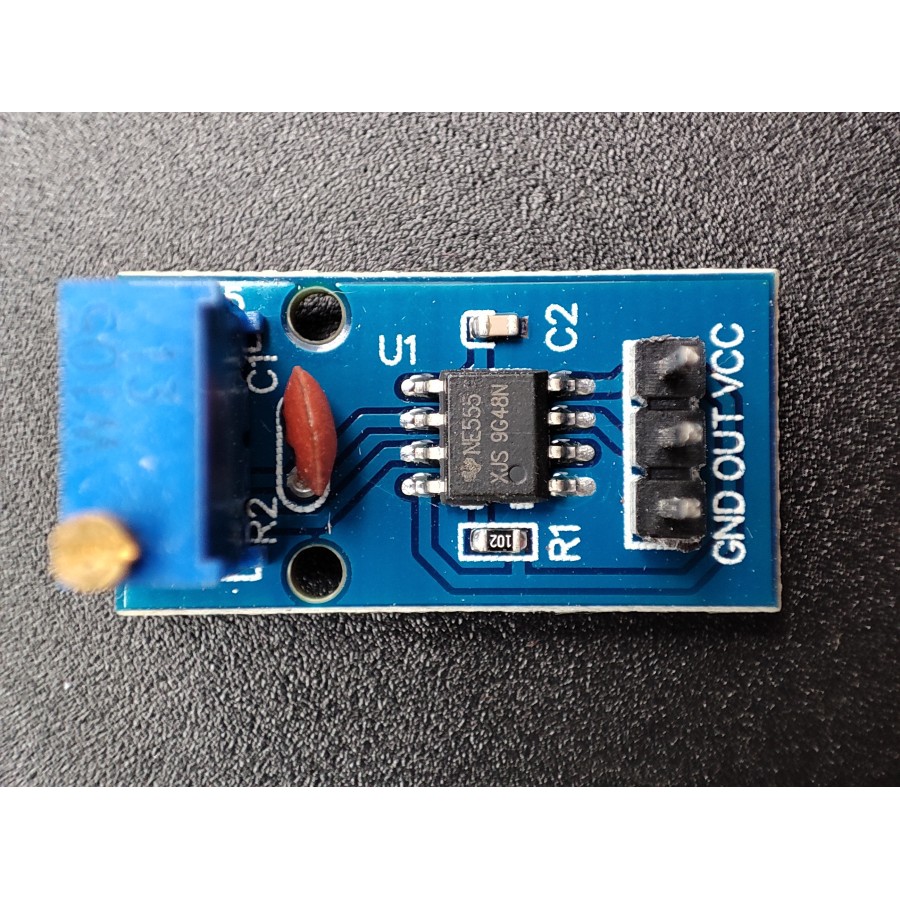

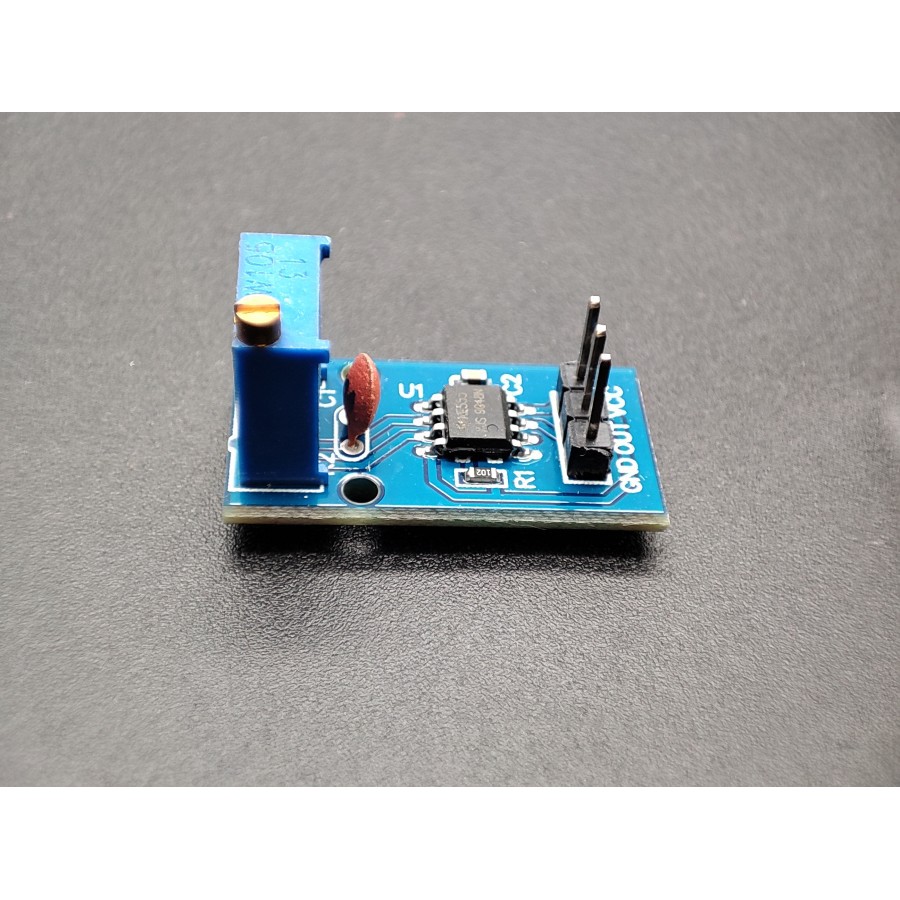

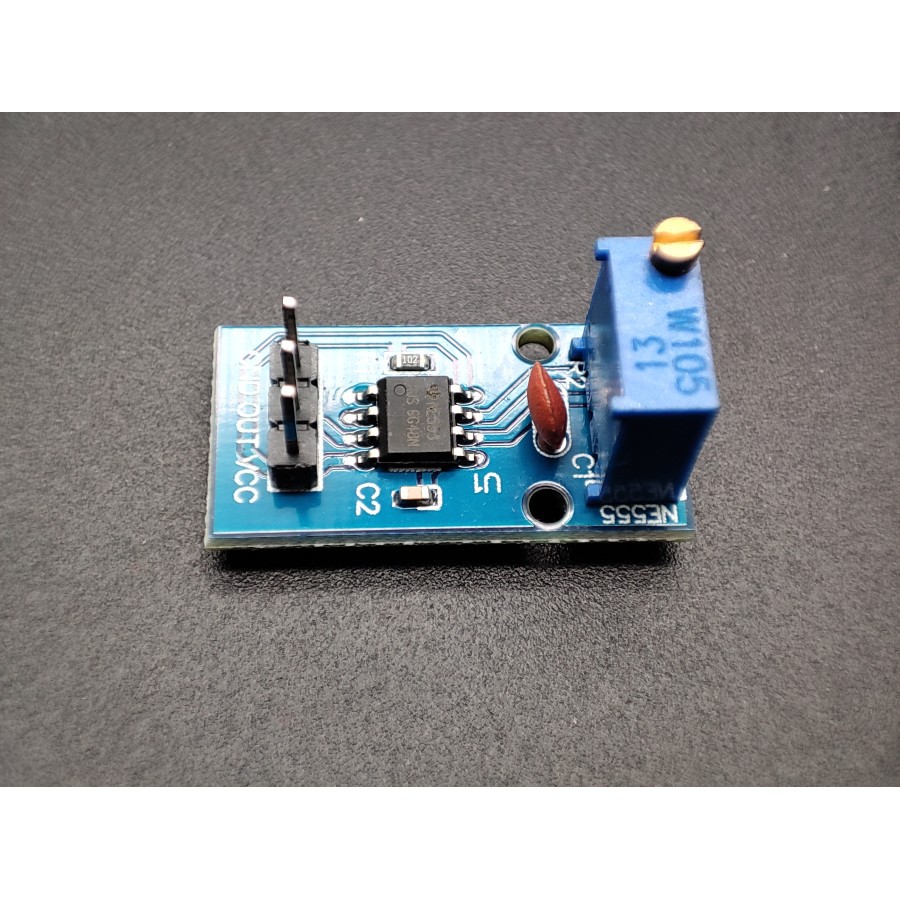

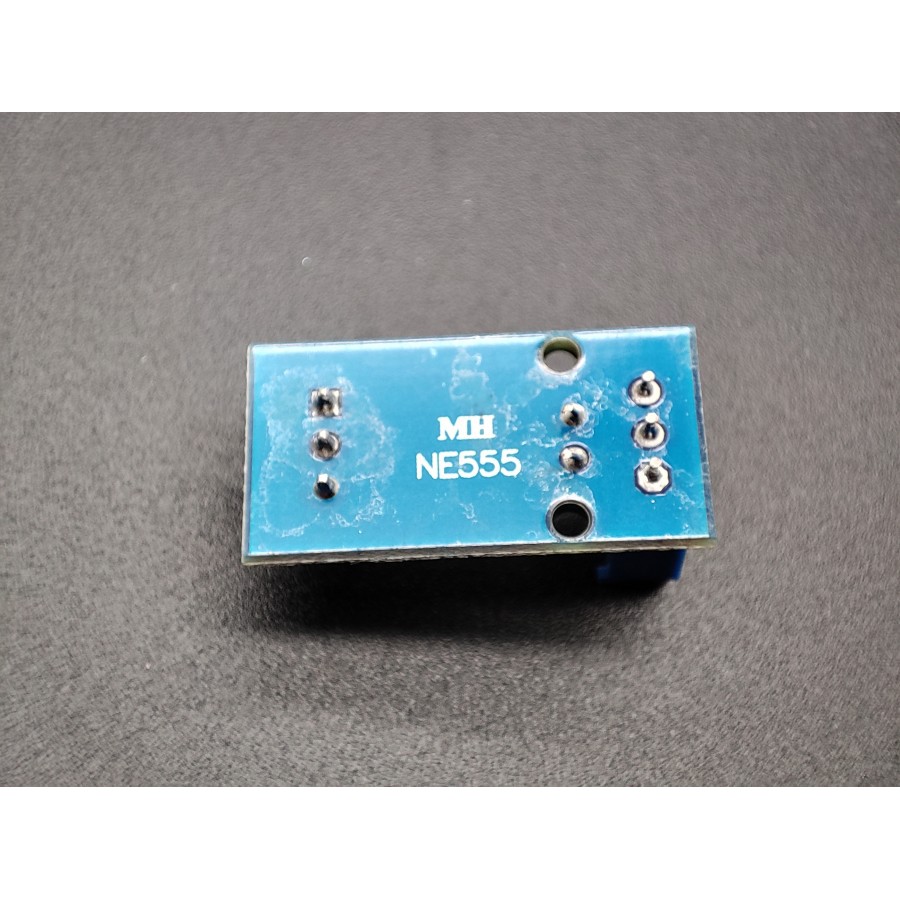

Gambar produk
