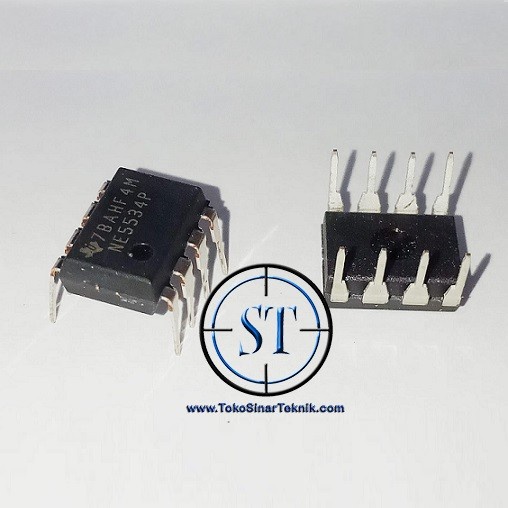

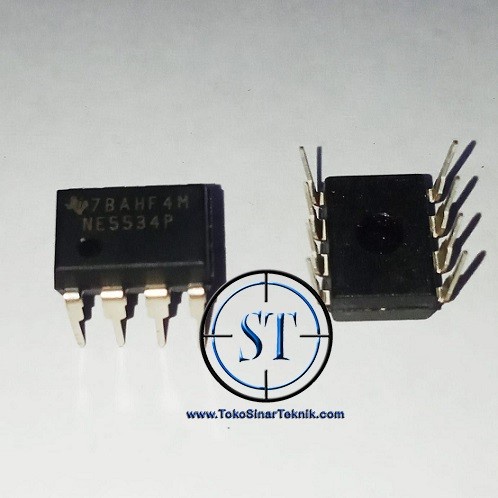

NE5534P NE5534 NE 5534P DIP 8 Pin Operational Amplifier DIP NE 5534 P
Deskripsi singkat
Elektronik > Elektronik Lainnya > NE5534P NE5534 NE 5534P DIP 8 Pin Operational Amplifier DIP NE 5534 P
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail NE5534P NE5534 NE 5534P DIP 8 Pin Operational Amplifier DIP NE 5534 P
Harga untuk 1 Pcs.MOHON MAAF MINIMAL PEMBELIAN 10,000 RUPIAH TIDAK TERMASUK ONGKIR
ORDER DI BAWAH ITU AKAN OTOMATIS KAMI TOLAK TRIMS
Supply Voltage - Max:30 V
Output Current per Channel:38 mA
Number of Channels:1 Channel
GBP - Gain Bandwidth Product:10 MHz
SR - Slew Rate:13 V/us
CMRR - Common Mode Rejection Ratio:100 dB
Ib - Input Bias Current:1.5 uA
Vos - Input Offset Voltage:4 mV
Supply Voltage - Min:10 V
Operating Supply Current:4 mA
Maximum Operating Temperature:+ 70 C
Minimum Operating Temperature:0 C
Shutdown:No Shutdown
Packaging:Tube
Amplifier Type:Low Noise Amplifier
Brand:Texas Instruments
Dual Supply Voltage:+/- 9 V, +/- 12 V
en - Input Voltage Noise Density:3.5 nV/sqrt Hz
Height:4.57 mm
In - Input Noise Current Density:2.5 pA/sqrt Hz
Length:9.81 mm
Maximum Dual Supply Voltage:+/- 15 V
Minimum Dual Supply Voltage:+/- 5 V
Operating Supply Voltage:10 V to 30 V, +/- 5 V to +/- 15 V
Product:Operational Amplifiers
Supply Type:Single, Dual
Technology:Bipolar
Voltage Gain dB:100 V/mV
Width:6.35 mm
