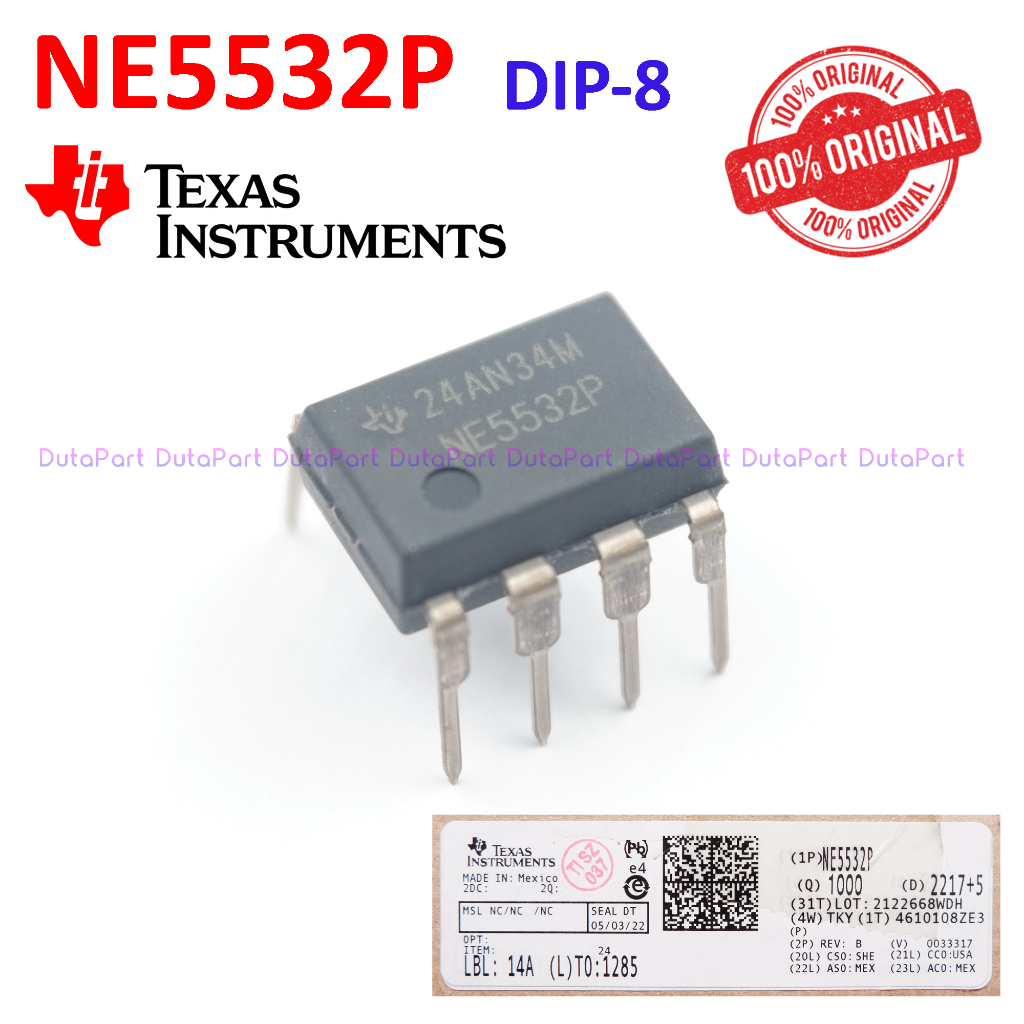

NE5532P NE5532 ORIGINAL TEXAS INSTRUMENTS NE 5532 ORI Op Amps DIP-8

Detail NE5532P NE5532 ORIGINAL TEXAS INSTRUMENTS NE 5532 ORI Op Amps DIP-8

NE5532 NE5532P ORIGINAL TEXAS INSTRUMENTS NE 5532 ORI Op Amps DIP-8

*** Minimal Pemesanan Adalah Rp.20.000, Belum Termasuk Ongkir (Bisa di gabung dengan barang lain). ***

Barang sama/sesuai dengan foto diatas (Difoto oleh team toko kami).

ORIGINAL TEXAS INSTRUMENTS - MADE IN MEXICO

Spesifikasi :
Manufacturer: Texas Instruments
Product Category: Operational Amplifiers - Op Amps
RoHS: RoHS
Mounting Style: Through Hole
Package/Case: PDIP-8
Number of Channels: 2 Channel
Supply Voltage - Max: 30 V
GBP - Gain Bandwidth Product: 10 MHz
Output Current per Channel: 38 mA
SR - Slew Rate: 9 V/us
Vos - Input Offset Voltage: 4 mV
Supply Voltage - Min: 10 V
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 70 C
Ib - Input Bias Current: 800 nA
Operating Supply Current: 8 mA
Shutdown: No Shutdown
CMRR - Common Mode Rejection Ratio: 100 dB
en - Input Voltage Noise Density: 5 nV/sqrt Hz
Series: NE5532
Packaging: Tube
Amplifier Type: Low Noise Amplifier
Brand: Texas Instruments
Dual Supply Voltage: +/- 9 V, +/- 12 V
Height: 4.57 mm
In - Input Noise Current Density: 2.7 pA/sqrt Hz
Length: 9.81 mm
Maximum Dual Supply Voltage: +/- 15 V
Minimum Dual Supply Voltage: +/- 5 V
Operating Supply Voltage: 10 V to 30 V, +/- 5 V to +/- 15 V
Product: Operational Amplifiers
Product Type: Op Amps - Operational Amplifiers

Untuk pembelian grosir atau info seputar hal teknis dan lainnya, Hubungi kami via Chat

Gambar produk
