NANO V3 ATmega328P CH340 Arduino Nano Compatible Nano ATmega328

Detail NANO V3 ATmega328P CH340 Arduino Nano Compatible Nano ATmega328

Hi #RekanEasyWare ...
EasyWare Part#: EP000059

Note:

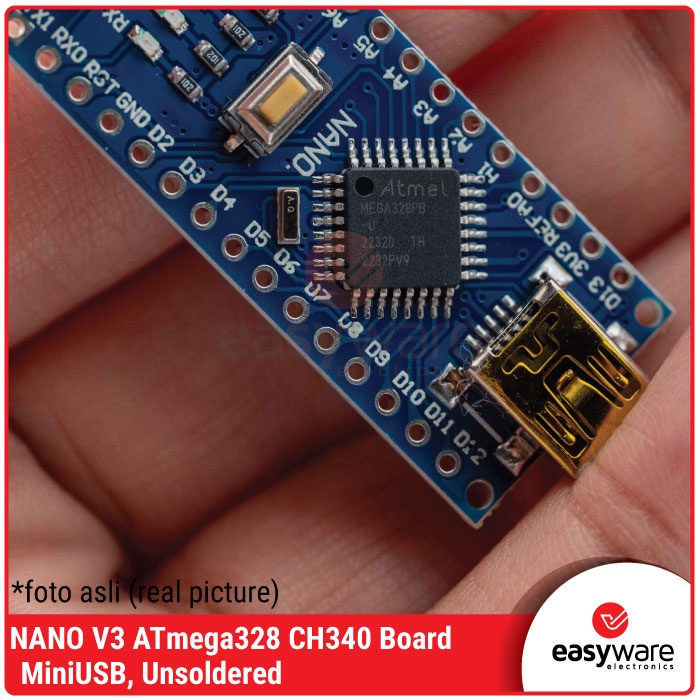

- Untuk stok terbaru, semua menggunakan ic ATmega328PB-U dengan versi lebih tinggi daripada ATmega328P-U.

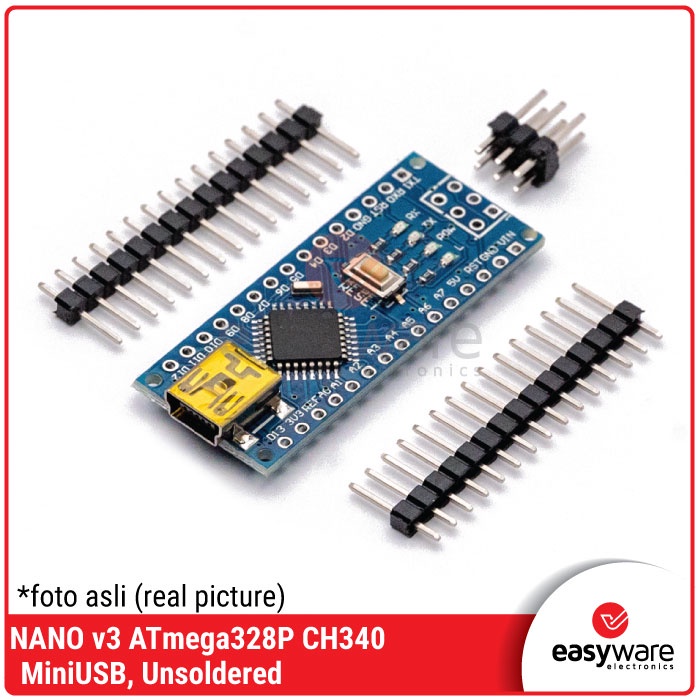

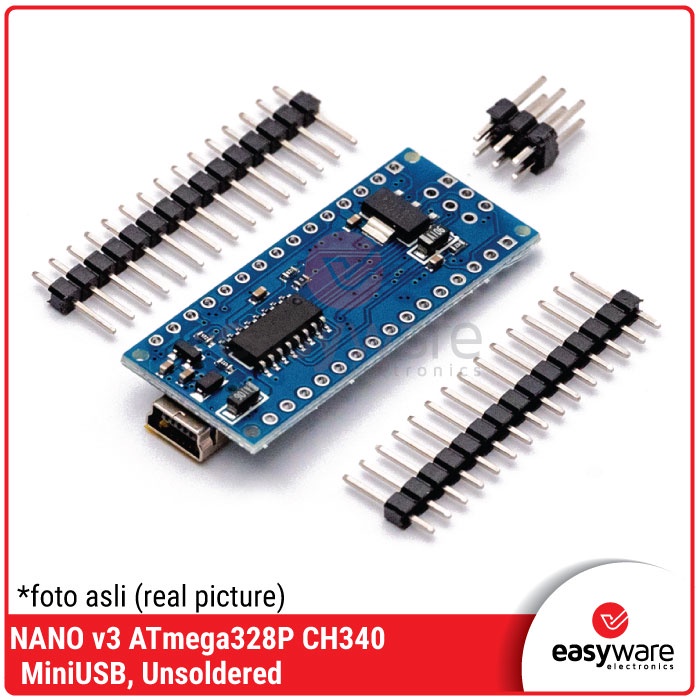

- Foto real picture.

Features:
- Automatic reset during program download
- Power OK blue LED
- Green (TX), Red (RX) and Orange (L) LED
- +5V to AREF Jumper
- Auto-sensing/switching power input
- Small mini-B USB for programming and serial monitor
- ICSP header for direct program download
- Power OK blue LED on the bottom
- Standard 0.1 spacing DIP (breadboard friendly)
- Manual reset switch

Spesifications:
- Microcontroller: Atmel ATmega328
- Operating Voltage (logic level): 5V
- Input Voltage (recommended): 7-12V
- Input Voltage (limits): 6-20V
- Power Consumption: 19mA
- Digital I/O Pins: 14 (of which 5 provide PWM output)
- Analogue Input Pins: 8
- DC Current per I/O Pin: 40mA
- Flash Memory: 32KB (of which 2KB is used by the bootloader)
- SRAM: 2KB
- EEPROM: 1KB
- Clock Speed: 16MhZ
- Colour: Blue
- Dimensions: 0.70 x 1.70
- Weight: 7g
- Application: Great for DIY projects

Package:
- 1x ARDUINO NANO 3.0 ATMEL ATMEGA328 MINI-USB BOARD

Gambar produk
