Note: - NANO V3 ini merupakan alternatif murah dari ATmega328P, karena memiliki memori yang kecil dengan harga lebih murah. - Foto asli - Harga belum termasuk kabel miniusb

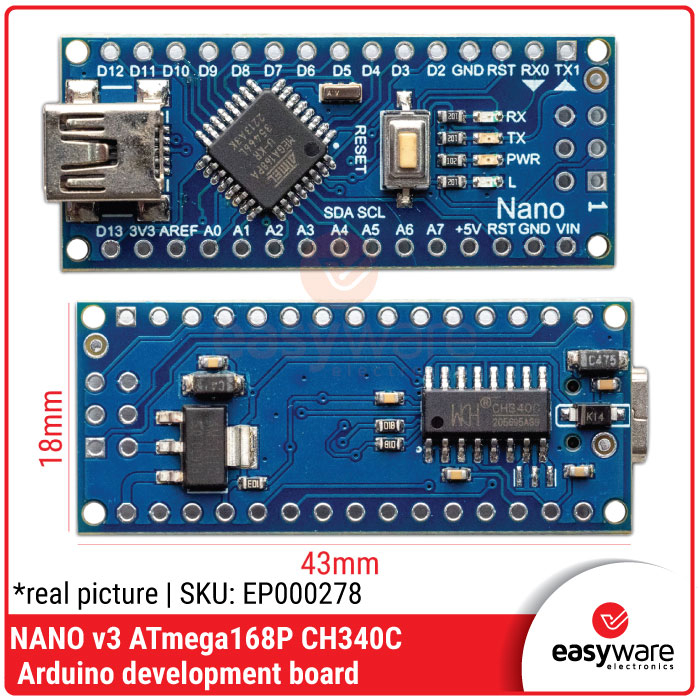

The board uses a chip CH340G as converter UART-USB. Chip CH340G - is a budget solution. With an operation frequency in 12Mhz, yields stable result of a data interchange (for correct installation of drivers on the computer follow the instruction). Nano V3, can be powered via MiniUSB-port (up to 500mA). External power supply 6-12V unregulated to output VIN, or 5V external power source to a regulate output of 5V. The power supply is automatically selected with the maximum voltage value.
Spesifications: - Nano V3 form-factor, - ATmega168 (16Mhz) microcontroller - CH340G - USB-UART interface - Input voltage 6-12V - Output voltage 5V/800mA, 3.3V/180mA (Only in NEW vesrion) - Mini USB - connection socket - 500mA resetable Fuse on USB port

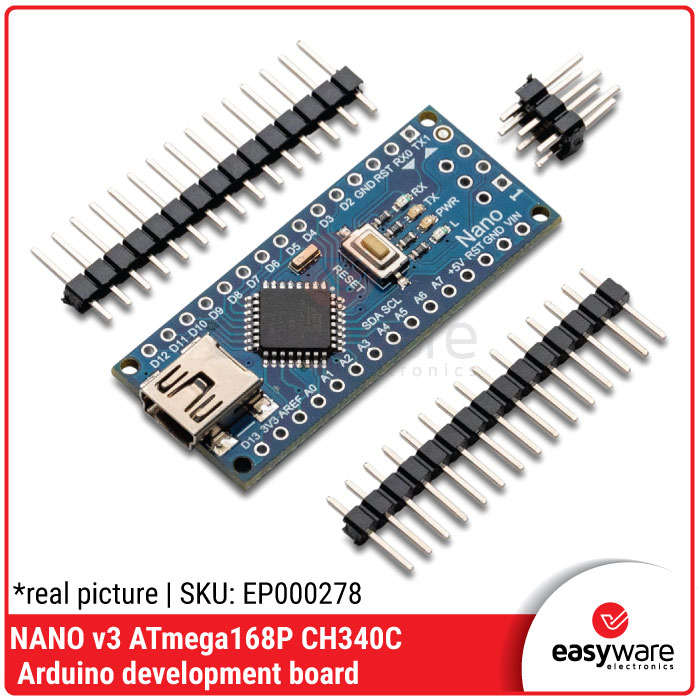

Package: - 1x Nano V3.0 ATmega168 CH340G mini USB compatibile for Arduino NANO
