Nano V3.0 Controller for Arduino ATMEGA328P 16Mhz CH340 USB driver

Perlengkapan Rumah > Perlengkapan Rumah Lainnya > Nano V3.0 Controller for Arduino ATMEGA328P 16Mhz CH340 USB driver
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:Pi Digital MedanLihat semua produk Perlengkapan Rumah oleh Pi Digital Medan
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail Nano V3.0 Controller for Arduino ATMEGA328P 16Mhz CH340 USB driver

Nano V3.0 Controller for Arduino ATMEGA328P 16Mhz CH340 USB driver

Harga Tertera:
1 Pcs Nano 3.0 ATmega328 Mini-USB Board ( Size 43mm x 18mm ) kabel tidak termasuk

Features:
100% New, for Arduino-Compatible Board
Fully Compatible for Arduino for Nano V3.0 ATmega328P-AU
ATmega328 Microcontroller
Bootloader installed, ready to upload sketches from for Arduino software
Microcontroller ATmega328P-AU
Operating Voltage 5V
Input Voltage (recommended) 7V-12V
Input Voltage (limits) 6V-20V
Digital I/O Pins 14 (of which 6 provide PWM output)
Analog Input Pins 8
DC Current per I/O Pin 40 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 32 KB (ATmega328) of which 2 KB used by bootloader
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz

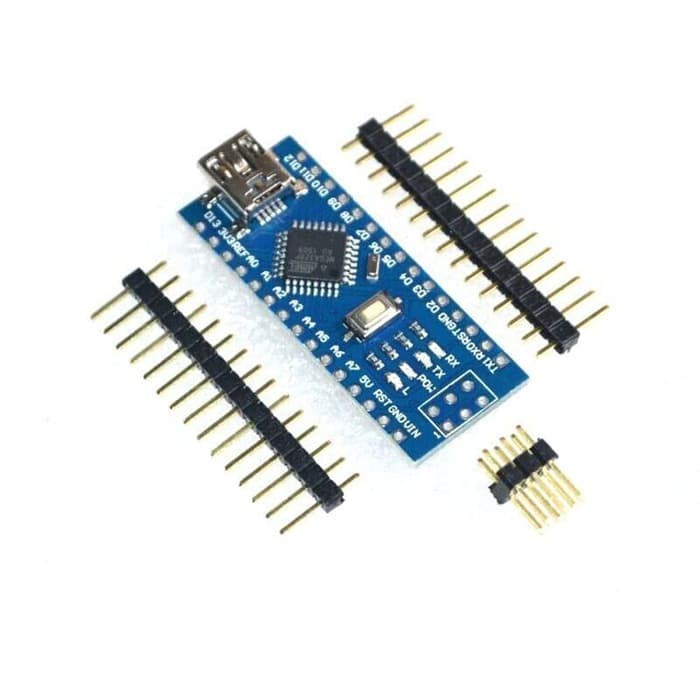

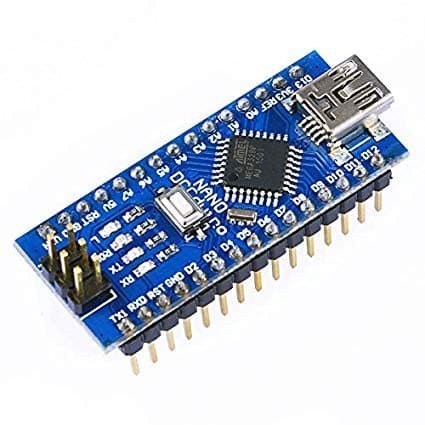

Gambar produk

Nano V3.0 Controller for Arduino ATMEGA328P 16Mhz CH340 USB driver
Nano V3.0 Controller for Arduino ATMEGA328P 16Mhz CH340 USB driver
Nano V3.0 Controller for Arduino ATMEGA328P 16Mhz CH340 USB driver
Nano V3.0 Controller for Arduino ATMEGA328P 16Mhz CH340 USB driver
Lihat lebih banyak informasi produk
