Detail Nano Station Loco M5 (Locom5)

The original NanoStation set the bar for the world's first low-cost and efficiently designed outdoor broadband CPE. The new NanoStation M and NanoStation Loco M take the same concept to the future with new redesigned sleek and elegant form-factors.

150+ Mbps real outdoor throughput and up to 15km+ range. Featuring 2x2 MIMO technology, the new NanoStation links significantly faster and farther than ever before.

Features
Processor Atheros MIPS 24KC, 400MHz
Memory 32MB SDRAM, 8MB Flash
Networking 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet
TX Power 11a: 6-24 Mbps 23 dBm, 54 Mbps 18 dBm
11n: MCS0 23 dBm, MCS15 17 dBm
Receive Sensitivity 11a: 6-24 Mbps -83 dBm, 54 Mbps -75 dbM
11n: MCS0, -96 dBM, MCS15 -75 dBm
Antenna Gain 13 dBi Dual Linear
Cross Polarity Isolation 20 dB min
Horizontal beamwidth 45 / 45
Vertical beamwidth 45
Power supply 24V, 1A POE
Power Method Passive Power over Ethernet (pairs 4, 5+; 7, 8 -)
Max power consumption 6.5 Watts
Enclosure Characteristics Outdoor UV Stabilized Plastic
Mounting Pole Mounting Kit included
Size 163 x 31 x 80 mm
Weight 900 gms
Operating Temperature -30C to 75C
Operating Humidity 5 to 95% Condensing

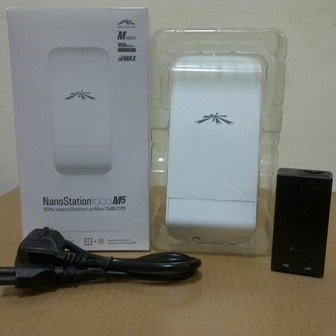

Gambar produk
