Nakamichi SQR30F Intelligent Power Supply Sequencer SQR-30F

Detail Nakamichi SQR30F Intelligent Power Supply Sequencer SQR-30F

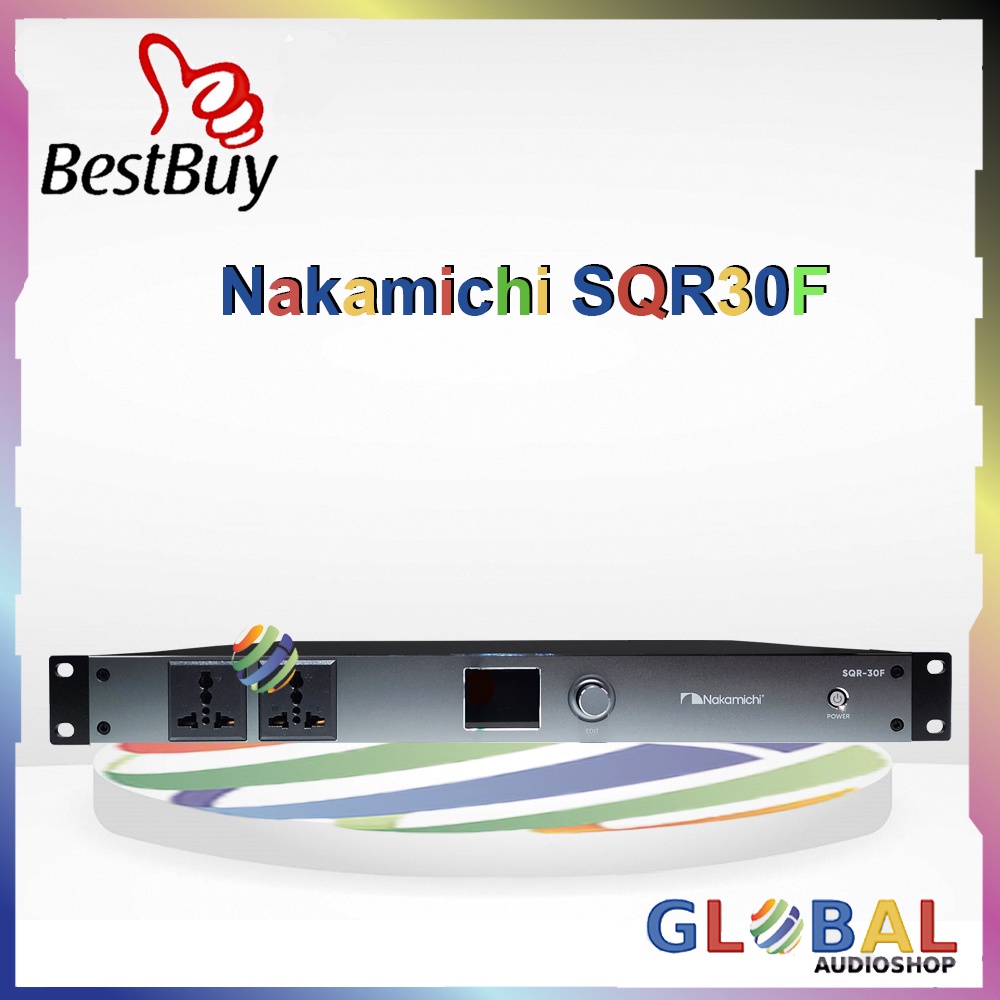

Nakamichi SQR 30F Intelligent Power Supplay Sequencer

This machine is a compact size, powerful intelligent timing device; it combines the functions of many conventional products in a single 1U rack height box.
• 2” colored LCD screen with real-time showing of the voltage, date, time, and the on/off date of each channel.
• 8 output channels, the delay time for switch on/off of channel can be set independently (range from 0~999 seconds).
• Support Lock function for panel, which avoids mis operation.
• Built-in clock chip, Automatic on/off can be set according to date and time.
• Multiple devices can be cascaded, can controlled sequenced. And the cascade can be detected automatically.
• Equipped with 232 ports, support external control, accomplish center remote control.
• 10 groups preset data can be saved/ loaded.
• Under-voltage, over-voltage detection and alarm.
• Network control interface function (supported on certain models only).


TECHNICAL PARAMETER
Item = Parameter
Filter = Yes
Rated output voltage = Alternating current 100V~240V, 50Hz
Output channels = 8 channels + 2 auxiliary output channels
Delay time = 0~999s
Status display = Real-time display voltage, date, time, and on/ off status
Rated current for each channel =13A
Rated total current = 30A
Timer function = Yes
Gross weight = 5.2kg / 6kg
Packaging dimension = 560 x 415 x 80mm
