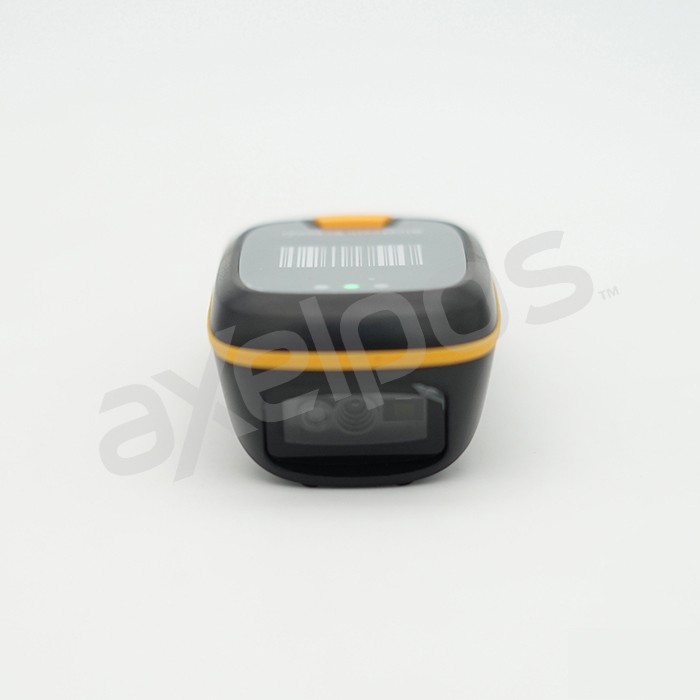

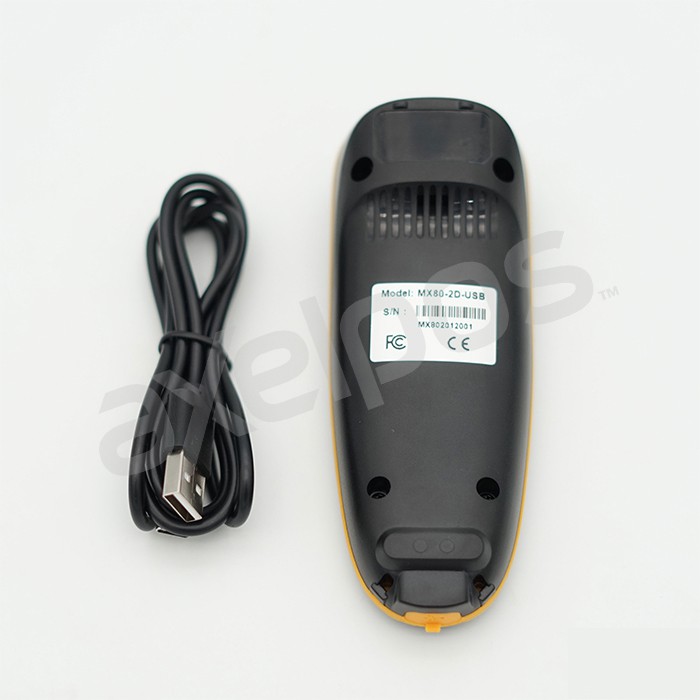

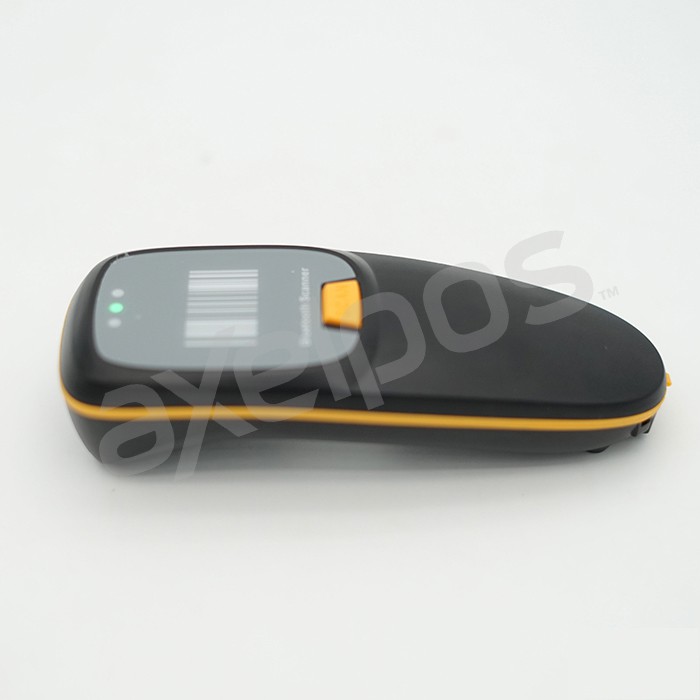

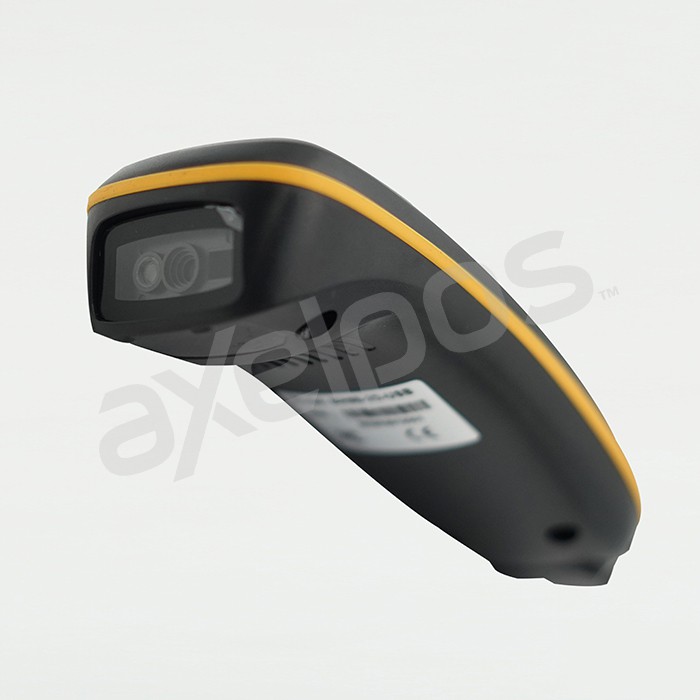

MX-80 1D/2D Pocket Portable Barcode Scanner (USB+Bluetooth+2.4G)

Detail MX-80 1D/2D Pocket Portable Barcode Scanner (USB+Bluetooth+2.4G)

● Don’t need any driver, plug and play.
● Read 1D and 2D code on screen and paper.
● Super battery capacity is up to 1500mAh.
● Charge time is 3 hours and continuous scanning time is 24hours.
● Support double firmware upgrade online: wireless and decoder.
● Communication model: 2.4G, bluetooth and typeC cable.
● Communication distance(open air) : 2.4G:100meters,Blutooth: 40meters.
● Smart body, unique and ergonomic design, comfortable operating sense.
● Three LED indicator : Green(decoder light) Red(charge light), Blue(Connection success).

OPERATIONAL PARAMETER

Image(Pixels) 640 pixels(H)*480 pixels(v)
Light Source Aiming:617 nm LED ;illumination:4000K LED
Image Sensor CMOS
Scan Speed 30fps/s
Depth of Field 40-200mm@UPC/EAN13mil PCS=90%; 20-250mm@QR 20mil PCS=100%
Scan Angle Elevation angle 65°/Tilt angle 30°/Declination 55°
Field of view 34° horizontal, 28° vertical
Read Resolution ≧4 mil
Print Contrast ≧ 25%
Visual Indicator Blue LED Light,Red charge light and Buzzer
Communication model 2.4G , blue BLE4.0 and TypeC
Communication Distance 2.4G: 100meters (open air) ,Bluetooth: 40meters (open air)
Memory capacity: Up to 512000bits (35000 EAN 13 codes)
