Music Player MP3 Shield VS1053 Board With TF Card Slot for Arduino uno

Detail Music Player MP3 Shield VS1053 Board With TF Card Slot for Arduino uno

Description:

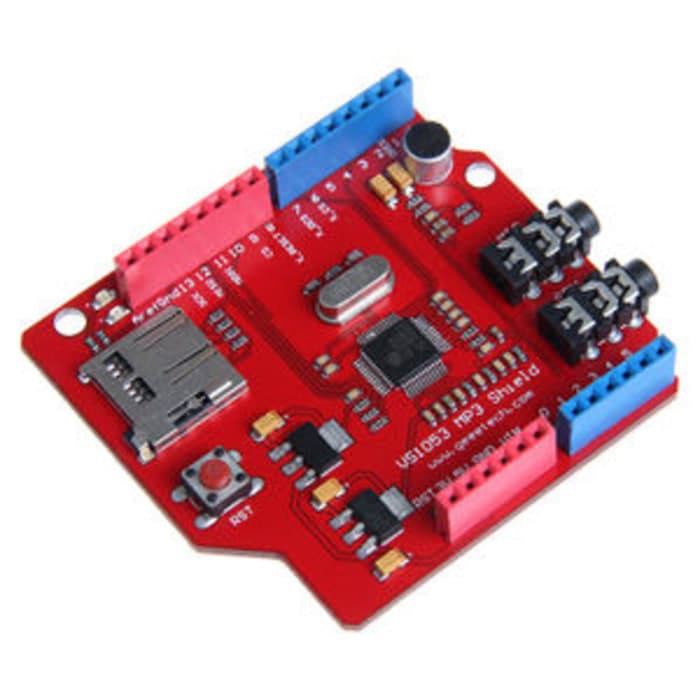

This MP3 shield board is designed based on VS1053B from VLSI.
using this shiled you can plug in your arduino UNO/MEGA direcly as showing in pic,
dont' need need to hook up with jumpers,
it's becomes more easy to play music compared with the tiny mp3 breakout board.
VS1053 is a versatile MP3 codec processor that is capable of decoding a variety of music formats,
including Ogg Vorbis/MP3/AAC/WMA/MIDI audio.
For the best headphone listening experience,
the VS1053 includes EarSpeaker spatial processing which
accurately simulates how a room with stereo loudspeakers would sound.
In addition to being able to decode all major formats,
VS1053 is capable of recording in Ogg Vobis file.

Features
Can play a variety of music formats, support for OGG encoding real-time recording
SPI interface, the control signal lines are led out
A headphone and stereo output
A microphone for recording
A line_in input interface
Power indicator
3.3V and 2.8V of LDO chip AMS-1117 on board, provides up to 800mA current
A single power supply: +5 VDC
12.288 Mhz crystal
TF card slot

Decodes formats
Ogg Vorbis
MP3 = MPEG 1 & 2 audio layer III (CBR+VBR+ABR)
MP1 & MP2 = MPEG 1 & 2 audio layers I & II optional
MPEG4 / 2 AAC-LC(+PNS), HE-AAC v2 (Level 3) (SBR + PS)
WMA4.0/4.1/7/8/9 all profiles (5-384 kbps)
FLAC lossless audio with software plugin (upto 24 bits, 48 kHz)
WAV (PCM + IMA ADPCM)
General MIDI 1 / SP-MIDI format 0


Package included:
1 x MP3 Music VS1053B shield board with TF card slot work with Arduino UNO MEGA

tutorial: http://www.geeetech.com/wiki/index.php/Arduino_MP3_shield_board_with_TF_card
