Muscle Signal Sensor V3 EMG Development Kit Otot detection for arduino

Detail Muscle Signal Sensor V3 EMG Development Kit Otot detection for arduino

Muscle Signal Sensor EMG Sensor

Product Description:
Granted, using our muscles to control things is the way that most of us are accustomed to doing it. We push buttons, pull levers, move joysticks but what if we could take the buttons, levers and joysticks out of the equation? Thats right, take the electrical signal straight from the muscle and put it into your device. Thanks to shrinking amplifier technology, we can now do exactly that!
Measuring muscle activity by detecting its electric potential, referred to as electromyography (EMG), has traditionally been used for medical research. However, with the advent of ever shrinking yet more powerful microcontrollers and integrated circuits, EMG circuits and sensors have found their way into all kinds of control systems.
This sensor will measure the filtered and rectified electrical activity of a muscle; outputting 0-Vs Volts depending the amount of activity in the selected muscle, where Vs signifies the voltage of the power source. Its that easy: stick on a few electrodes, read the voltage out and flex some muscles!
This kit comes with everything you need to start sensing muscle activity with your Arduino or controller of choice.

Dimensions: 1.0 x 1.0

Features:
Small Form Factor
Specially Designed For Microcontrollers
Adjustable Gain
3.5mm Connector
Breadboard Compatible
Power supply voltage: min. +-3.5V

User Manual
Schematic
Arduino Example Code
Processing Example Code
Fabric Electrode Tutorial
Iron Man Armor Tutorial
Replacement Electrodes
Product Video

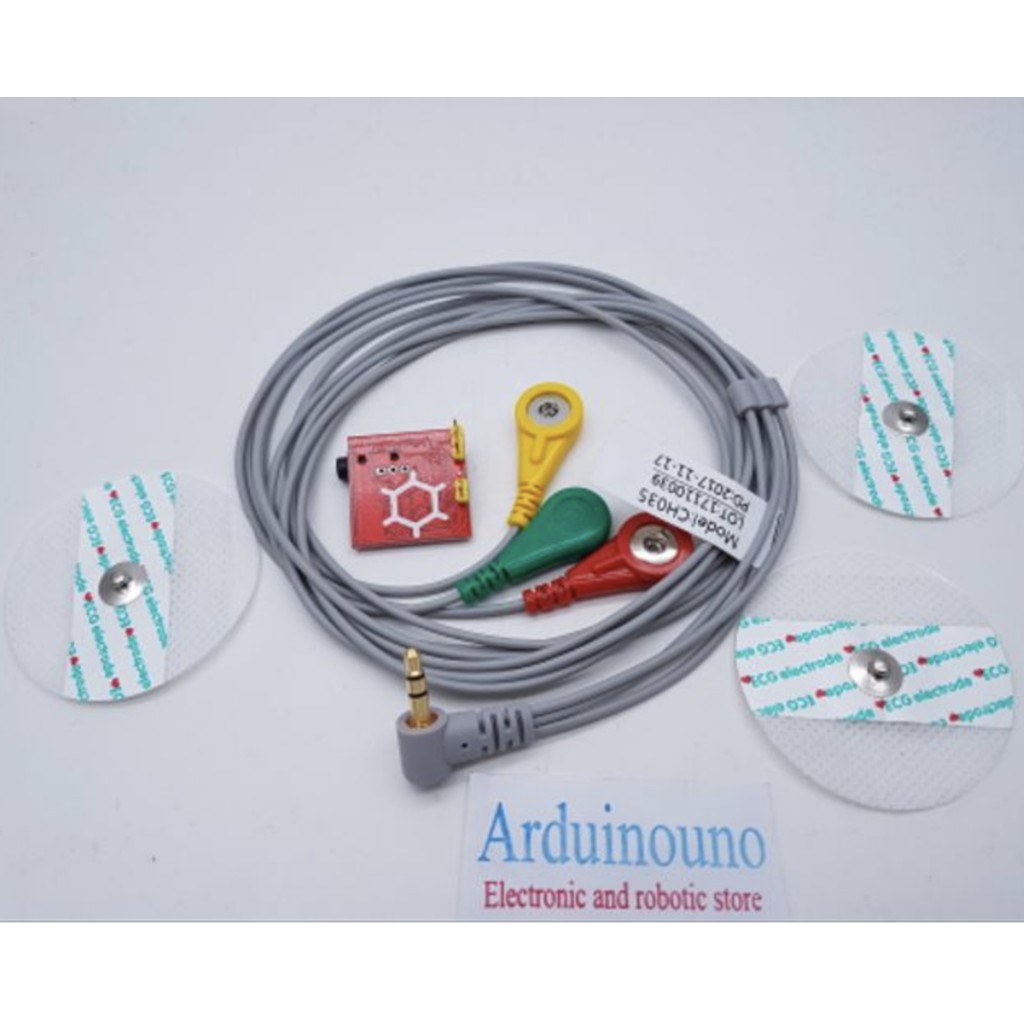

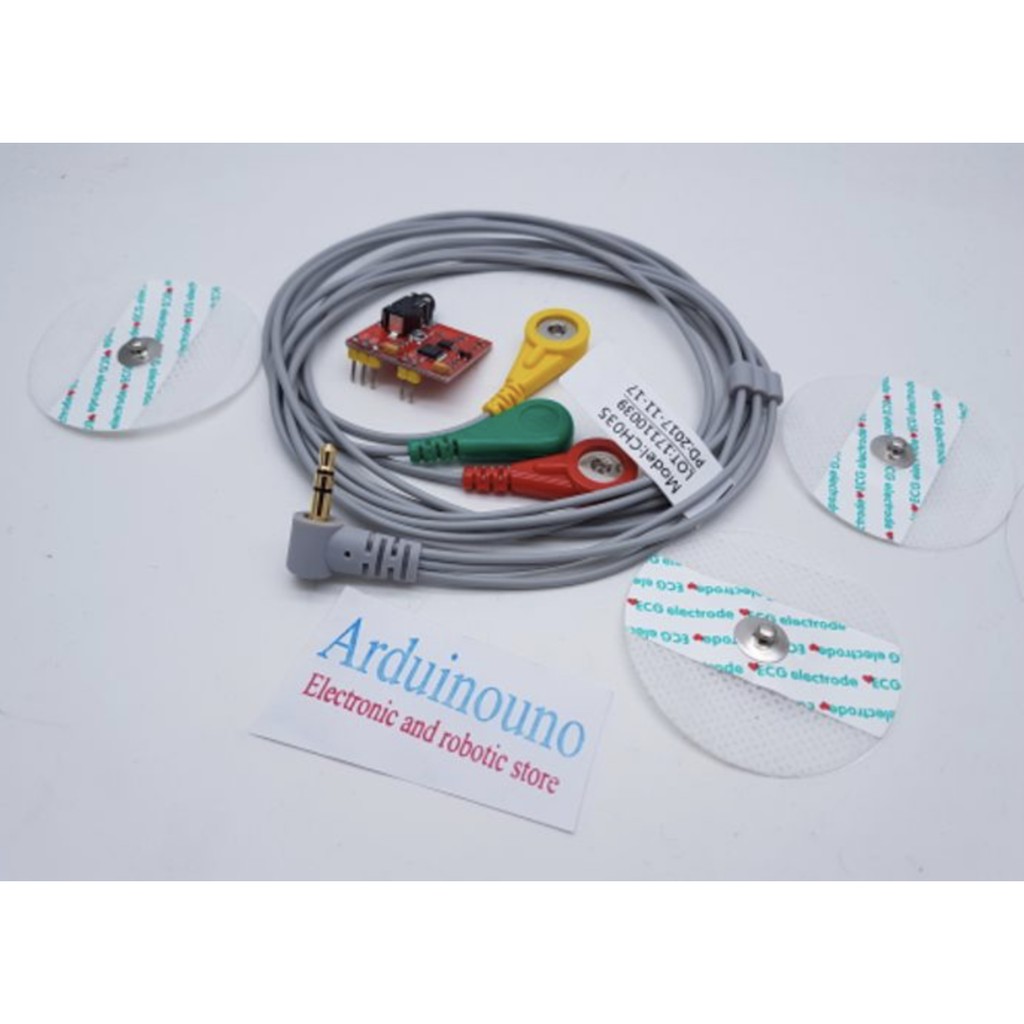

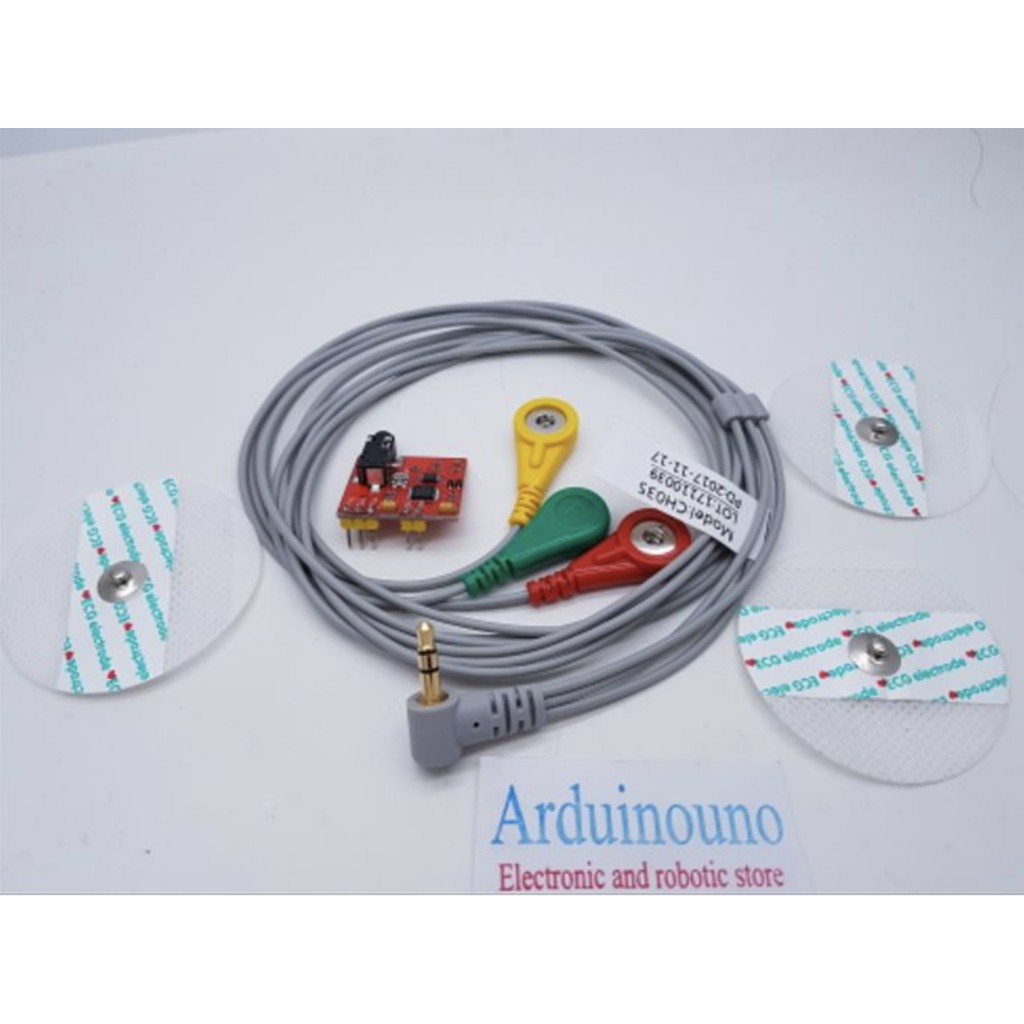

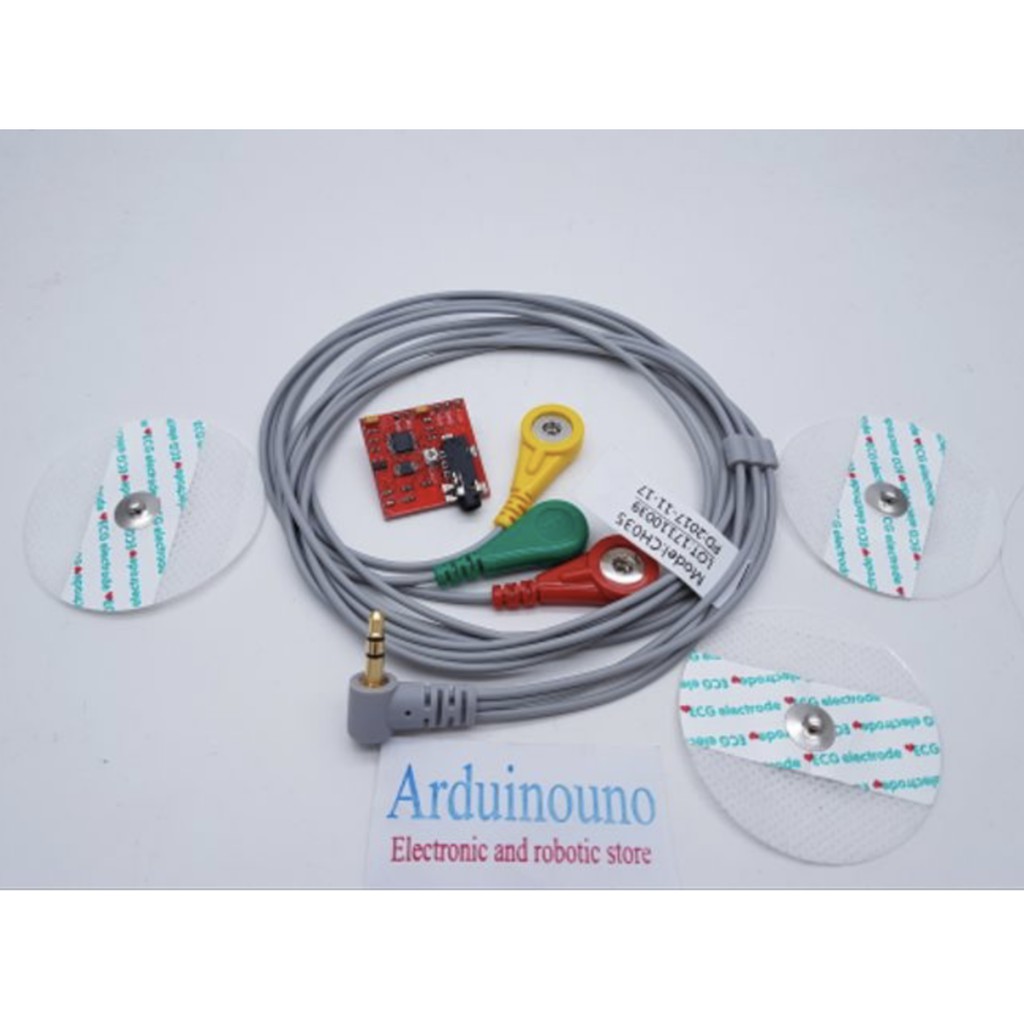

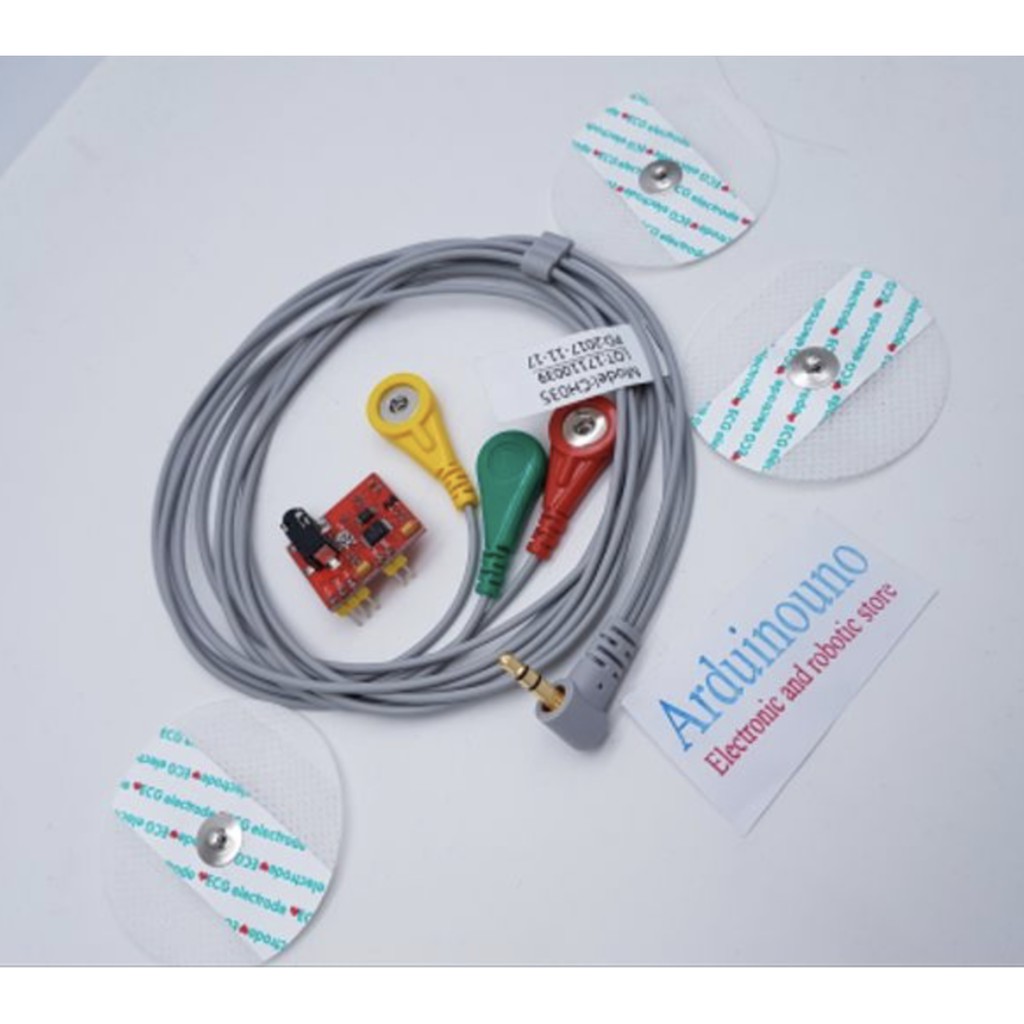

Gambar produk
