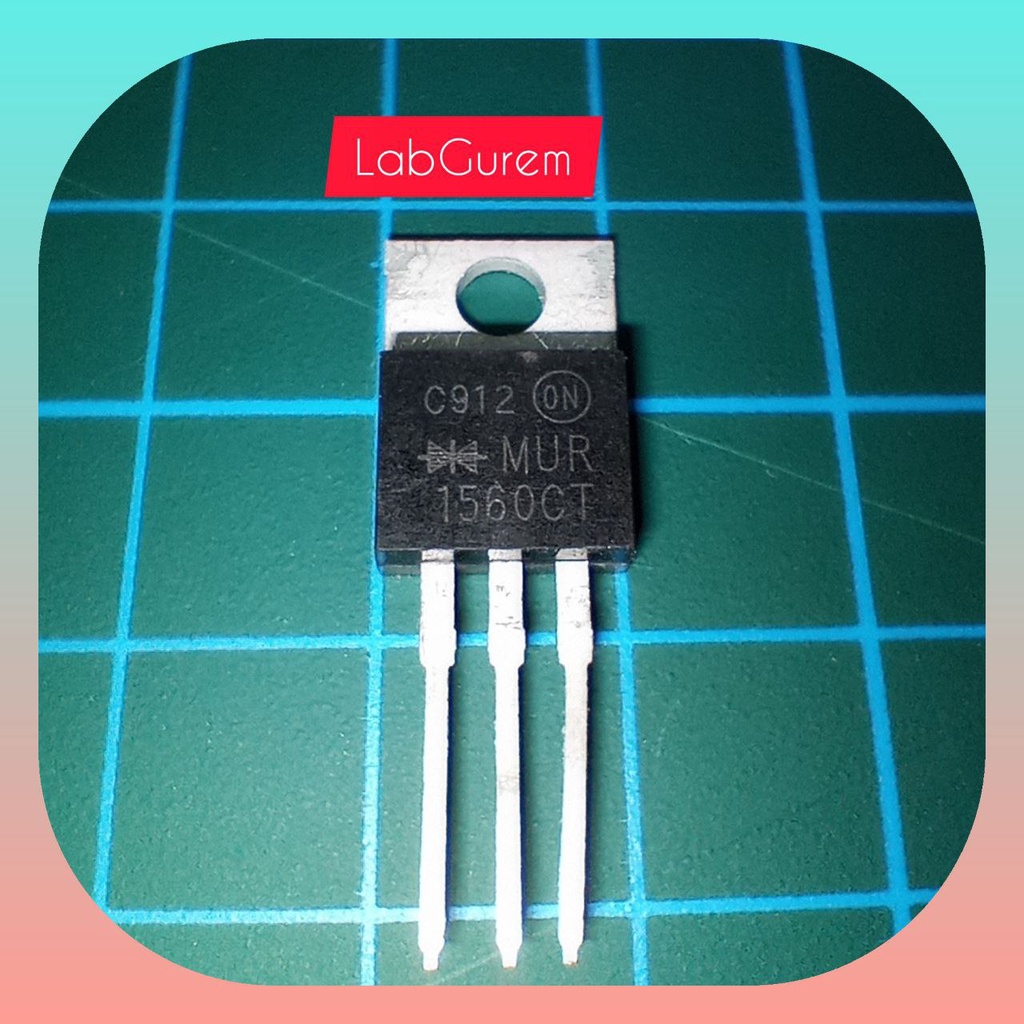

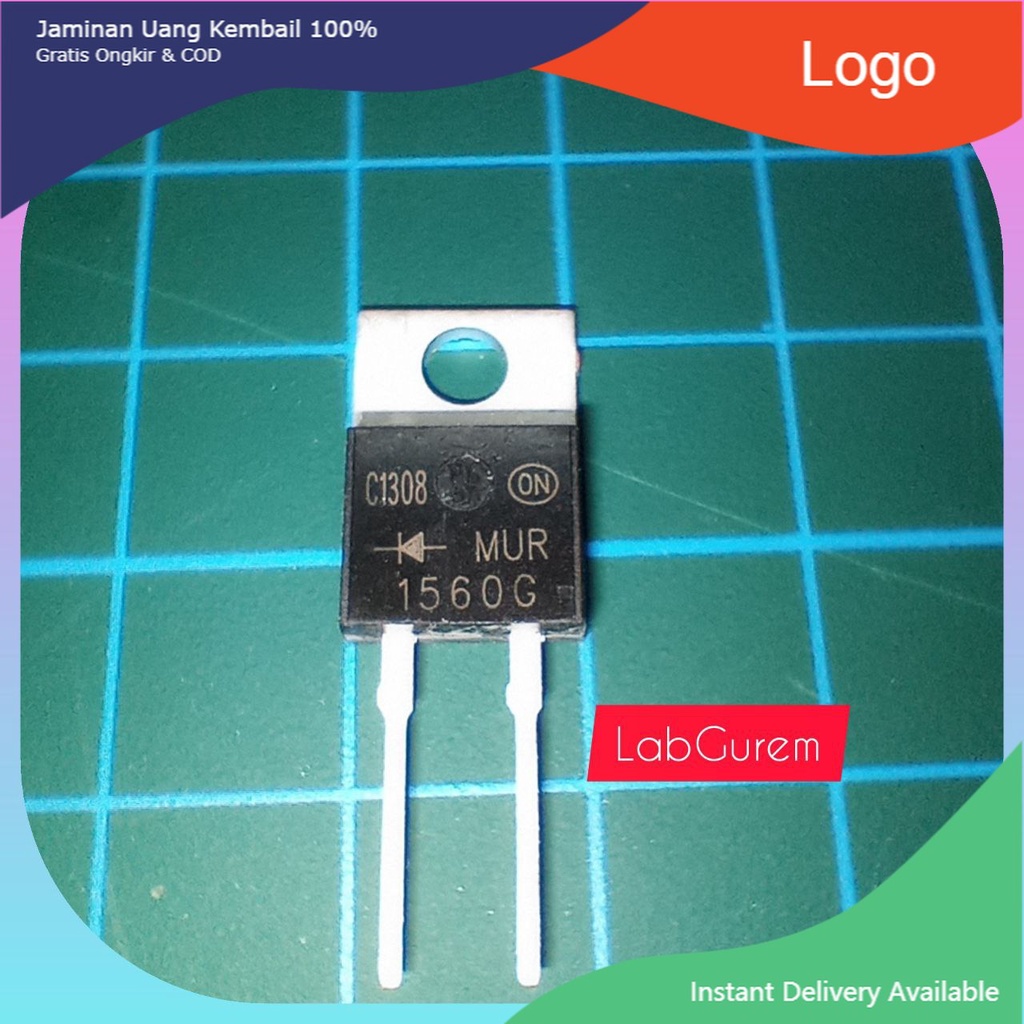

Detail MUR1560 MUR 1560 600V Ultra Fast Rectifier Recovery Diodes diode dioda

Product Category: Rectifiers
Mounting Style: Through Hole

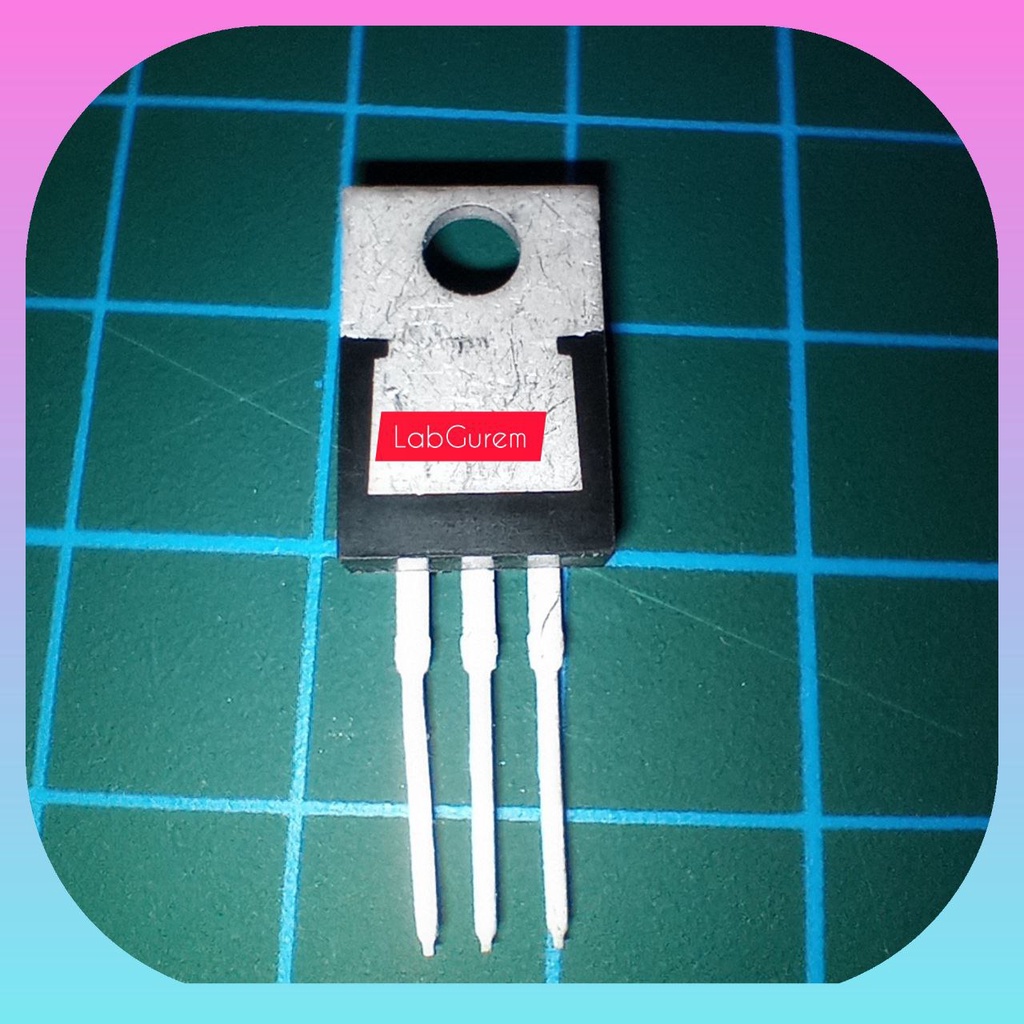

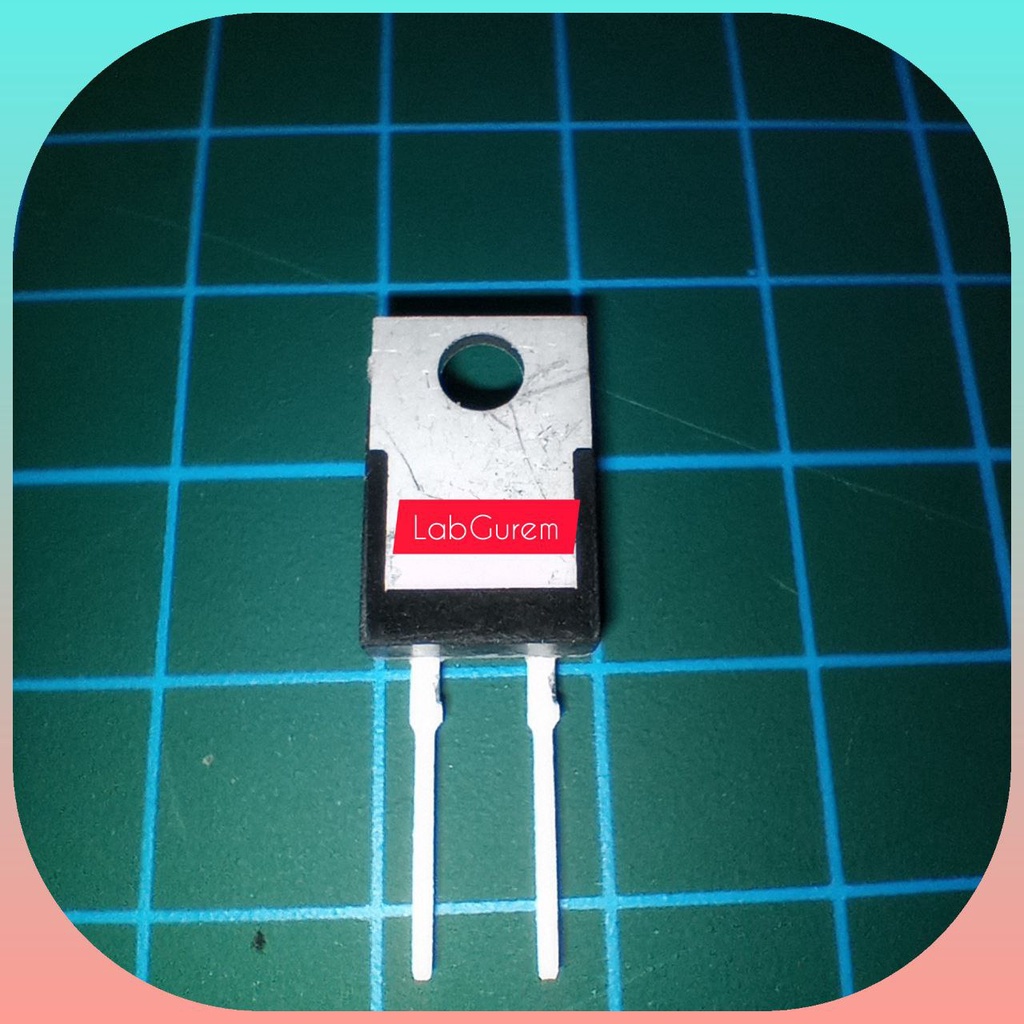

Package / Case: TO-220-2
Vr - Reverse Voltage: 600 V
If - Forward Current: 15 A
Type: Fast Recovery Rectifiers
Configuration: Single
Vf - Forward Voltage: 1.5 V
Max Surge Current: 150 A
Ir - Reverse Current: 10 uA
Recovery Time: 60 ns
Height: 9.19 mm (Max)
Length: 10.36 mm (Max)
Maximum Operating Temperature: + 175 C
Minimum Operating Temperature: - 65 C
Product: Rectifiers
Factory Pack Quantity: 50
Termination Style: Through Hole
Width: 4.9 mm (Max)
