Multitester Multimeter Heles Digital UX-879TR Original

Detail Multitester Multimeter Heles Digital UX-879TR Original

Multitester Multimeter Heles Digital UX-879TR Original

Brand : Heles

Operating temperature : 0 - 40 Celcius
Storage temperature : -10 - 50 Celcius
Power Supply : 9 Volt Battery
Weight : 280 Gram

Specs:
- Max Indication : 1999 counts (3 1/2 digits) with large LCD display
- Sampling rate : 2-3 times reading per second (approximate)
- Push-type Switch buttons respectively for data
- Hold-on(HOLD), LCD Back Lightning and Power On/Off
- Auto Power Off after 15 minutes if no working
- Single 32 range positions easy to use rotary switch for more 10 functions and measuring range selection
- High sensitivity of 100 uV
- Impedance : 10M Ohm on all DCV & ACV Range.
- Automatic over-range indication with "1" displayed
- Automatic low battery power (6,4V) indication with the mark of battery shape
- Automatic polarity indication on DC Range
- Diode testing with 1 mA fixed current
- Transistor hFE Test with ib- 10 uA
- Continuity test by beeper sounding below 50 Ohm
- Maximum common mode voltage : 500 V DC/AC rms
- Size : 175 x 82 x 40 mm

Measurement range :

- DC Voltage : 200mV, 2V, 20V, 200V, 1000V
- AC Voltage : 2V, 20V, 200V, 700V
- DC Current : 2mA, 200mA, 10A
- AC Current : 2mA, 200mA, 10A
- Resistance : 200Ohm, 2kOhm, 20kOhm, 200kOhm, 2MOhm, 20MOhm, 200MOhm
- Capacitance : 20nF, 200nF, 2uF, 200uF
- Temperature : 40 - 400 C, 400 - 1000C
- Frequency : 200 K Hz

Kelengkapan:
- Buku Petunjuk
- Kabel Tester
- Kabel Thermo
- Batere include

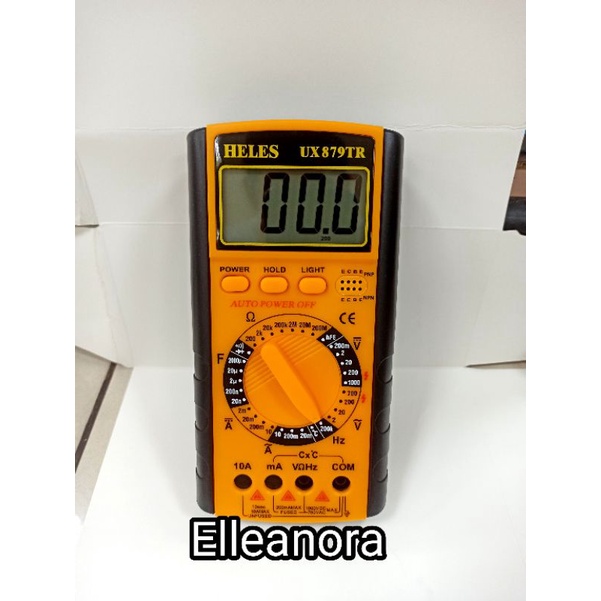

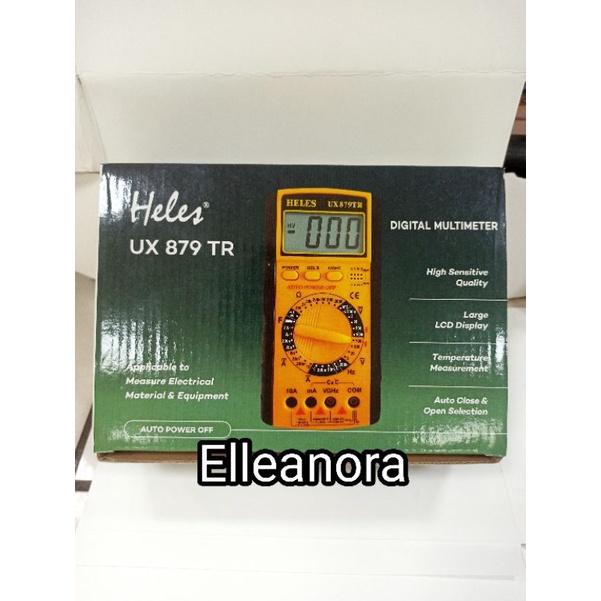

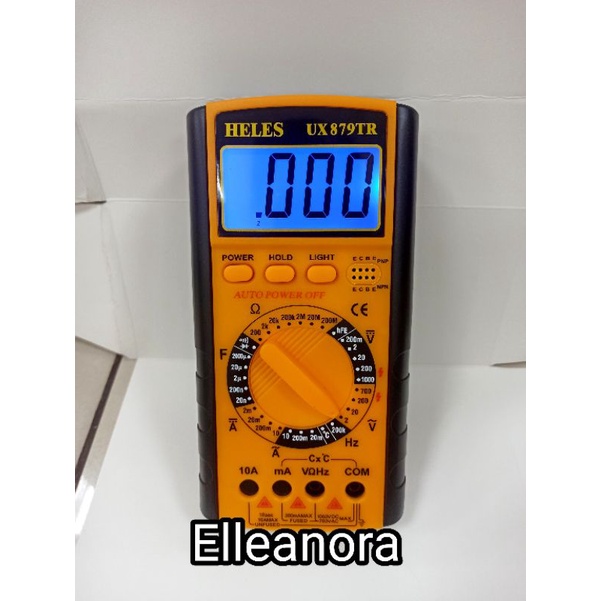

Gambar produk
