multitester digital zt100 zoyi

Detail multitester digital zt100 zoyi

ZOYI ZT100 Portable Auto-ranging Digital Multimeter - Black / Blue

Auto ranges
True RMS
550V protection in resistance, capacitance and frequency ranges
Large LCD display, max display 6000 counts
Sample rate: 3 times per second
Backlight
Data hold
Polarity identification
Low voltage indication
10A high current and low current measurement
Auto power off
Main measurements: AC/DC voltage, AC/DC current, resistance, capacitance
Diode and continuity testing, temperature, frequency and duty cycle
* Frequency: 1Hz to 10MHz
* Temperature: -20C to 1000C (-4F to 1832F)
* Capacitance: 10pF to 6000uF
* AC volts: 0.1mV to 750V
* DC volts: 0.1mV to 1000V
* AC current: 0.1uA to 10A
* DC current: 0.1uA to 10A
* Resistance: 0.1 to 60M
* Duty cycle: 1% to 99%

Specification:
Capacitance: 10nF(5.0+20),100nF/1uF/10uF/100uF(2.0%+5), 1000uF/10000uF(5.0%+5)
DC volts: 600mV(1.0%+10), 6V/60V/600V/1000V(0.5%+3)
AC volts: 600mV(3.0%+3), 6V/60V/600V/750V(1.0%+3)
DC current: 600uA/6000uA(1.5%+3), 60mA/600mA(1.5%+3), 10A(1.5%+3)
AC current: 600uA/6000uA(1.5%+3), 60mA/600mA(1.5%+3), 10A(1.5%+3)
Resistance: 600(0.5%+3), 6K/60K/600K/6M(0.5%+2), 60M(1.5%+3)
Temperature: 400 C (1.0%+5), 400C(1.5%+15) 752 F (1.0%+5), 752F(1.5%+15)
Frequency: 5/50/500/5k/50k/500k/5M/10M (0.1+3)
Duty cycle: 1% to 99% (1%)
Measurement mode: Double-integral style A/D transform
Over range indication: OL
Working environment: 0C~40C, relative humidity 80 %
Supply power: 3V (1.5V AAA batteries * 2 Pcs)
Size: 130 x 65 x 30mm
Weight: 130g

Package included:
1 x ZOYI Portable Auto-ranging Digital Multimeter
2 x Test Lead
2 x 1.5V AAA Battery
1 x Temperature Probe
1 x Pouch
1 x User Manual

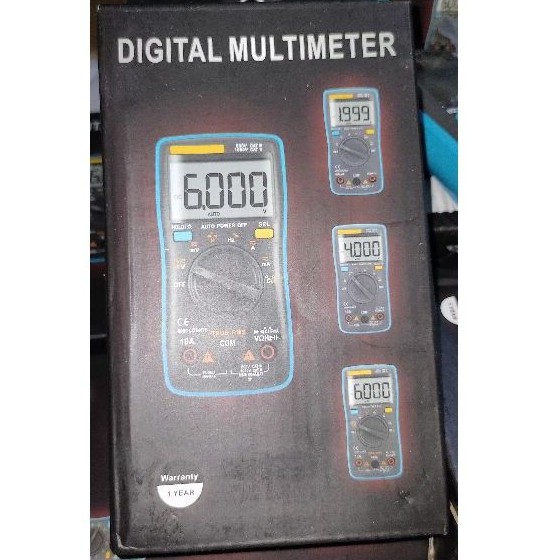

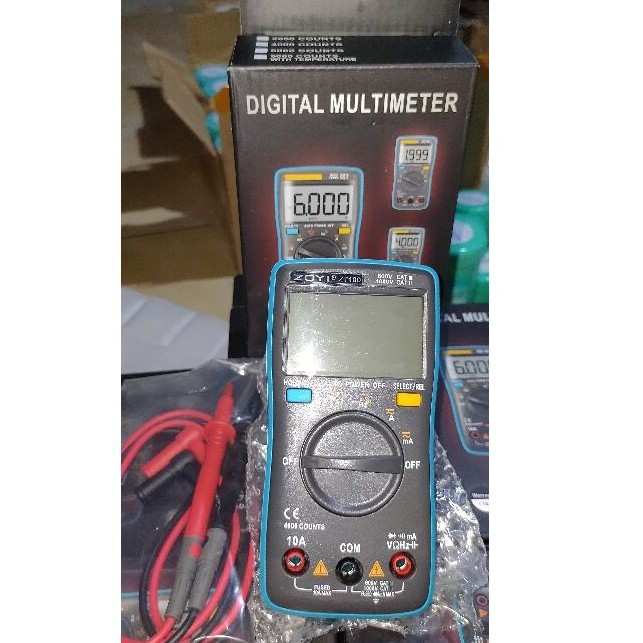

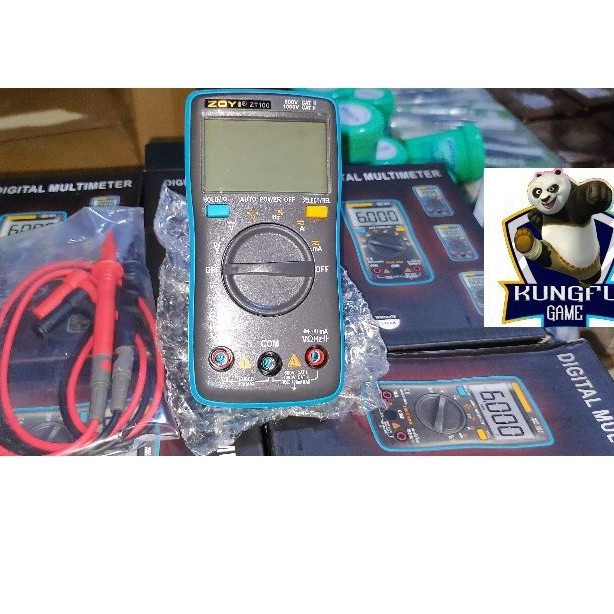

Gambar produk
