Multimeter Listrik Analog Multitester 360 TRN Pengukur Tegangan ampere
Merek: ROCIA | Lihat selengkapnya produk Elektronik dari ROCIADeskripsi singkat
Elektronik > Kelistrikan > Kelistrikan Lainnya > Multimeter Listrik Analog Multitester 360 TRN Pengukur Tegangan ampere
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait

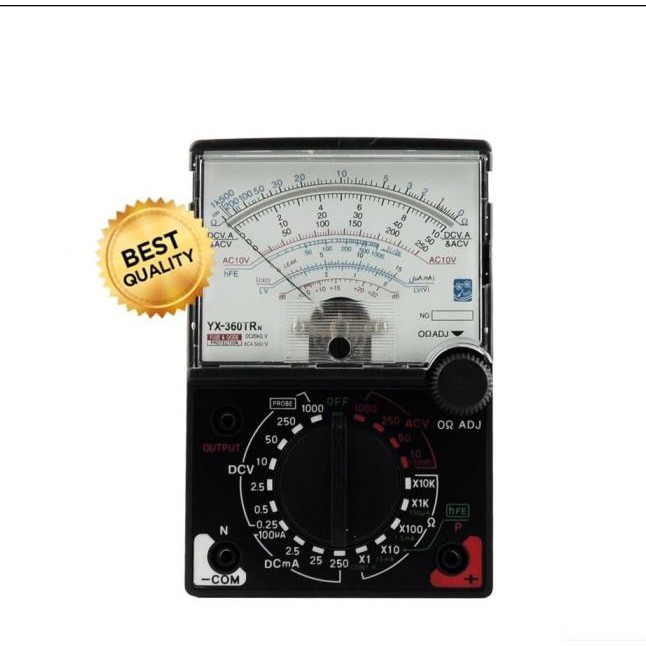

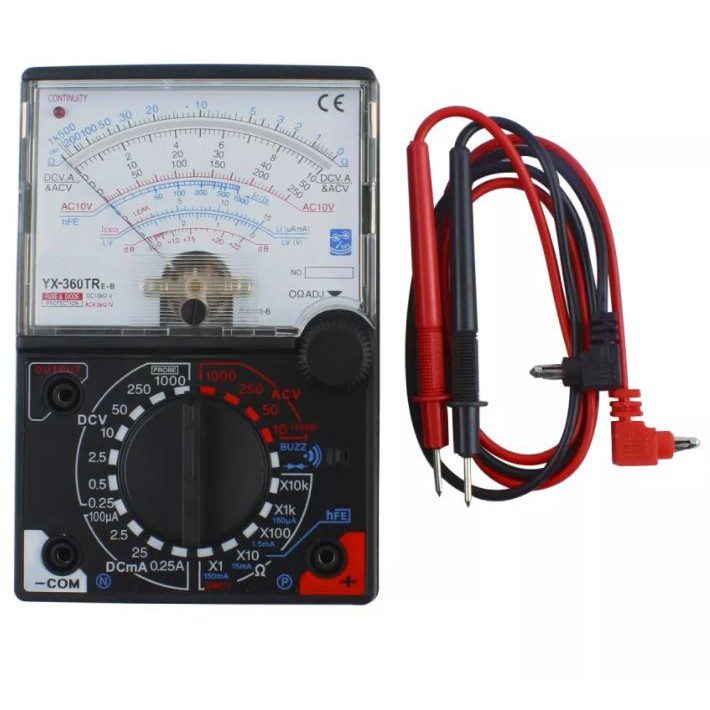

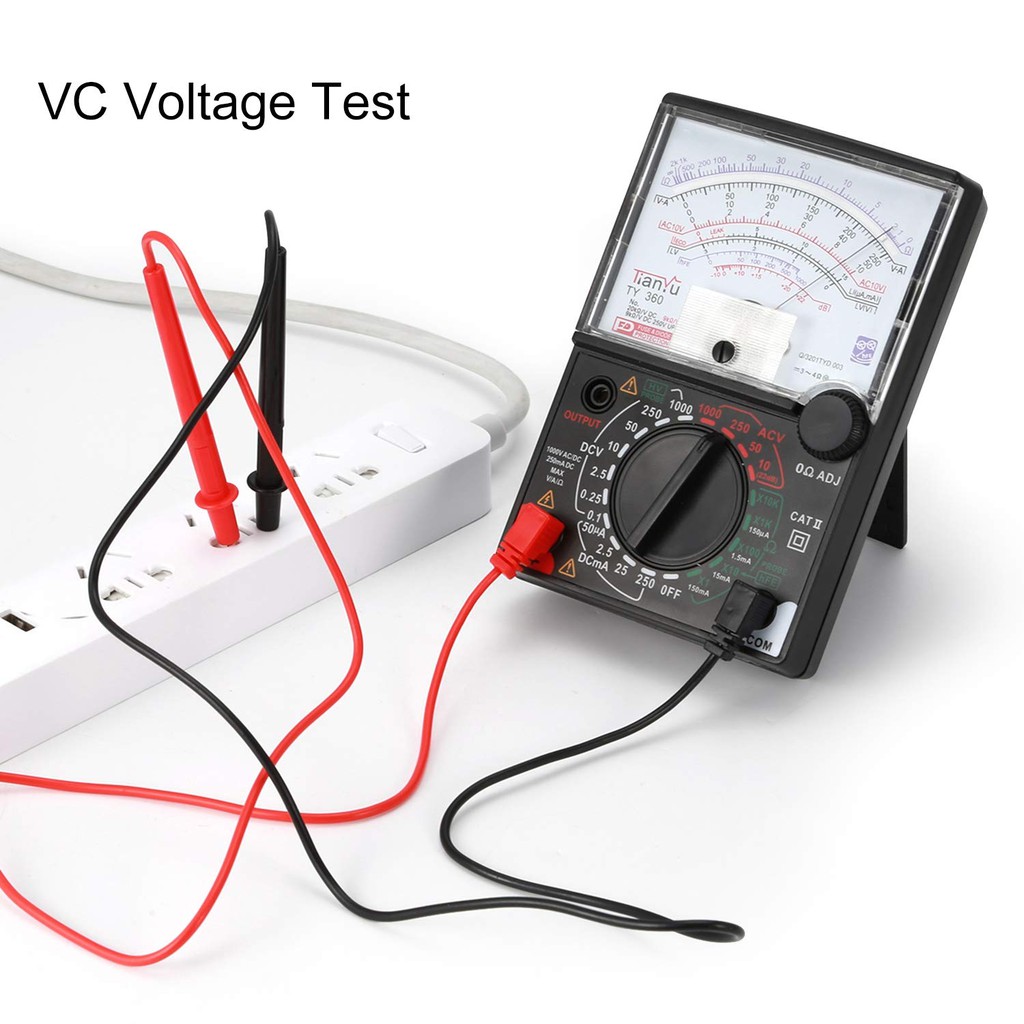

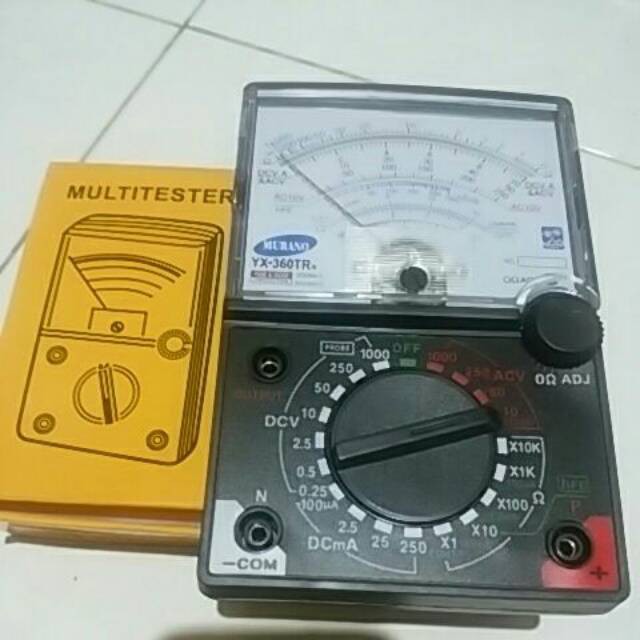

Detail Multimeter Listrik Analog Multitester 360 TRN Pengukur Tegangan ampere
Spesifikasi:MERK : MURANO
Overload protection circuit up to maximum 230V is provided.
Color: See Picture
DCV: 0.25 / 2.5 / 10 / 50 / 250 / 1000V
ACV: 10 / 50 / 250 / 100V
DCA: 0 - 0.5 - 50 - 500mA
Ohm Meter: X1 / x10 / x100 / x1K(2k /20k2M)
Decibels: -10dB to + 22dB (for 10VAC)
Intermal battery: 9V x 1 + 1.5V x 2（No Include）
OPERATION TEST:
Plug the test leads into COM and + sockets.
Place the range selector to a prescribed range position.
Short the test leads and turn 0A DJ to set the poin-ter to zero position.
Make sure that there is no voltagea crossthe circuit to be tested.
Connect the test leads to the tested resistor and read the scale in accordance with the reference table.
CONTINUITY TEST (BUZZ) Set the range selector knob to BUZZ,apply the test lead pins to two points to be tested and test continuity.Then the buzzer will buzz at between 0 and about 120 .It is impossible to test a point where voltage is being applied.
CONTINUITY TEST (LED). Set the range selectot to the"CONT'Y" position.Connect thetest leads to the tested circuit if the"LED" in the tester produce light ，that mean the tested circuit is continuous.
BELUM termasuk baterai
sudah mendapatkan 2 jarum kabel untuk tester
Gambar produk
