Multifunctional Battery Meter Pzem-015 PEACEFAIR Volt Amper Meter

Detail Multifunctional Battery Meter Pzem-015 PEACEFAIR Volt Amper Meter

Deskripsi Battery analyzer Feacefair PZEM-015 voltmeter ammeter batrai monitor
Description:

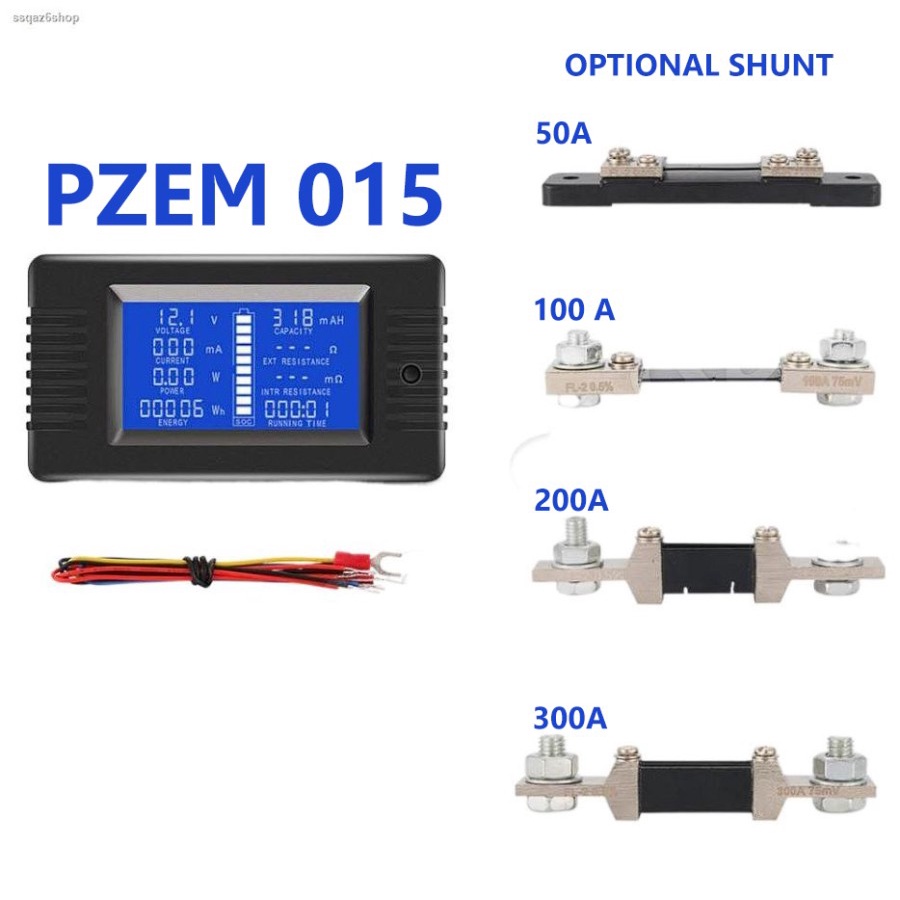

Feacefair PZEM-015 with 50A, 100A, 200A, 300A shunt

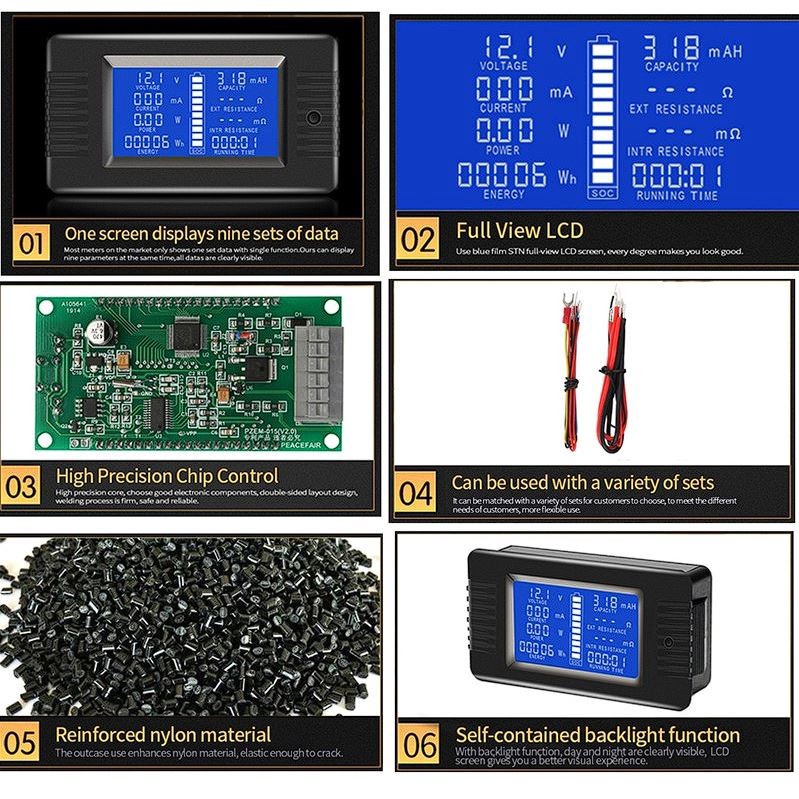

9 major functions
Full viewing angle LCD
Screwless installation

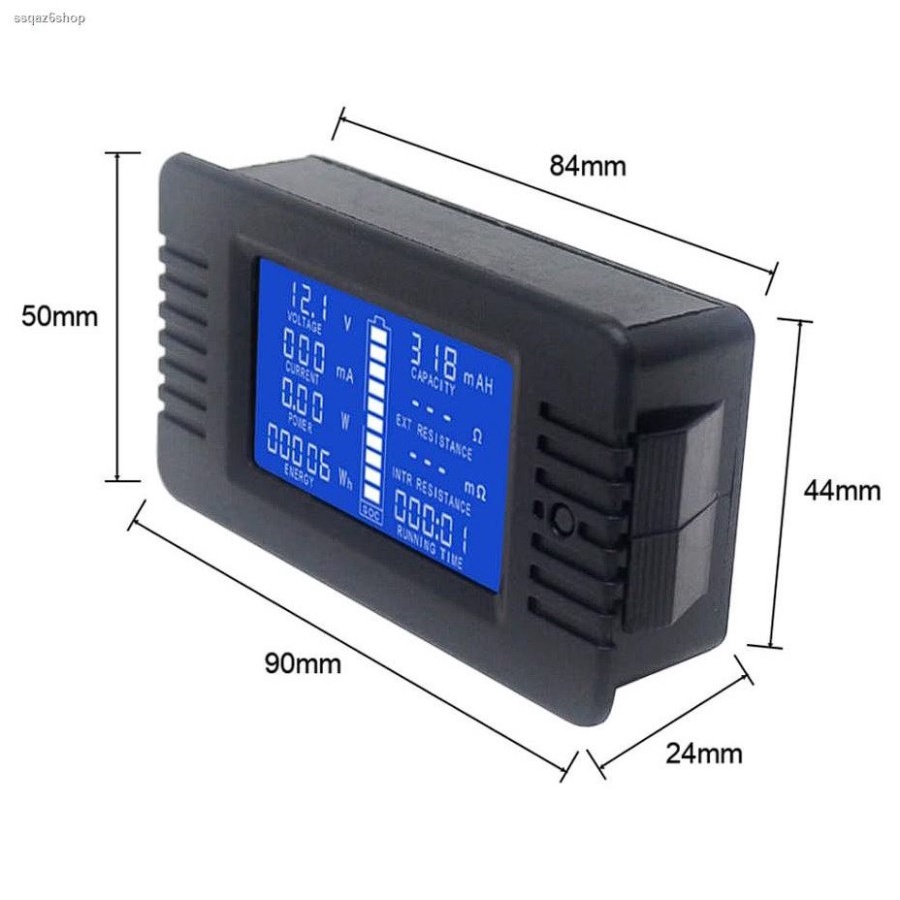

Size: 89.6x49.6x24.25mm
Display size: 51x30mm
This meter is mainly used to measure the voltage, discharge current, discharge power, discharge impedance, internal resistance, capacity, remaining power, energy consumption, running time of various types of batteries, and display measurement data through LCD.

Current : 0-300A ;1A shows 999mA
Voltage : 0-200V ;10V display 9.99V
Power : 0-60000W ;10W display 9.99W
Energy consumption : 0-9999kWh ;1kWh display 999Wh
Impedance : 0-1000 Ω ;100 Ω; shows 99.9 Ω
Capacity : 0-1000AH, 1AH shows 999mAH
Internal resistance : 0-999mΩ; format: 999mΩ
Running time range: 0-999 hours, format 0:00:00~999:59 (overflow to 0)
Remaining battery power: Displayed by the battery symbol, a total of 10 grids, each grid represents 10% of the electricity.

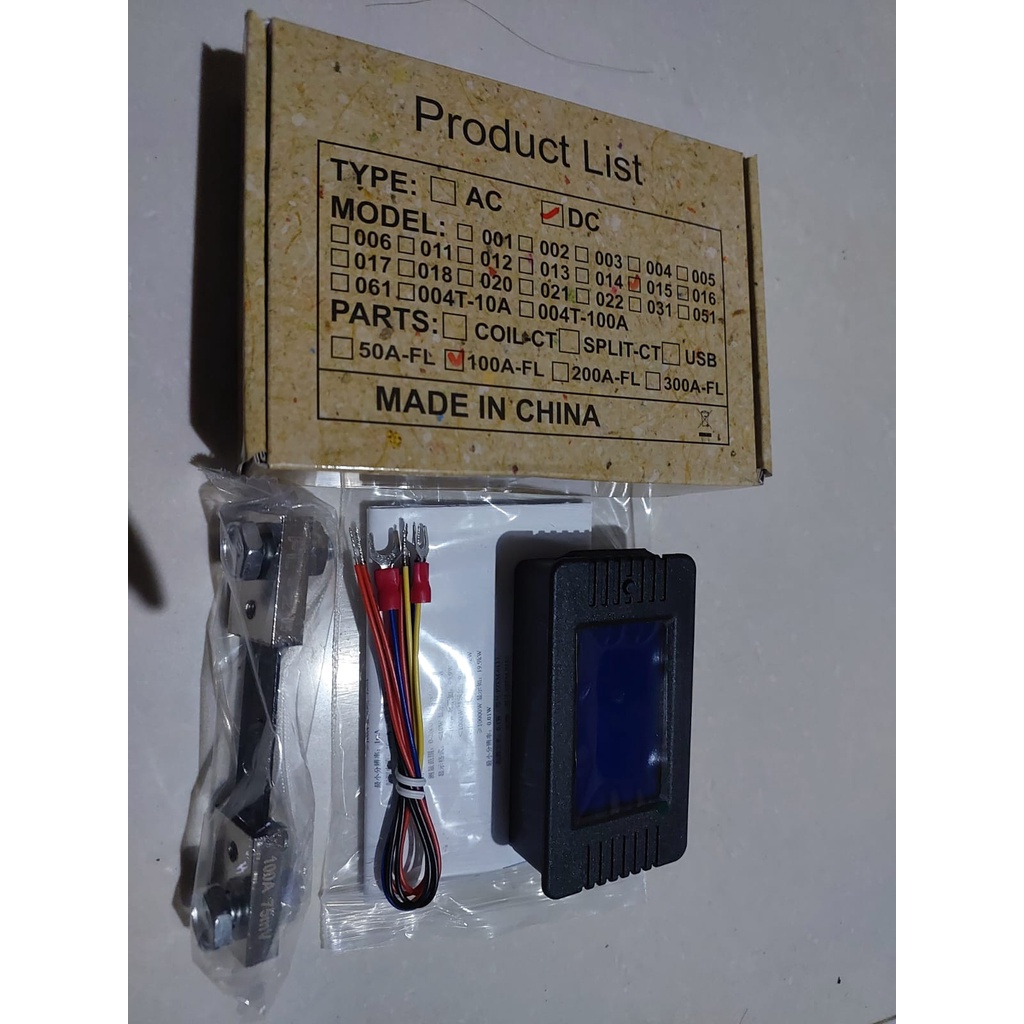

Package included:

1 x PZEM-015 Battery Tester
1 x 50/100/200/300A current shunt
1 x English manual
