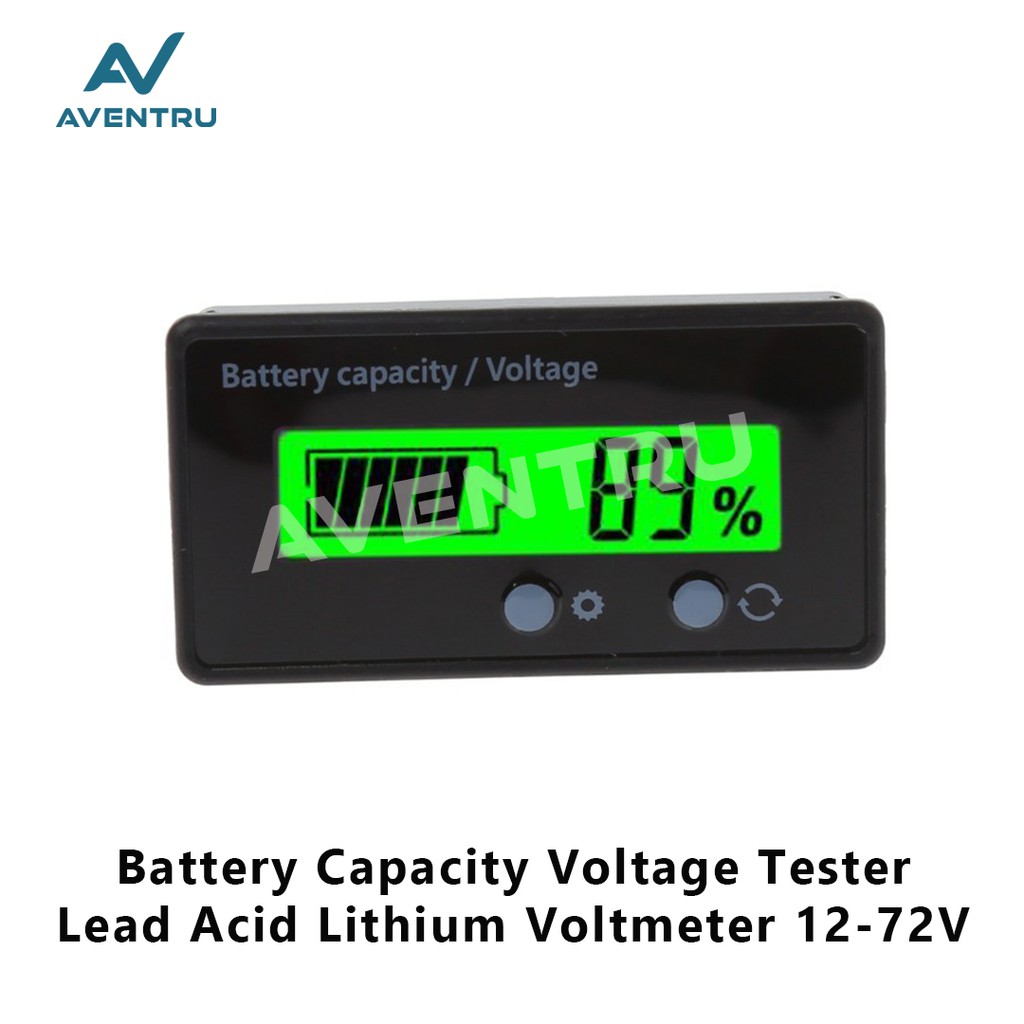

Multi Indikator Kapasitas Baterai Lithium Lead Acid Ion Aki Voltmeter

Detail Multi Indikator Kapasitas Baterai Lithium Lead Acid Ion Aki Voltmeter

3.7V Lithium Battery Tester: 2-17s / Lead Acid Battery 12v-72v


Features:
- Waterproof shell with a button for switching from Capacity, Voltage and Turn off the screen.
- Monitoring the battery capacity and voltage by this mini tester.
- Easy to read the value in dark environment with the green backlight.
- Automatically turn into sleep mode in 10s for saving the power.
- Suitable for testing the capacity of 3.7V Lithium Batteries, Lead Acid Batteries and Fe Batteries.
- Simple connection with reverse protection, won't burn if connect reversely.
- For checking the remaining capacity of batteries, directly display with battery capacity sign and percentage.
- Widely used for cars, motorcycles, scooters, bikes, power bank, test equipment, etc.

Specifications:
- Model: GY-6S
- Color: Black
- Backlight color: Green
- Screen size: 43 x 11.3mm / 1.69" x 0.44"
- Voltage range: 12-72V
- Circuit load current: 5 - 6mA
- Suitable for: 2-17pcs 3.7V Lithium Batteries; Lead Acid Batteries 12V, 24V, 36V, 48V; Fe Batteries
- Dimensions: 61.3 x 33.3 x 13.5mm / 2.41" x 1.31" x 0.53"
- Mounting hole Size: 58 x 28.1mm / 2.28" x 1.11"
- Wire Length: 30cm / 11.8"

Package Includes:

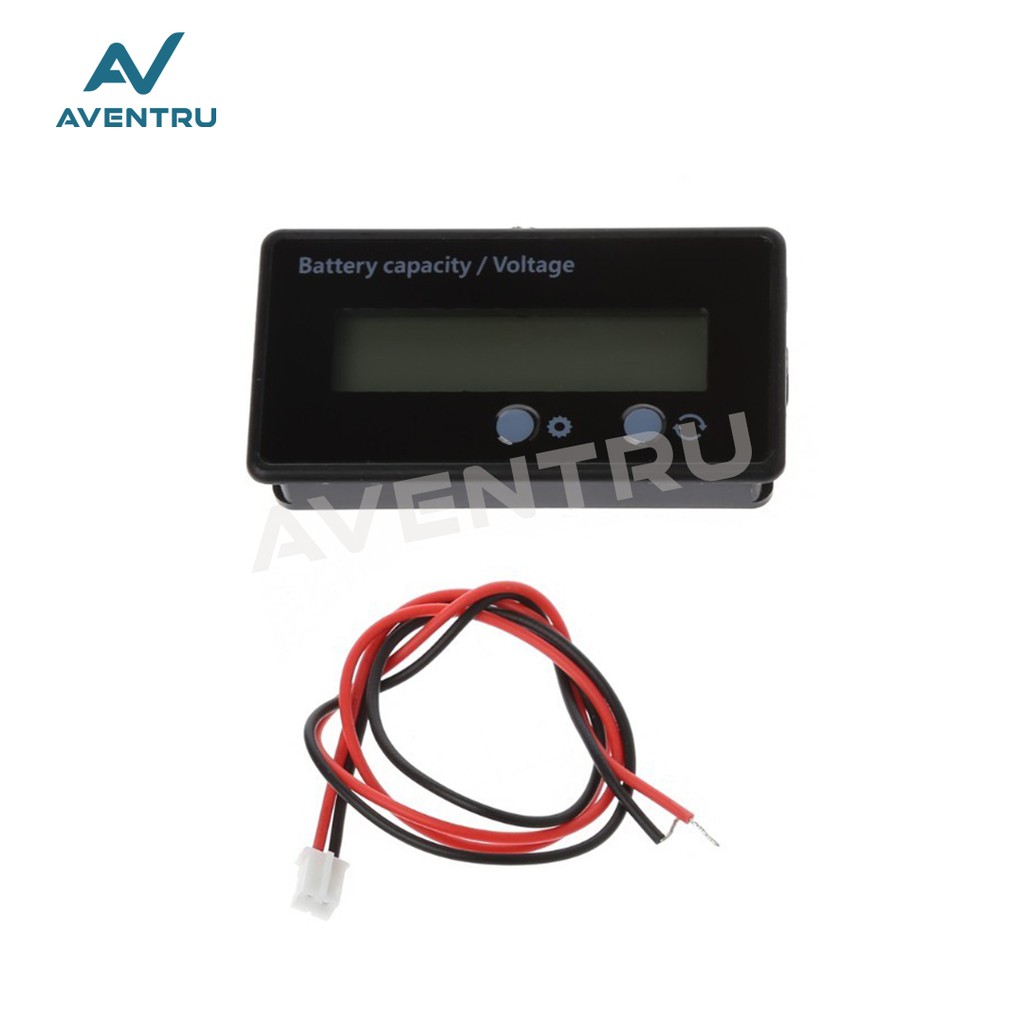

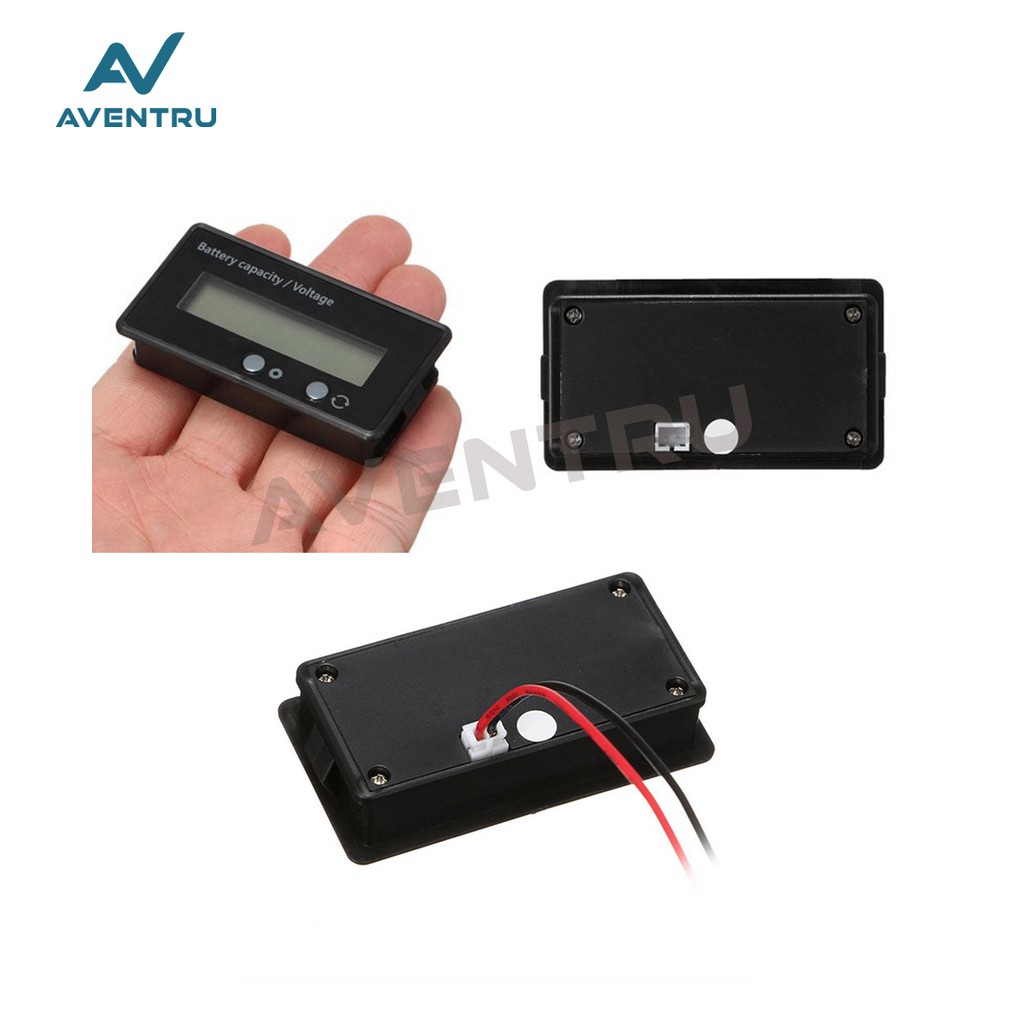

1 x Digital LCD Battery Capacity Tester

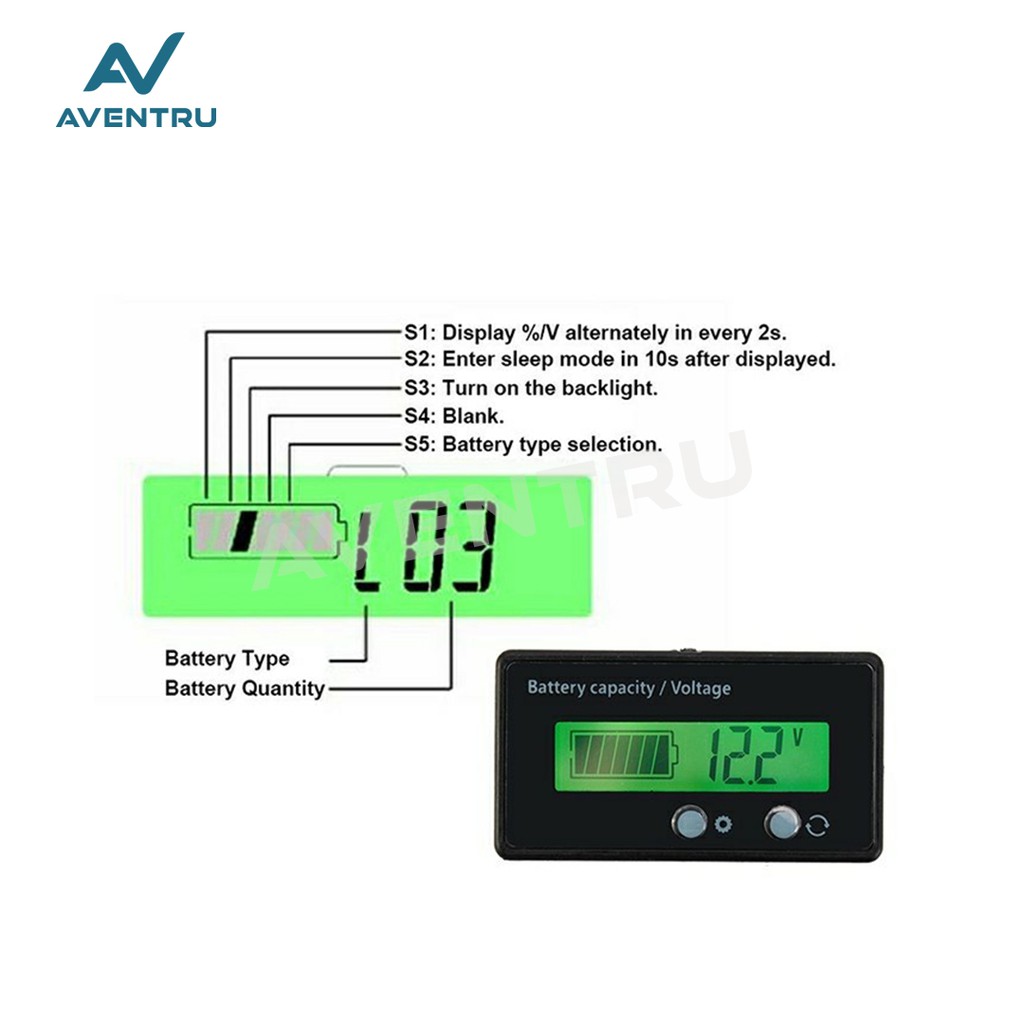

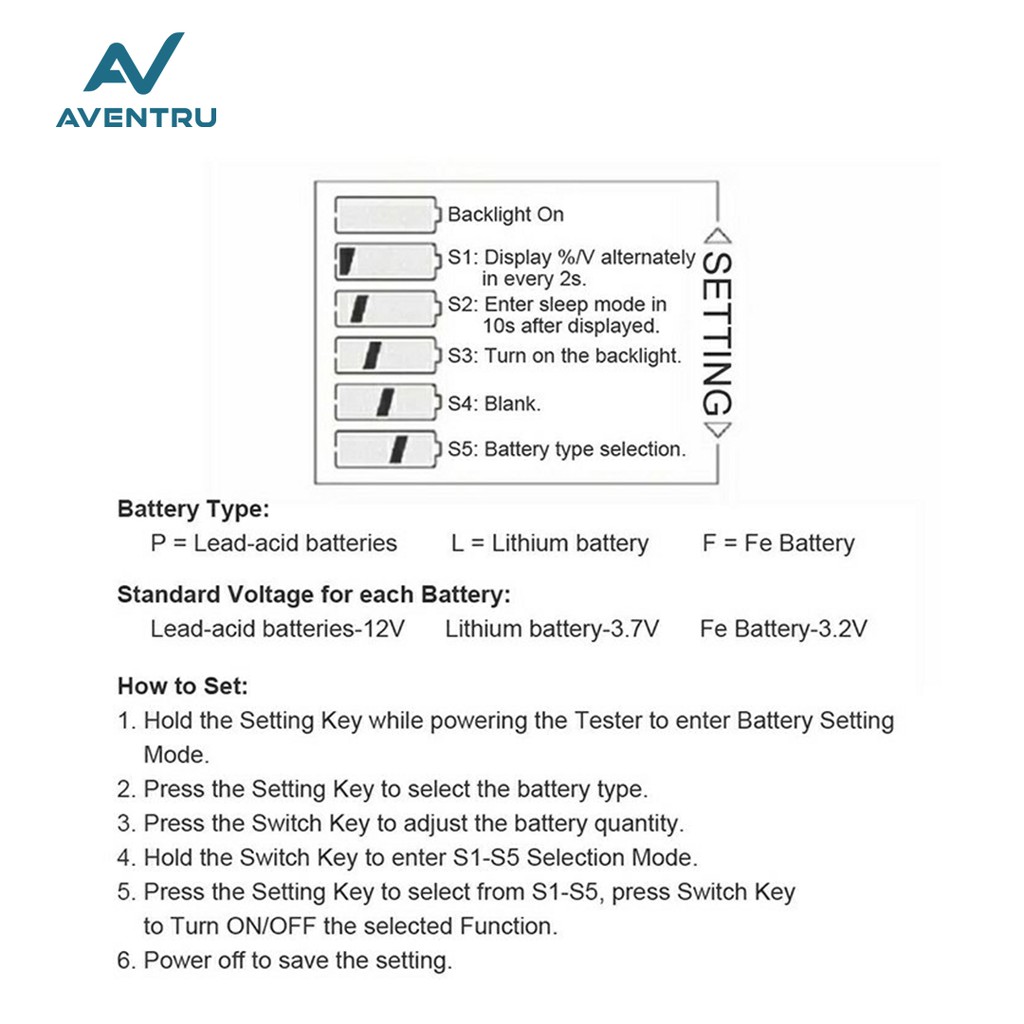

Instructions:
1. Press and hold switch on the product, then power on
2. Select your battery type by pressing power button, for example L is for lithium battery and the number is for how many cells in series. P is for lead-acid batteries.
3. When you have the correct selection just power off the unit.

Gambar produk
