Multi-function DIN Rail D52-2047 LED Digital Ampere Meter Voltage

Detail Multi-function DIN Rail D52-2047 LED Digital Ampere Meter Voltage

D52-2047 DIN-rail multi-function Digital meter can measure AC voltage, AC current, power factor, active power, electric energy and electric energy of cumulative time.

Technical Indicators

1. Accuracy : 1％±2 words

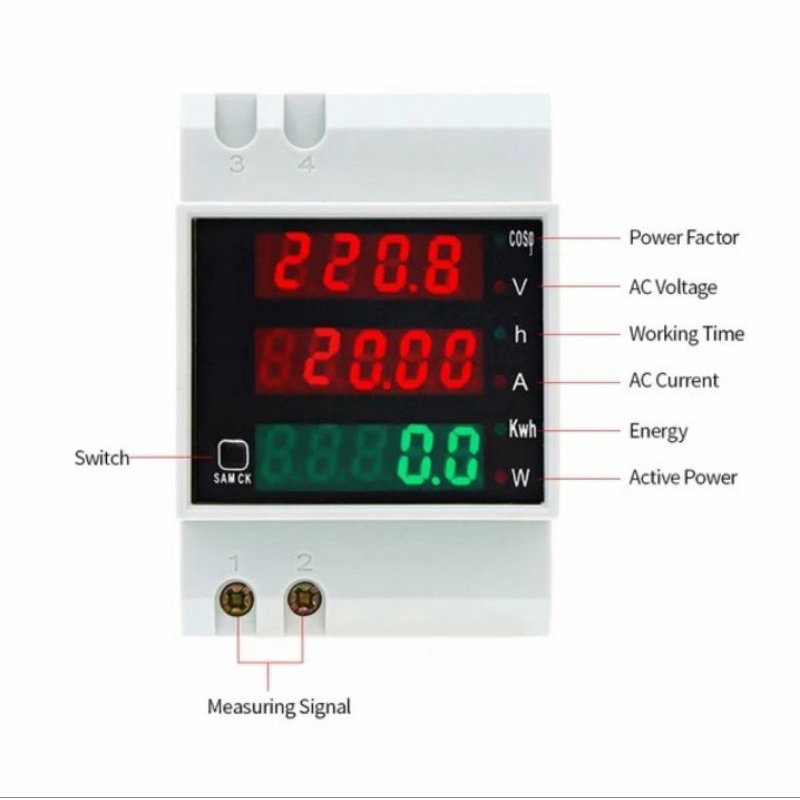

2. Display Mode :
-AC voltage and power factor use four red led of 0.31-inch
-AC current and electric energy of cumulative time use five red led of 0.31-inch
-Active power, electric energy use five green led of 0.31-inch
3. Range :
-AC voltage : AC 80.0-300.0V
- AC 0.0-100.0A ( when measure signal lower than 10.0A, the accuracy is 0.01A, when measure
signal higher than 10.0A, the accuracy is 0.1A, the accuracy auto-change)
-Active power: 0.0-30000W ( measure voltage AC 80.0 - 300.0V )
-Electric energy: 0.000-99999kwh
-Electric energy of cumulative time: 0.00 - 999.59h
-Power factor: 1.000-0.000

Gambar produk
