Detail MT3608 Step Up Adjustable DC to DC Modul

Hi #RekanEasyWare ...
EasyWare Part#: EP000692 (without MicroUSB) & EP000693 (with MicroUSB)

*** Bismillah,
Sebelum membeli, antum pilih variannya terlebih dahulu yah. Ada 2 jenis, mau pakai microusb atau tidak. Terima kasih ****

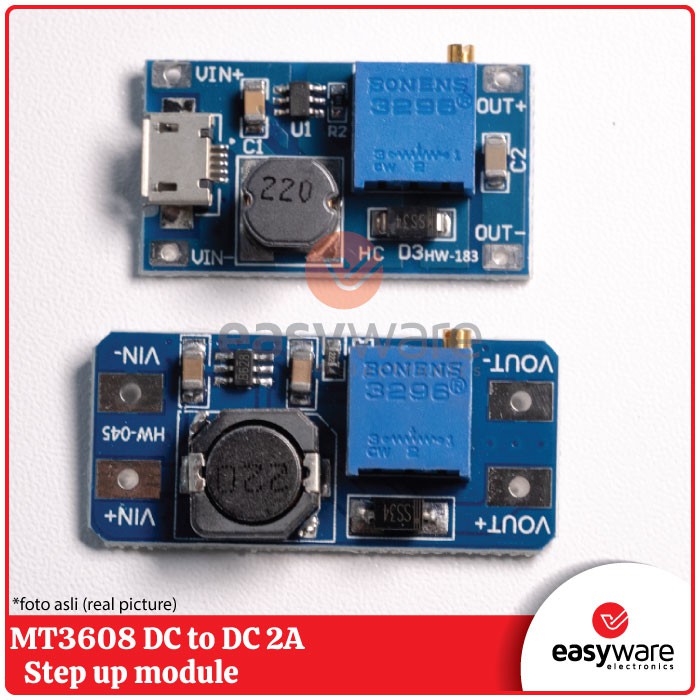

The MT3608 DC-DC Boost module is based upon MT3608 high efficient 1.2Mhz 2 Ampere step up convertor. The MT3608 features automatic shifting to pulse frequency modulation mode at light loads. The MT3608 includes under-voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload.

SPESIFIKASI :
* The maximum output current: 2 a
* The input voltage: 2 v ~ 24 v
* The maximum output voltage: 28 v
* Efficiency: 93%
* Product size: 36 mm * 17 mm * 14 mm
* The input voltage should not exceed the maximum input voltage
* The peak current output current is no more than TV university

KELENGKAPAN :
* 1pcs MT3608 2A Max DC-DC Step Up Power Module Booster Power Module
