Mt3608 Modul Power Supply Step Up DC-DC 2V-24V Ke 5 / 9 / 12 / 28V

Detail Mt3608 Modul Power Supply Step Up DC-DC 2V-24V Ke 5 / 9 / 12 / 28V

Features:

1.Electrical characteristics

1). The maximum output current: 2 a

2). The input voltage: 2 v ~ 24 v

3). The maximum output voltage: 28 v

4). Efficiency: 93%

5). (Minimum) (input-output) difference voltage when input is at

(2V and 50% of max-input-V), loading at (50% and 100% rated current).



2.Mechanical properties

1). product size: 36 mm * 17 mm * 14 mm



3.Method of use

The module of the IN+ and - after 2~24v, IN adjusting the potentiometer can adjust output voltage, output voltage is greater than the input voltage



4.Matters needing attention

1). The input voltage should not exceed the maximum input voltage

2). The peak current output current is no more than TV university

Package includes:

1* Step Up Power Supply Module

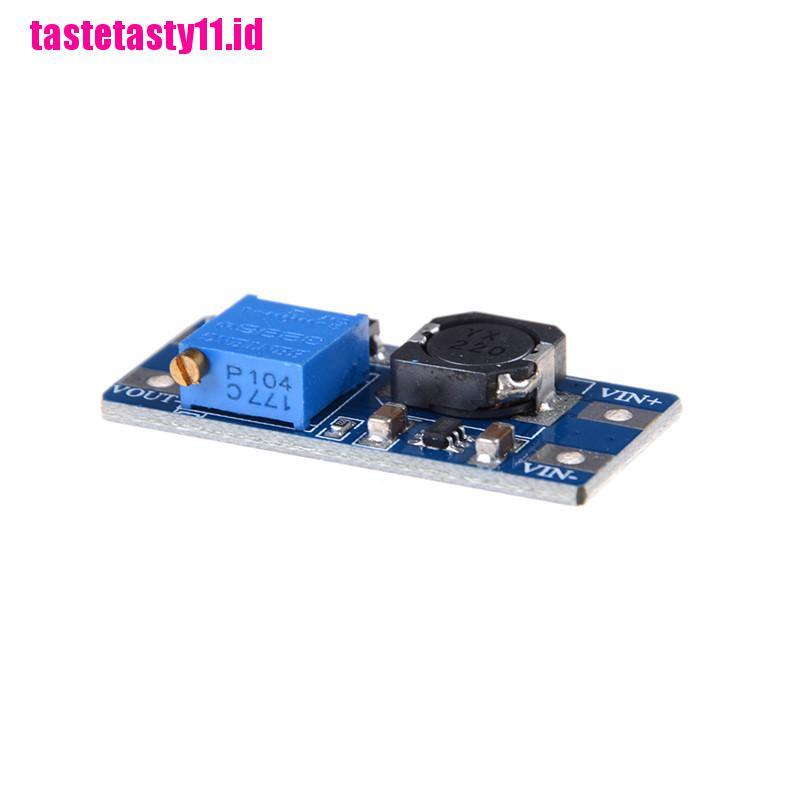

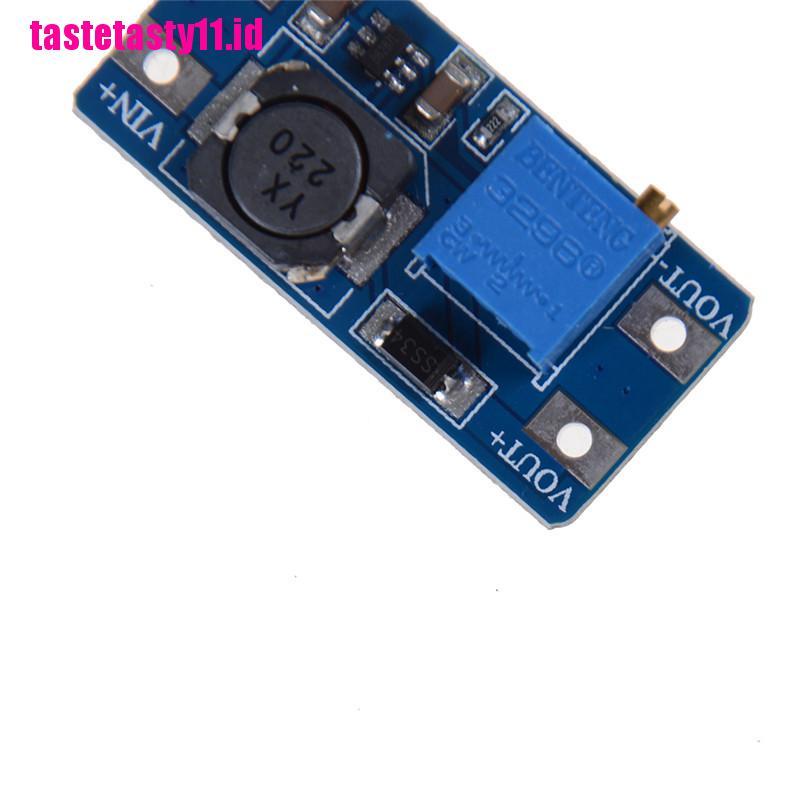

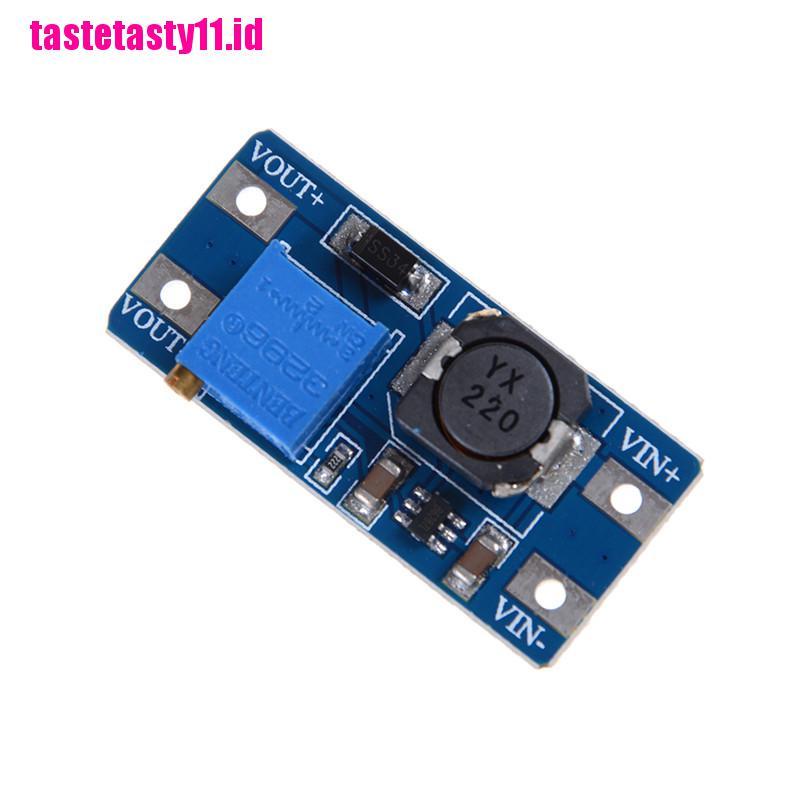

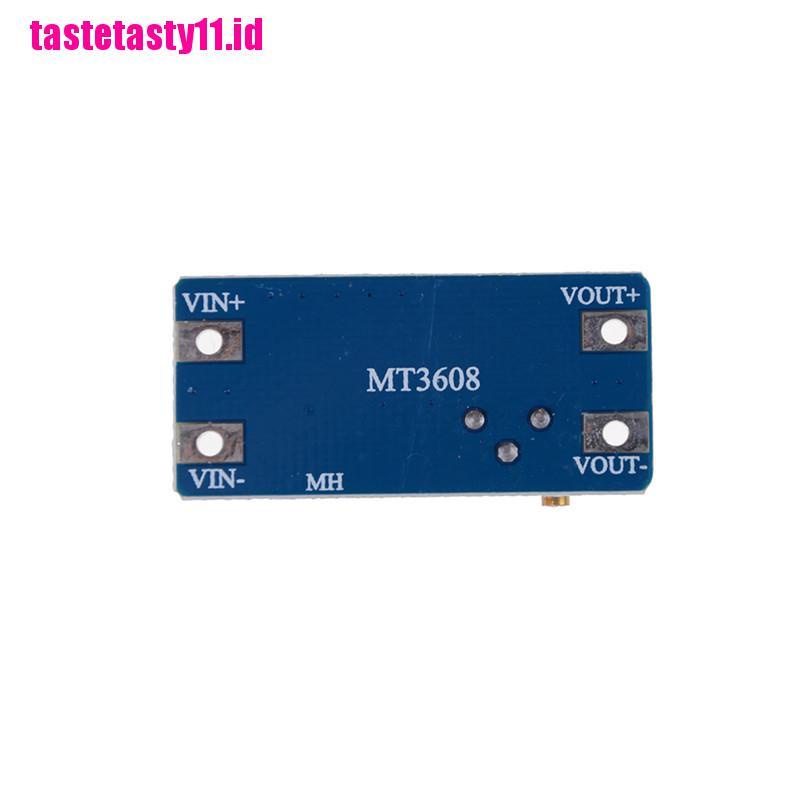

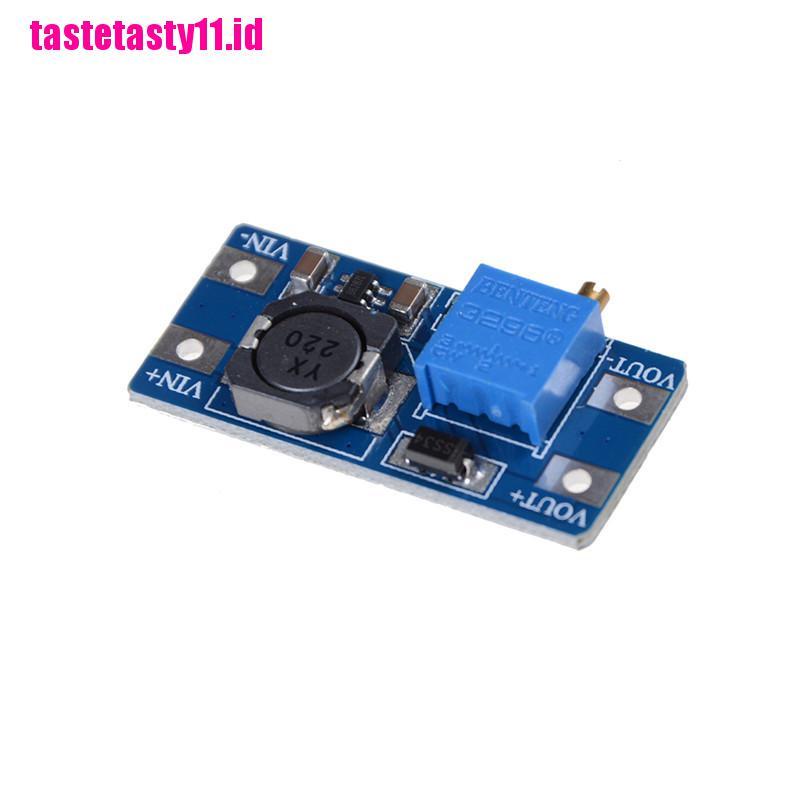

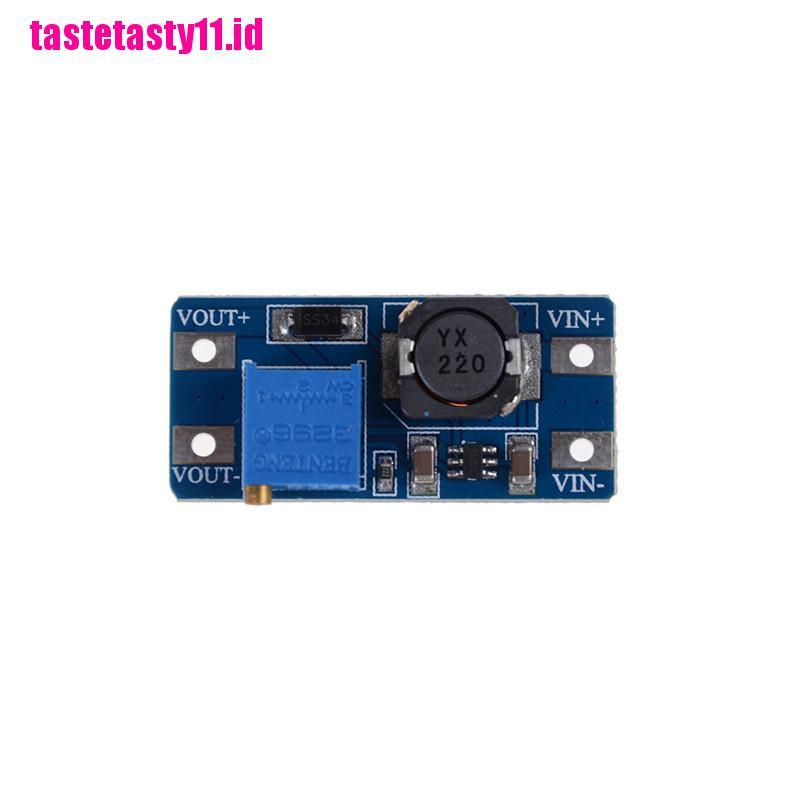

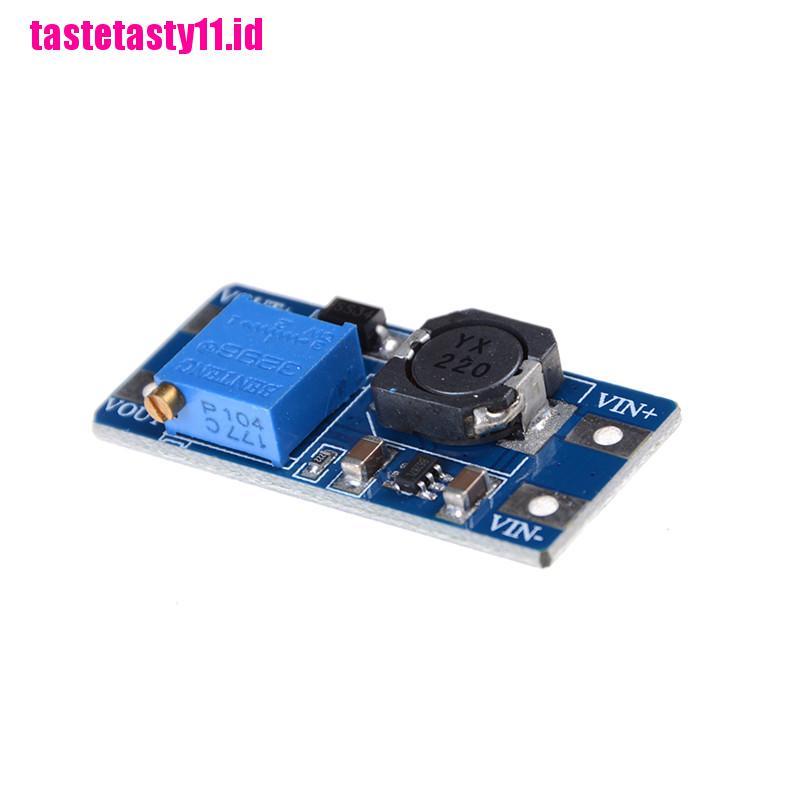

Gambar produk
