MSI PRO H610M-G DDR4

Detail MSI PRO H610M-G DDR4

PROCESSOR
Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors1
Processor socket LGA1700

CHIPSET
Intel H610 Chipset

MEMORY
2x DDR4 memory slots, support up to 64GB1
Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory

EXPANSION SLOT
1x PCIe x16 slot (From CPU)
Supports up to PCIe 4.0 x16
1x PCIe x1 slot
Supports PCIe 3.0 x1
1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1)

ONBOARD GRAPHICS
1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

SATA PORTS
4x SATA 6Gb/s ports
* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

M.2 SSD SLOT
1x M.2 slot (Key M, from chipset)
Supports up to PCIe 3.0 x4
Supports up to SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Supports Intel Smart Response Technology for Intel Core processors
SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot

USB
Intel H610 Chipset
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)

AUDIO
Realtek ALC892/ ALC897 Codec
7.1-Channel High Definition Audio

LAN
1x Intel I219V 1Gbps LAN controller

POWER CONNECTORS
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector

FAN CONNECTORS
1x 4-pin CPU fan connector
1x 4-pin system fan connector

SYSTEM CONNECTORS
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector

JUMPERS
1x Clear CMOS jumper

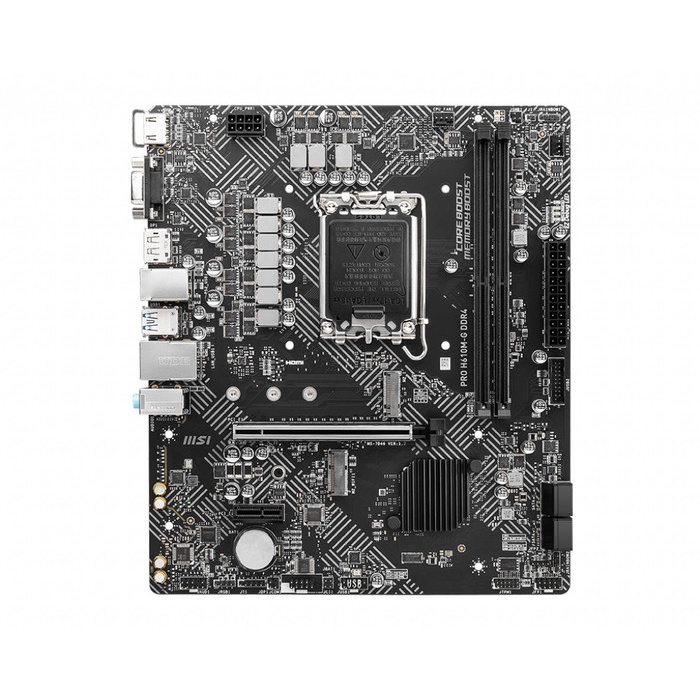

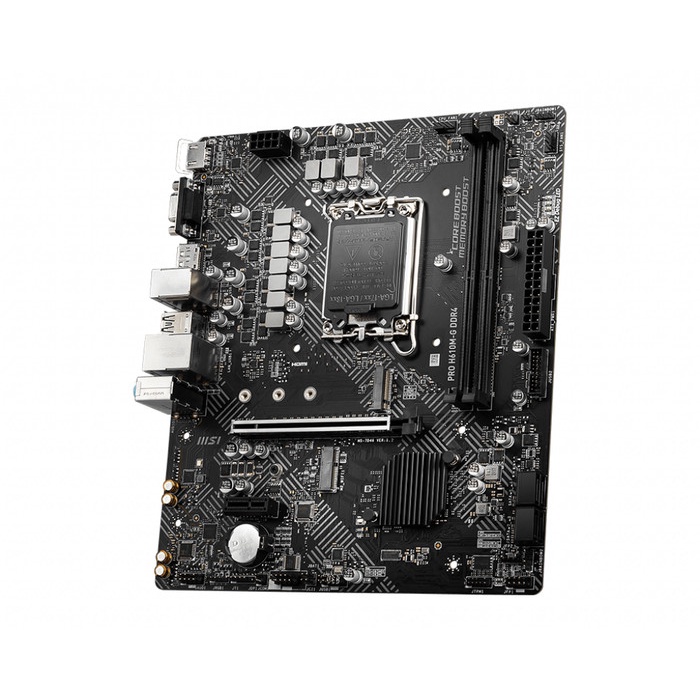

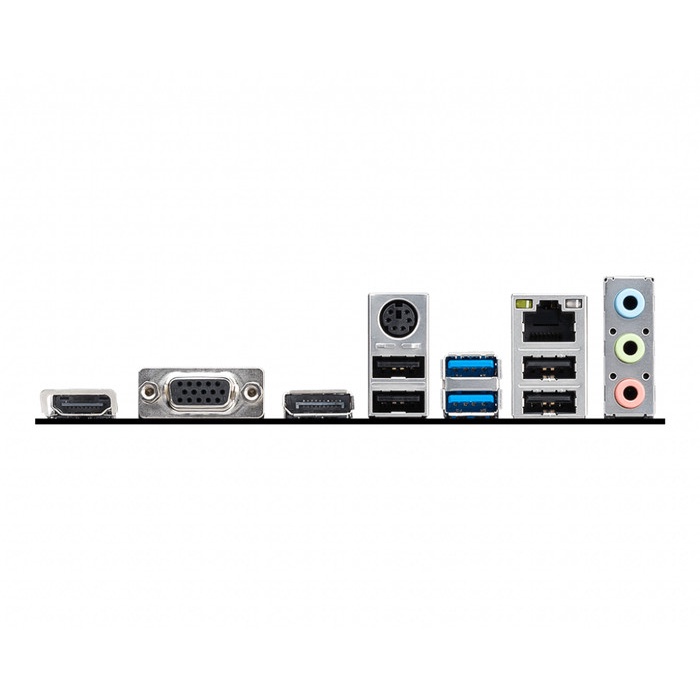

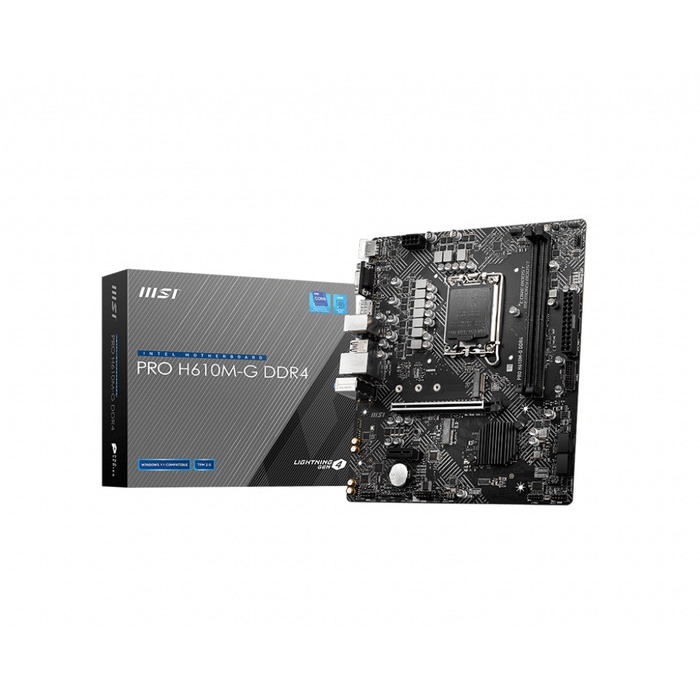

Gambar produk
