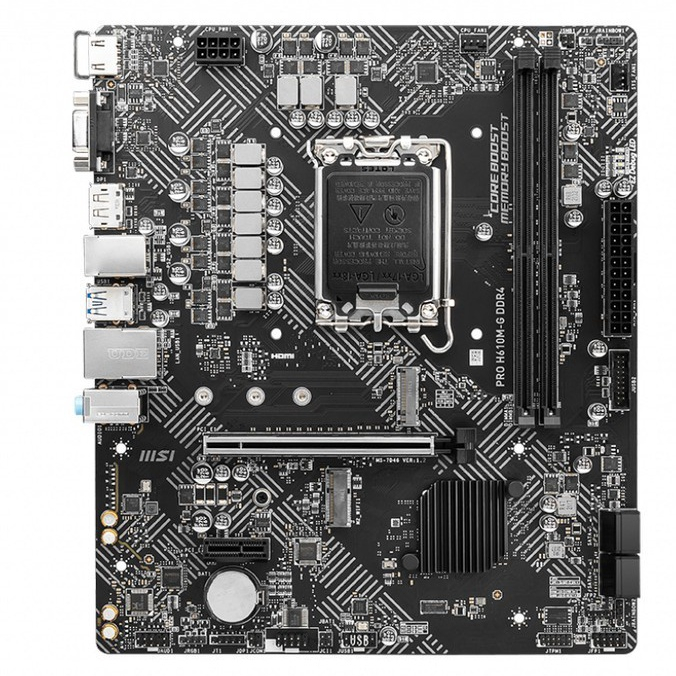

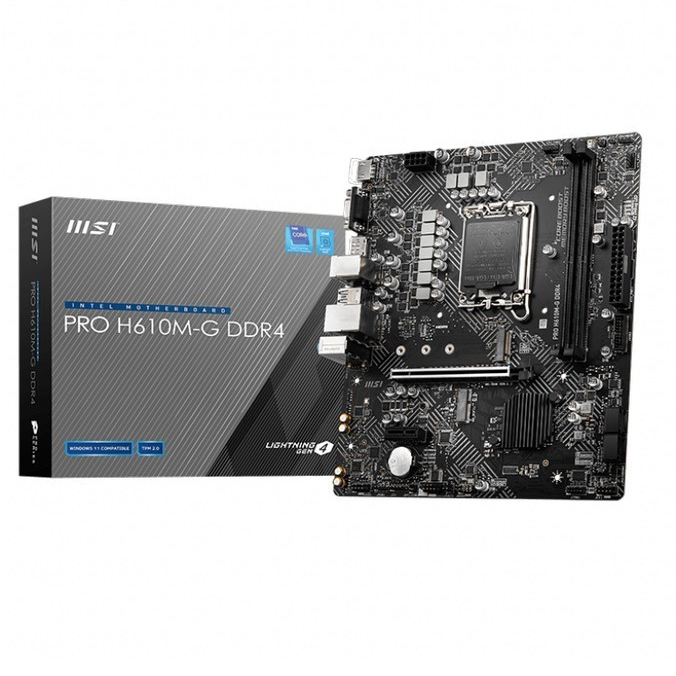

MSI PRO H610M-G DDR4 - Intel Motherboard LGA1700 gen 12

Detail MSI PRO H610M-G DDR4 - Intel Motherboard LGA1700 gen 12

GARANSI RESMI MSI 3TAHUN

SPECIFICATIONS
Model Name PRO H610M-G DDR4
CPU Support Supports 12th Gen Intel® Core™ Processors, Pentium® Gold
and Celeron® Processors
CPU Socket LGA 1700
Chipset Intel® H610 Chipset
Graphics
Interface
1x PCIe 4.0 x16 slot
Display Interface Support 4K@60Hz as specified in HDMI 2.1
DisplayPort 1.4, VGA – Requires Processor Graphics
Memory Support 2 DIMMs, Dual Channel DDR4-3200MHz (MAX)
Expansion Slots 1x PCIe 3.0 x1 slot
1x M.2 slot with E-key for PCIe WiFi module only
Storage 1x M.2 Gen3 x4 32Gbps slot
4x SATA 6Gb/s ports
USB ports 4x USB 3.2 Gen 1 5Gbps(4 Type-A)
6x USB 2.0
LAN Intel® I219-V 1G LAN
Audio 8-Channel(7.1) HD Audio with Audio Boost

FEATURES
Lightning Gen4 Solution
The Gen4 PCI-E solution with up to 64GB/s bandwidth for
maximum transfer speed.
Memory Boost
Advanced technology to deliver pure data signals for the best
performance, stability and compatibility.
PCI-E Steel Armor
Protecting VGA cards against bending and EMI.
Core Boost
With premium layout and fully digital power design to support
more cores and provide better performance.
EZ Debug LED
Easiest way to troubleshoot.
Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system
fan duty to a proper value.
Audio Boost
Reward your ears with studio grade sound quality for the most
immersive audio experience.

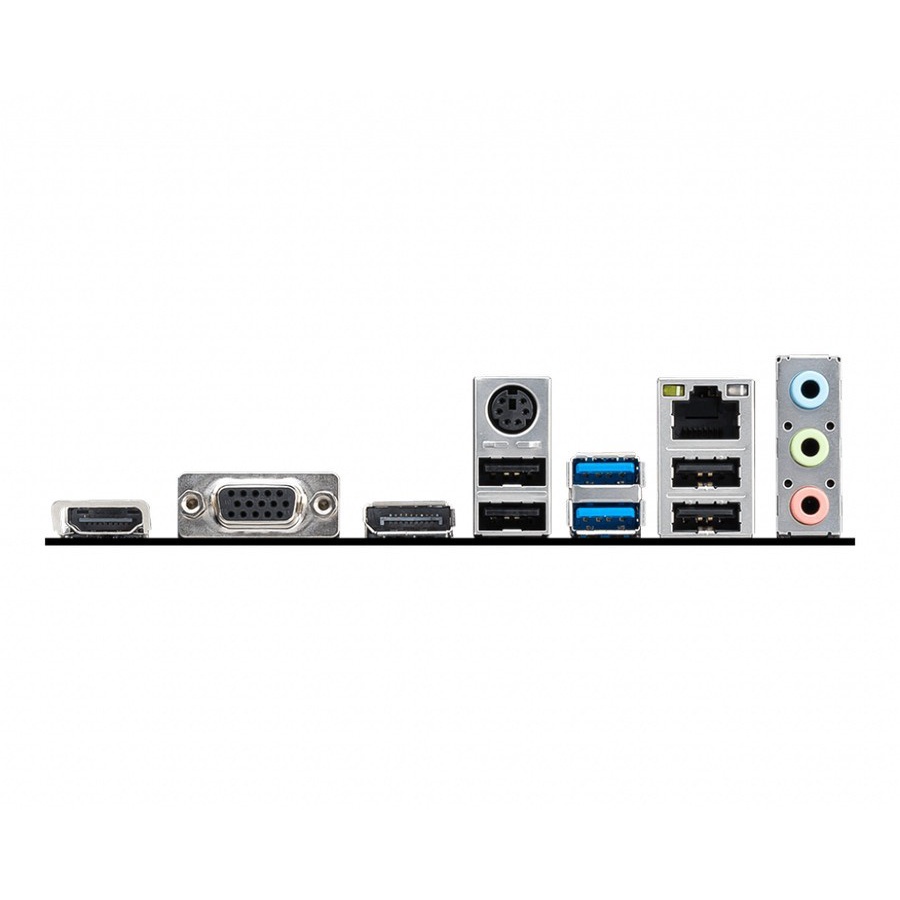

CONNECTIONS
1. HDMI
3. DisplayPort
5. USB 3.2 Gen 1 5Gbps Type-A
7. Audio connector
2. VGA
4. Keyboard/Mouse
6. LAN port
8. USB 2.0

Gambar produk
