MSI PRO H610M-E DDR4 (Intel LGA 1700, Gen12) NAMPOLL

Detail MSI PRO H610M-E DDR4 (Intel LGA 1700, Gen12) NAMPOLL

Motherboard MSI PRO H610M-E DDR4

Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR4 Memory, up to 3200(MAX) MHz

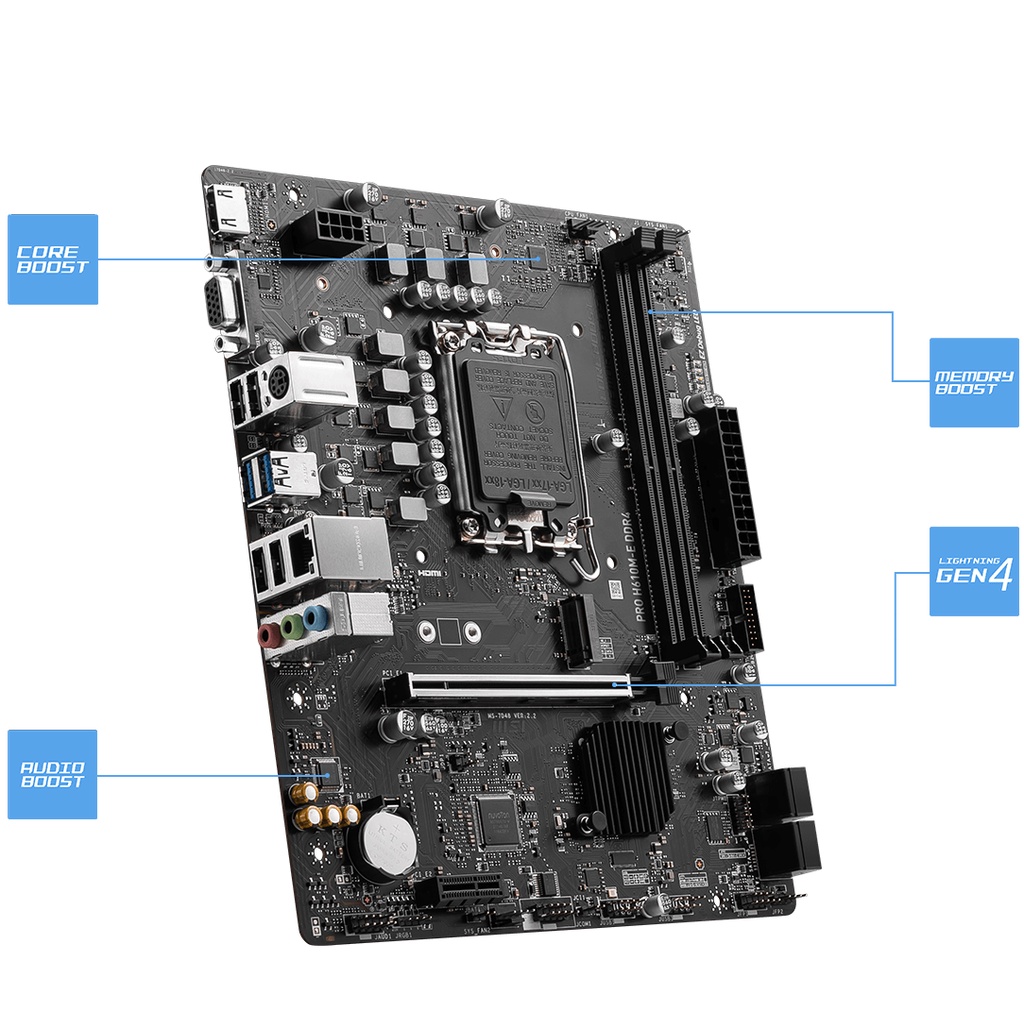

Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0
Audio Boost: Reward your ears with studio grade sound quality
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Memory
2x DDR4 memory slots, support up to 64GB
Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory

Expansion Slot
1x PCIe x16 slot (From CPU)
Supports up to PCIe 4.0 x16
1x PCIe x1 slot (From H610 chipset)
Supports PCIe 3.0 x1

Onboard Graphics
1x HDMI 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz
1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

M.2 SSD Slot
1x M.2 slot (Key M) (from CPU)
Supports up to PCIe 3.0 x4
Supports 2242/ 2260/ 2280 storage devices

Power Connectors
1x 24-pin ATX main power connector
1x 8-pin +12V power connector

Fan Connectors
1x 4-pin CPU fan connector
2x 4-pin system fan connectors

System Connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
1x Serial port connector

LED Features
1x 4-pin RGB LED connector
4x EZ Debug LED
