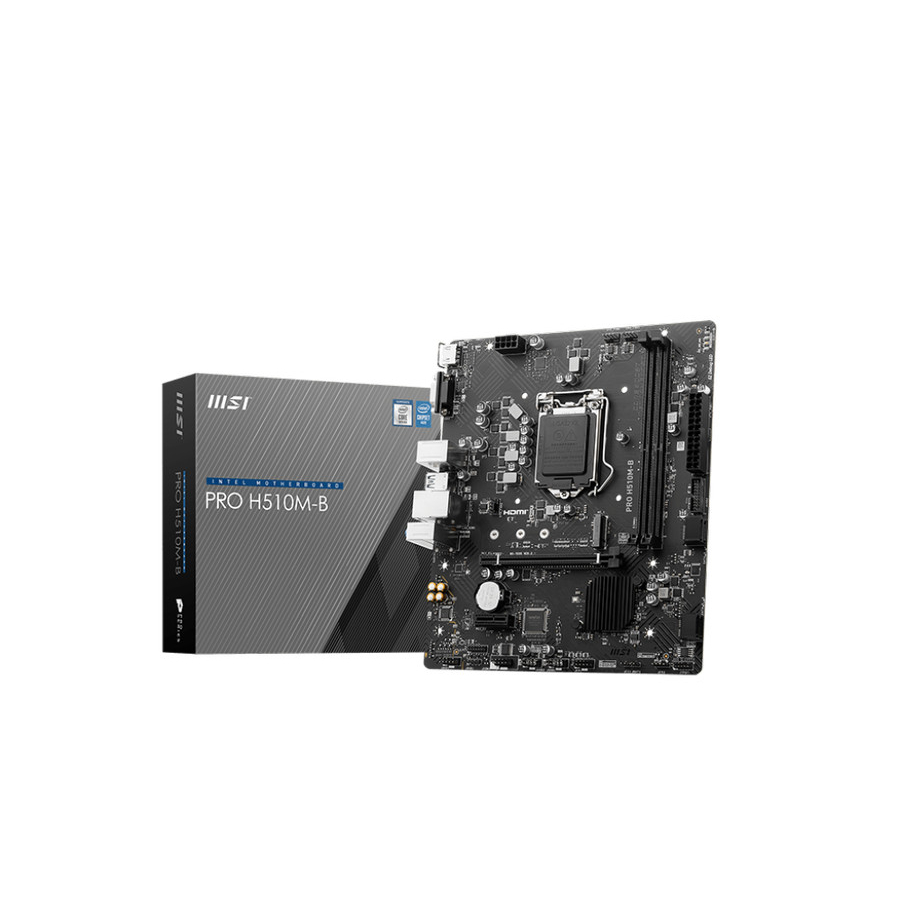

MSI PRO H510M-B Mainboard Intel H470 Gen 10th LGA 1200 DDR4 NVME

Detail MSI PRO H510M-B Mainboard Intel H470 Gen 10th LGA 1200 DDR4 NVME

(Chipset H470, gen 10th only)

CPU SUPPORT Supports 10th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1200 Socket

Memory 2x DDR4, Maximum Memory Capacity 64GB

Memory Support 2933/ 2666/ 2400/ 2133 MHz

Supports 1R 2133/ 2666/ 2933 MHz for Intel Core i9/ Core i7 CPU

Supports 1R 2133/ 2666 MHz for Intel Core i5/ Core i3/ Pentium Gold and Celeron

CPU

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel Extreme Memory Profile (XMP)

Onboard Graphics 1x HDMI

Support HDMI 1.4, maximum resolution of 4K 30Hz*

1x VGA

Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz

EXPANSION SLOT 1x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

Storage 1x M.2

M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices

4x SATA 6G

USB 4x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 3.2 Gen1 Type A (Rear)

2x USB 3.2 Gen1 Type A (Front)

LAN Realtek 8111H Gigabit LAN

Audio Realtek ALC897 Codec

7.1-Channel High Definition Audio

Internal I/O 1x Power Connector(ATX_PWR)

OPERATING SYSTEM Support for Windows 11 64-bit, Windows 10 64-bit

PCB Dimension mATX

202mmx236mm
