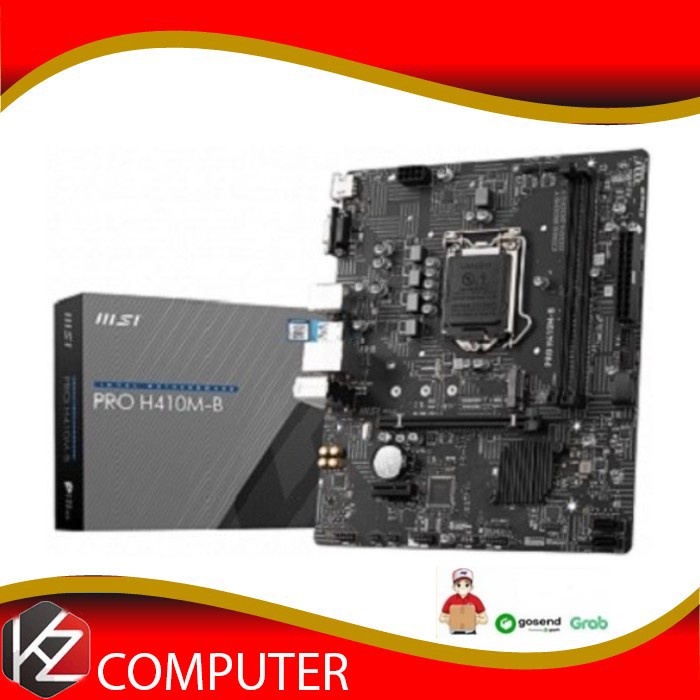

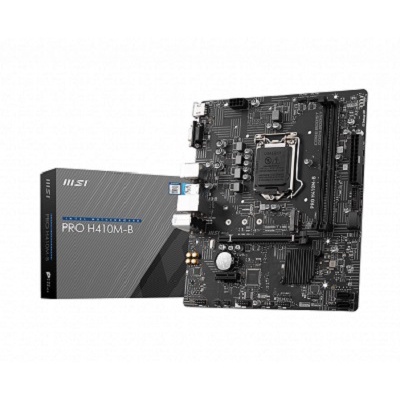

MSI PRO H410M-B Garansi Resmi

Detail MSI PRO H410M-B Garansi Resmi

PROCESSOR
Supports 10th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1
Processor socket LGA1200

CHIPSET
Intel® H510 Chipset

MEMORY
2x DDR4 memory slots, support up to 64GB1
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

EXPANSION SLOT
1x PCIe 3.0 x16 slot (From CPU)
1x PCIe 3.0 x1 slot (From PCH)

ONBOARD GRAPHICS
1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz
1x HDMI 1.4 port, supports a maximum resolution of 4K 30Hz
Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

STORAGE
4x SATA 6Gb/s ports (From H510 Chipset)
1x M.2 slot (Key M, from H510 chipset)
Supports up to PCIe 3.0 x4
Supports SATA 6Gb/s1
Supports 2242/ 2260/ 2280 storage devices
SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

AUDIO
Realtek® ALC897/ ALC892 Codec
7.1-Channel High Definition Audio

LAN
1x Realtek® RTL8111 Gigabit LAN controller

INTERNAL CONNECTORS
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x USB 2.0 connector (support additional 2 USB ports)
1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x System panel connectors
1x Serial port connector
1x TPM module connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
