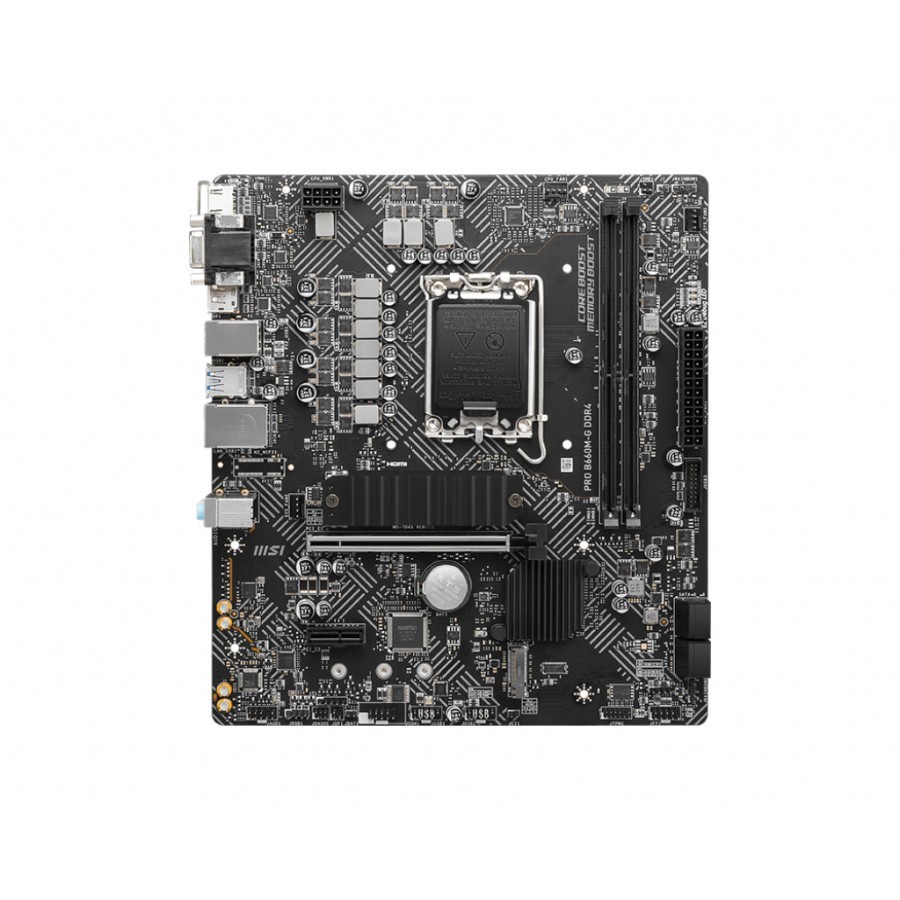

MSI PRO B660M-G DDR4 | Motherboard Intel B660 LGA 1700 DDR4 Micro ATX

Detail MSI PRO B660M-G DDR4 | Motherboard Intel B660 LGA 1700 DDR4 Micro ATX

GARANSI RESMI MSI 3TAHUN

CPU
- Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Chipset
- Intel B660

Memory
- 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules

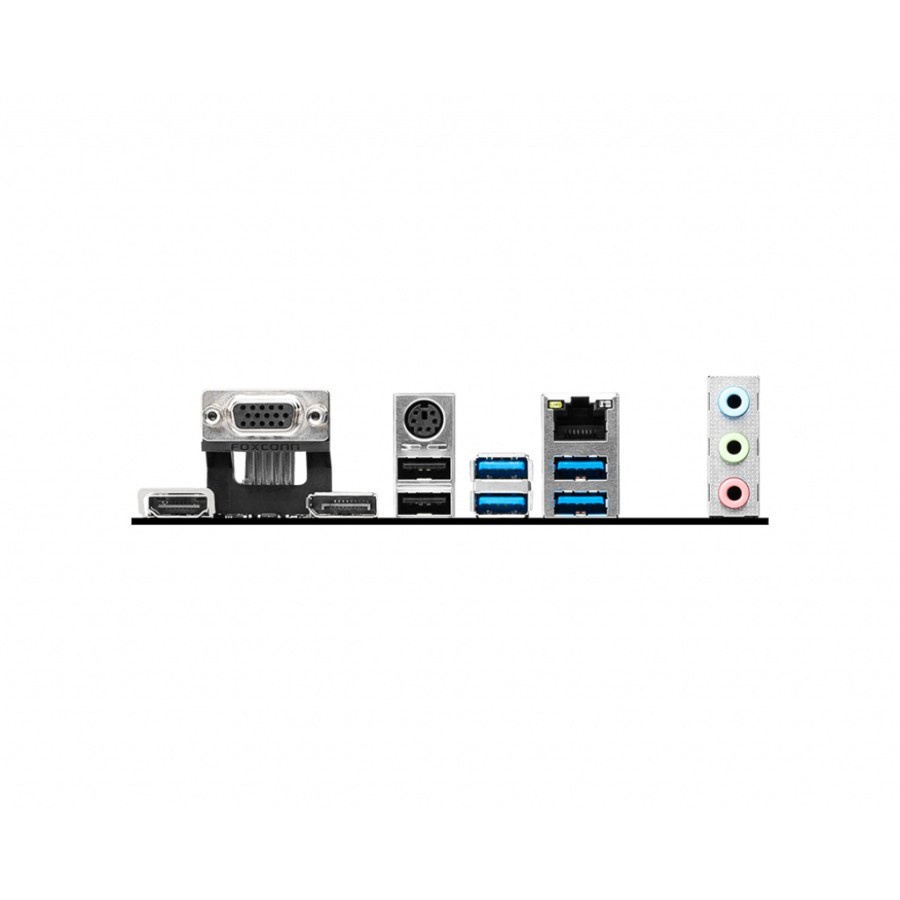

Graphics
- 1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1/2
- 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1/2
- 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 1/2 (PRO B660M-G DDR4)

Expansion Slots
- 1x PCIe 4.0 x16 slot (from CPU)
- 1x PCIe 3.0 x1 slot (from B660 chipset)

Storage
- 4x SATA 6Gb/s ports (From B660 chipset) 1
- 2x M.2 slots (Key M)
* M2_1 slot (From CPU)
** Supports PCIe 4.0 x4
** Supports 2242/ 2260/ 2280 storage devices
* M2_2 slot (From B660 chipset) 1
** Supports PCIe 4.0 x4
** Supports SATA 6Gb/s
** Supports 2242/ 2260/ 2280 storage devices
** Supports Intel® Optane™ Technology
- SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

Ethernet
- 1x Realtek® RTL8125BG 2.5Gbps LAN controller

Form Factor
- microATX
- 24.4 cm x 22.0 cm

Gambar produk
