MSI PRO B660M-B DDR4 | Intel Gen 12 LGA1700 B660 MATX Motherboard

Detail MSI PRO B660M-B DDR4 | Intel Gen 12 LGA1700 B660 MATX Motherboard

-- Stok tidak mengikat, harap konfirmasikan stok terlebih dahulu sebelum melakukan pemesanan demi menghindari keterlambatan pengiriman / pembatalan pesanan --trimakasih

FEATURES
Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR4 Memory, up to 4600+(OC) MHz
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Audio Boost: Reward your ears with studio grade sound quality
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

TECH SPECS
CPU (MAX SUPPORT): i9
SOCKET: 1700
CHIPSET: Intel® B660 Chipset
DDR4 MEMORY: 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
MEMORY CHANNEL: Dual
DIMM SLOTS: 2
MAX MEMORY (GB): 64
PCI-EX16: 1
PCI-EX1: 1
SATAIII: 4
M.2 SLOT: 1
RAID: 0/1/5/10
TPM (header): 1
LAN: 1x Realtek® RTL8125BG 2.5Gbps LAN controller

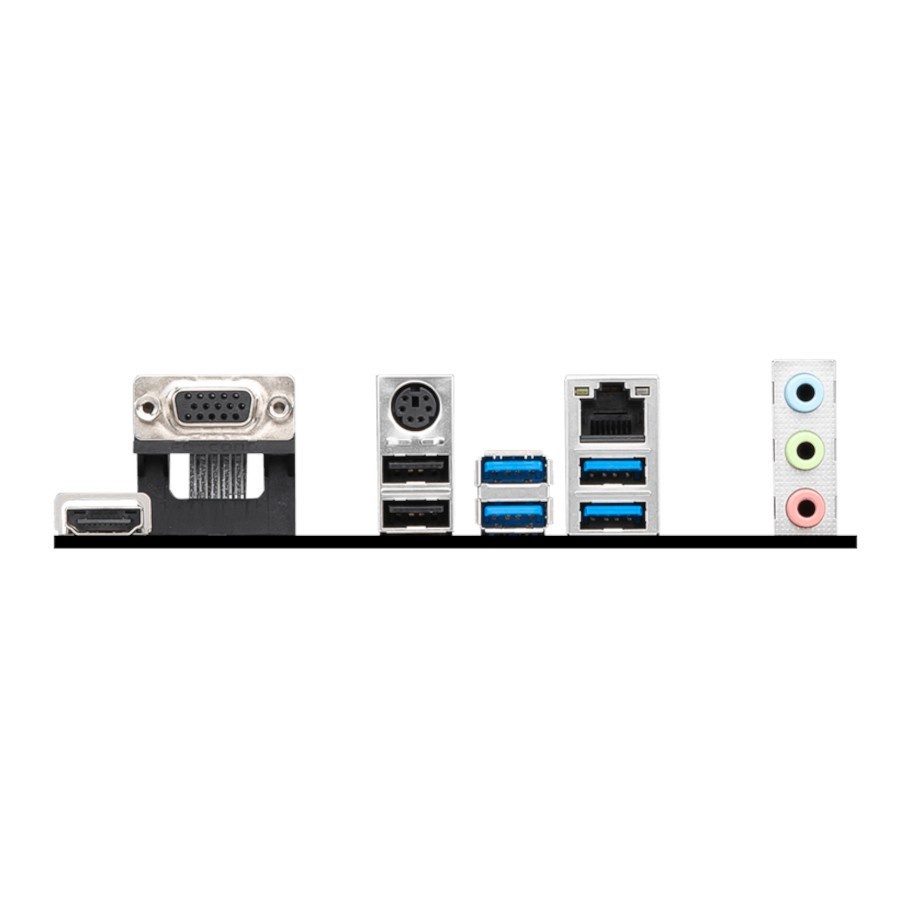

USB 3.2 PORTS (FRONT): 2(Gen 1, Type A)
USB 3.2 PORTS (REAR): 4(Gen 1, Type A)
USB 2.0 PORTS (FRONT): 4
USB 2.0 PORTS (REAR): 2
AUDIO PORTS (REAR): Realtek® ALC897 Codec
VGA: 1
HDMI: 1
DIRECTX: 12

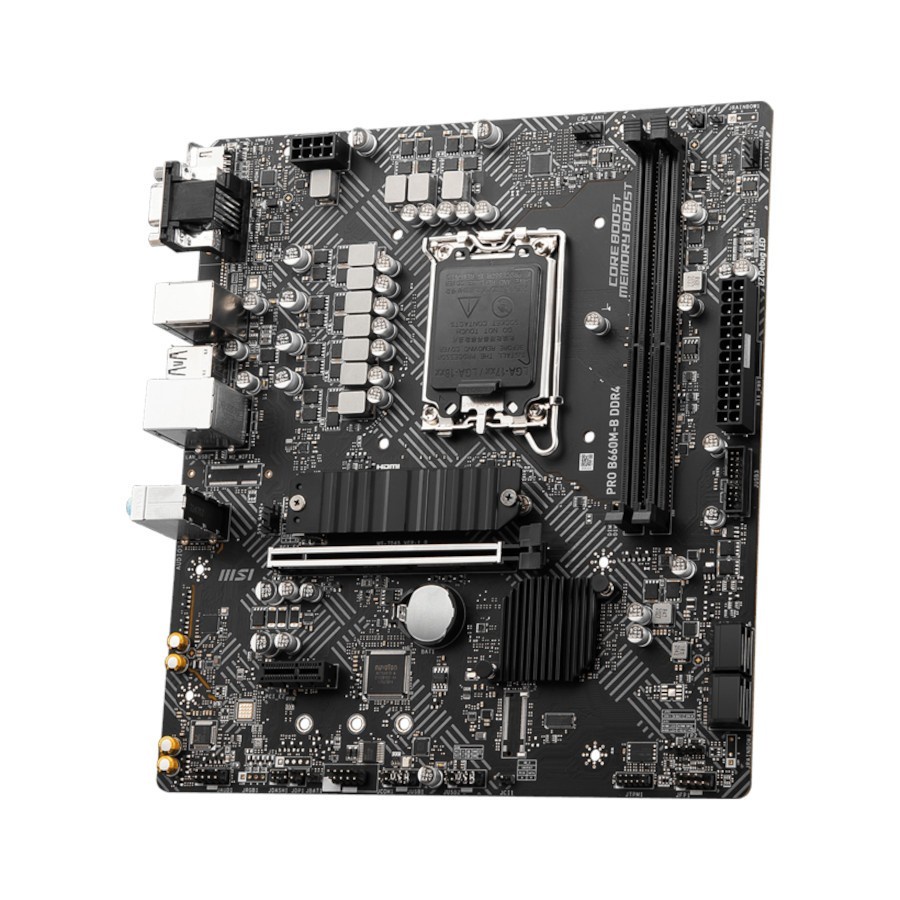

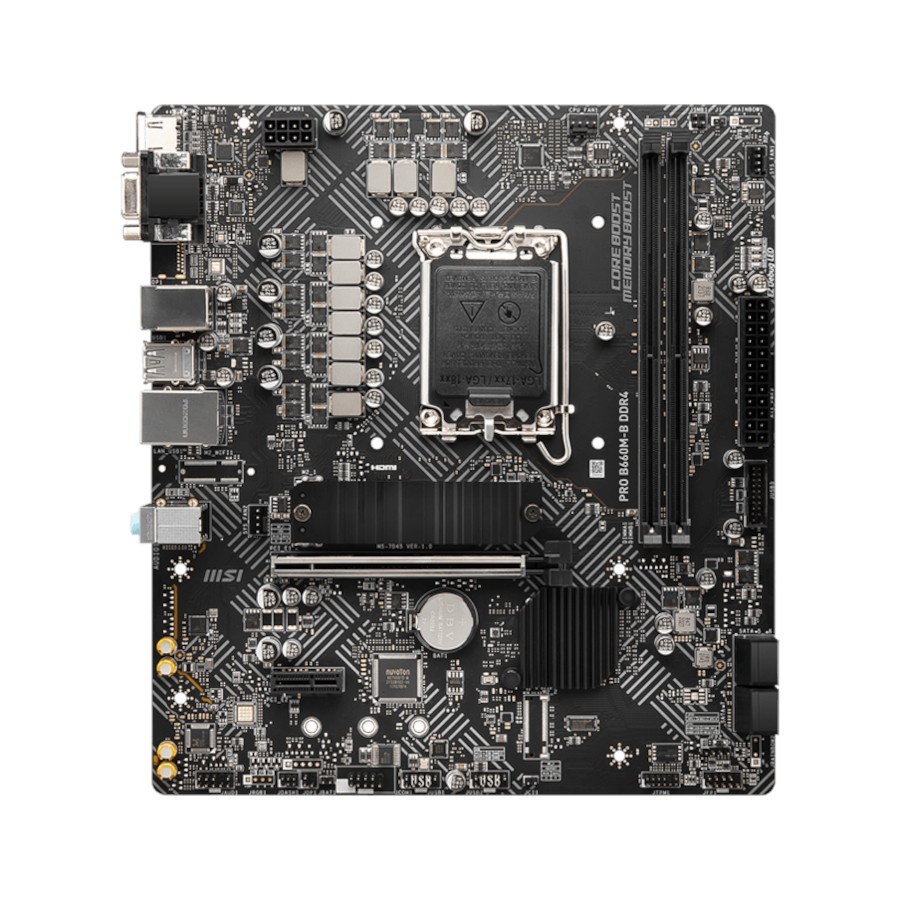

Gambar produk
