MSI PRO B660M-A Wifi DDR4

Detail MSI PRO B660M-A Wifi DDR4

CPU
Supports 12th Gen Intel Core Processors
Processor socket LGA1700

CHIPSET
Intel B660 Chipset

MEMORY
4x DDR5 memory slots, support up to 128GB 1
Supports 1R 4800 MHz (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 6200+ MHz
1DPC 2R Max speed up to 5200+ MHz
2DPC 1R Max speed up to 4000+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)

EXPANSION SLOT
2x PCIe x16 slots
PCI_E1 (From CPU)
Support PCIe 4.0 x16
PCI_E3 (From B660 chipset)
Support PCIe 3.0 x4
1x PCIe 3.0 x1 slot (Fom B660 chipset)

ONBOARD GRAPHICS
2x HDMI 2.1 with HDR ports, supporting a maximum resolution of 4K 60Hz
2x DisplayPort 1.4 ports with HBR3, supporting a maximum resolution of 4K 60Hz
Available only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU installed.

MULTI-GPU
Supports AMD CrossFire Technology

AUDIO
Realtek ALC897 Codec
7.1-Channel High Definition Audio

STORAGE
4x SATA 6Gb/s ports (From B660 chipset)
2x M.2 slots (Key M)
M2_1 slot (From CPU)
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (From B660 chipset)
Supports up to PCIe 4.0 x4
Supports up to SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Supports Intel Optane Memory
Support Intel Smart Response Technology for Intel Core processors
SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

LAN
1x Realtek RTL8125BG 2.5Gbps LAN controller

WI-FI & BLUETOOTH
Intel Wi-Fi 6
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.2

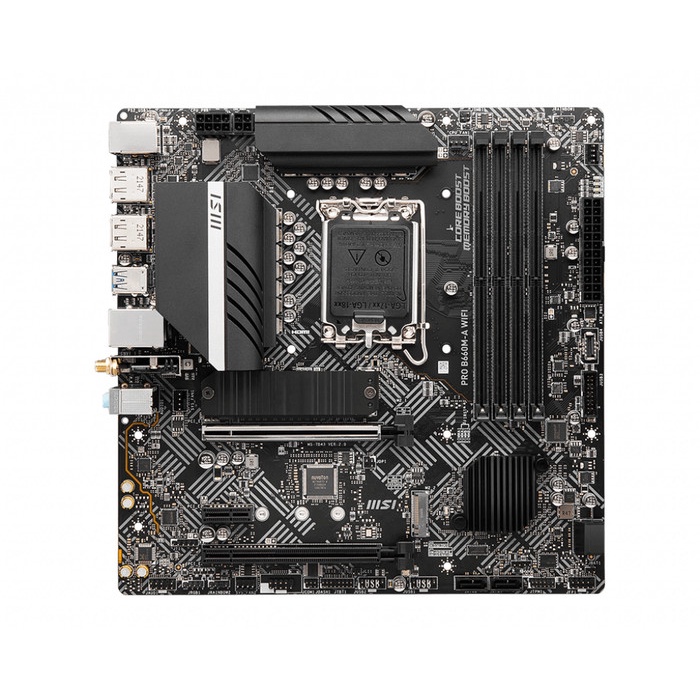

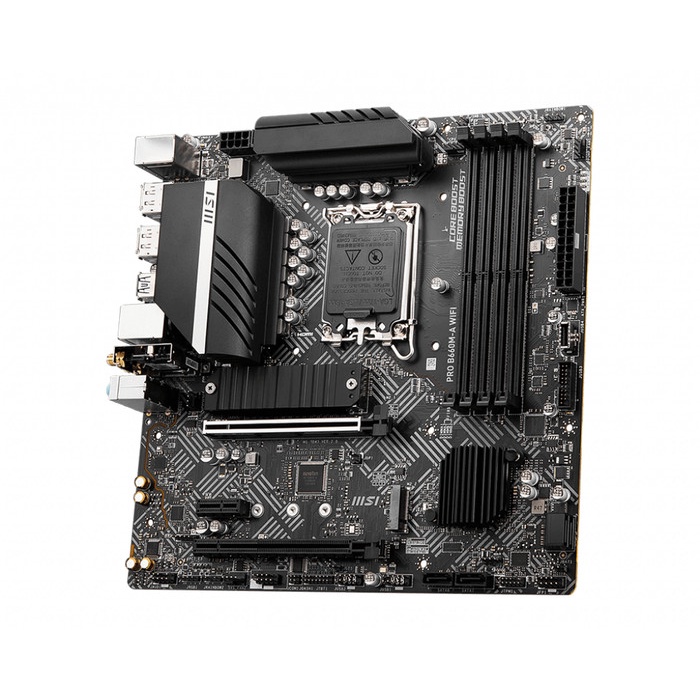

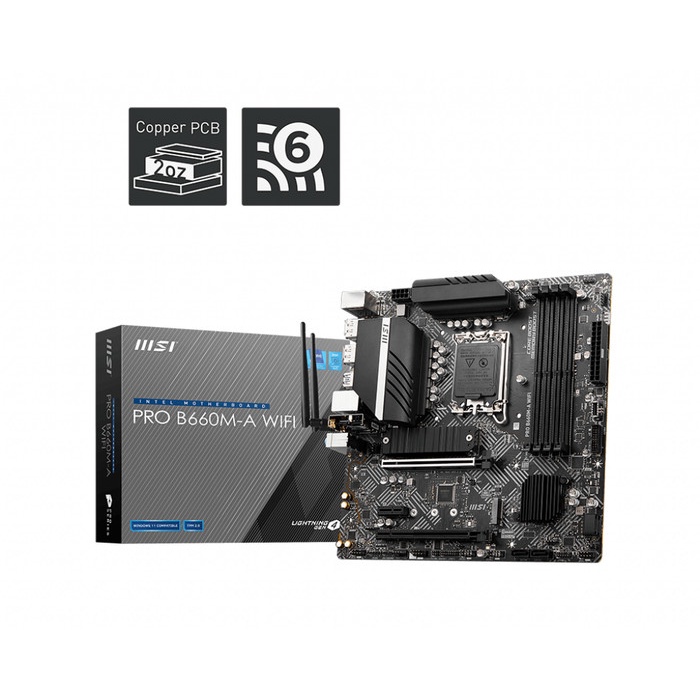

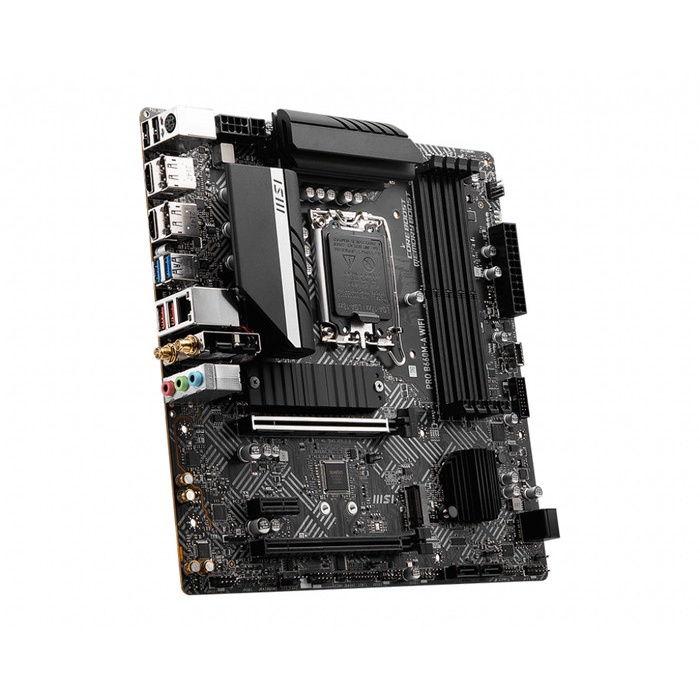

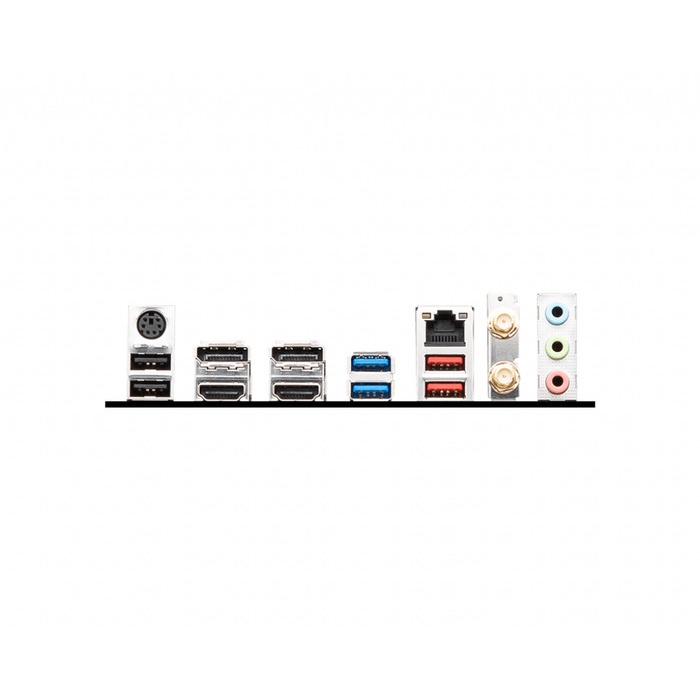

Gambar produk
