MSI PRO B660M A WiFi DDR4 LGA 1700 B660 DDR4 USB 3.2 SATA3

Merek: MSI | Lihat selengkapnya produk Komputer & Aksesoris dari MSI

Komputer & Aksesoris > Komponen Desktop & Laptop > Motherboard > MSI PRO B660M A WiFi DDR4 LGA 1700 B660 DDR4 USB 3.2 SATA3

Tersedia

Periksa harganya...

Lihat tempat menjual

Toko:Cahaya Matahari ComputersLihat semua produk Komputer & Aksesoris oleh Cahaya Matahari Computers

Pengiriman Ekspres
Barang yang diperiksa
Bayar di tempat berlaku
Kualitas, Prestise
Pengembalian produk
Dukung pembuatan faktur

Deskripsi Produk Spesifikasi

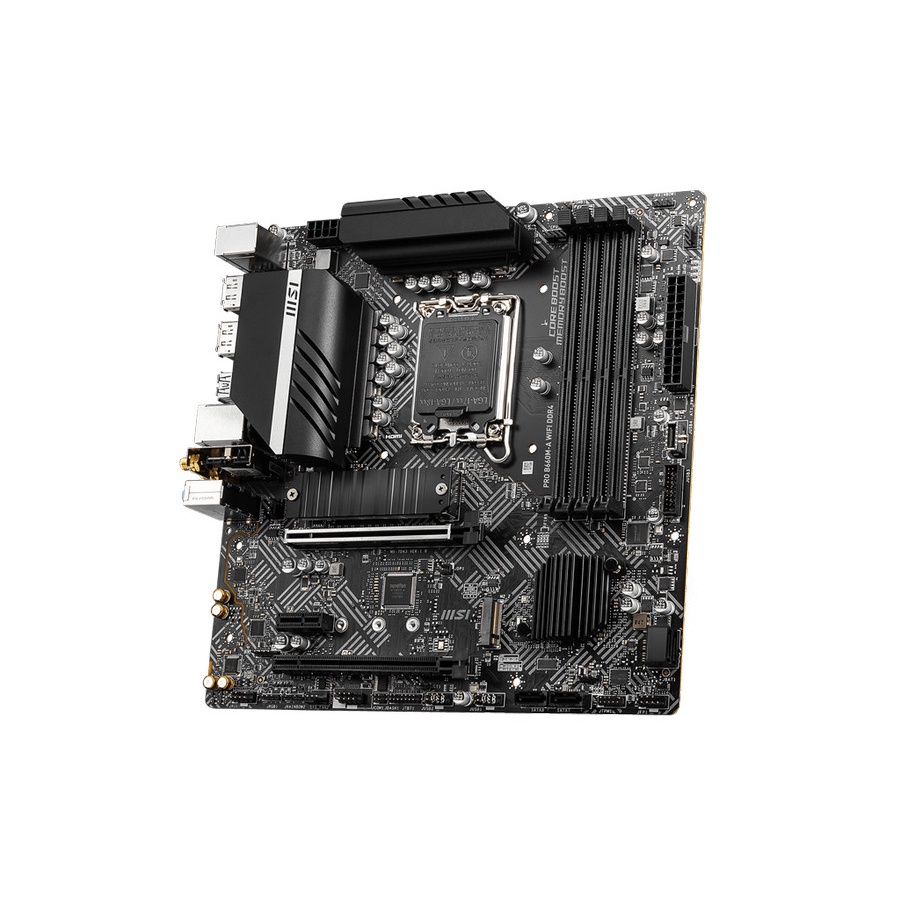

Detail MSI PRO B660M A WiFi DDR4 LGA 1700 B660 DDR4 USB 3.2 SATA3

MSI PRO B660M-A WIFI DDR4 LGA1700 USB 3.2

Spesifikasi :

• CPU
Supports 12th Gen Intel® Core™ Processors
Processor socket LGA1700

• CHIPSET
Intel® B660 Chipset

• MEMORY
4x DDR5 memory slots, support up to 128GB 1
Supports 1R 4800 MHz (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 6200+ MHz
1DPC 2R Max speed up to 5200+ MHz
2DPC 1R Max speed up to 4000+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

• EXPANSION SLOT
2x PCIe x16 slots
PCI_E1 (From CPU)
Support PCIe 4.0 x16
PCI_E3 (From B660 chipset)
Support PCIe 3.0 x4
1x PCIe 3.0 x1 slot (Fom B660 chipset)

• ONBOARD GRAPHICS
2x HDMI 2.1 with HDR ports, supporting a maximum resolution of 4K 60Hz
2x DisplayPort 1.4 ports with HBR3, supporting a maximum resolution of 4K 60Hz
Available only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU installed.

• MULTI-GPU
Supports AMD® CrossFire™ Technology

• AUDIO
Realtek® ALC897 Codec
7.1-Channel High Definition Audio

• STORAGE
4x SATA 6Gb/s ports (From B660 chipset)
2x M.2 slots (Key M)
M2_1 slot (From CPU)
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (From B660 chipset)
Supports up to PCIe 4.0 x4
Supports up to SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Supports Intel® Optane™ Memory
Support Intel® Smart Response Technology for Intel Core™ processors
SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

• RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

• LAN
1x Realtek® RTL8125BG 2.5Gbps LAN controller

• WI-FI & BLUETOOTH®
Intel® Wi-Fi 6
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.2

Garansi Resmi 3 Tahun
