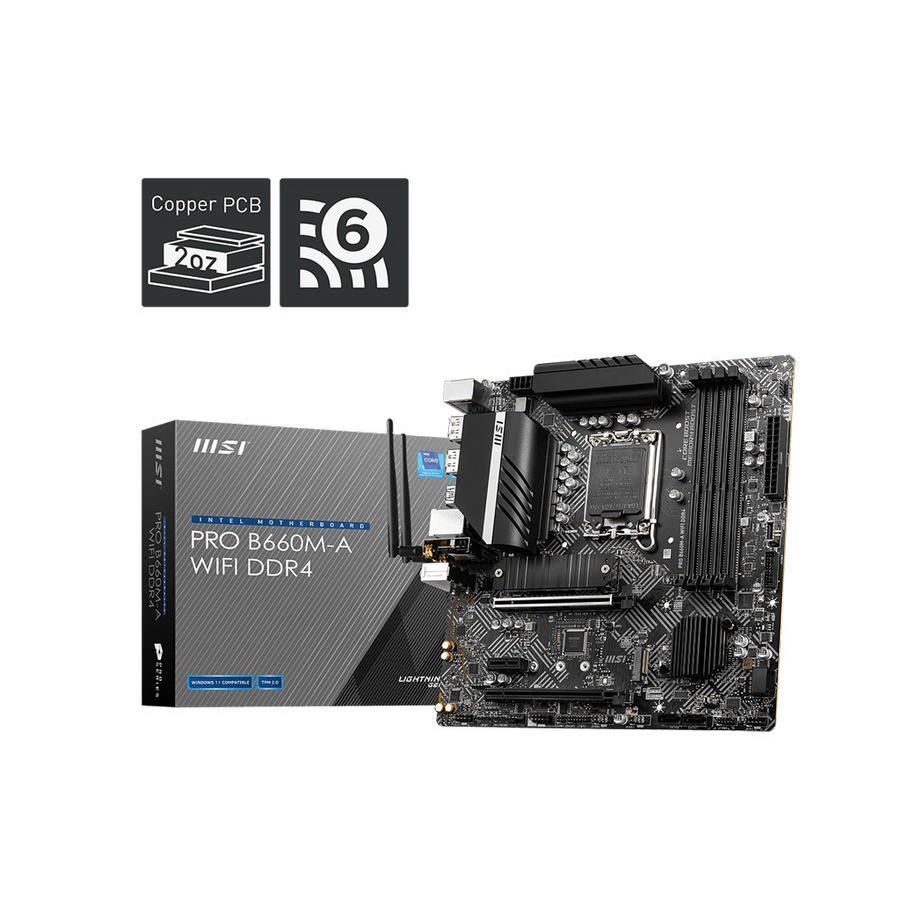

MSI PRO B660M-A WIFI D4 DDR4 MOTHERBOARD mATX B660MA - LGA 1700 B660

Detail MSI PRO B660M-A WIFI D4 DDR4 MOTHERBOARD mATX B660MA - LGA 1700 B660

SPECIFICATIONS
Model Name PRO B660M-A WIFI DDR4
CPU Support Supports 12th Gen Intel® Core™ Processors, Pentium® Gold
and Celeron® Processors
CPU Socket LGA 1700
Chipset Intel® B660 Chipset
Graphics
Interface
1x PCIe 4.0 x16 slot
1x PCIe 3.0 x16 slot
Supports AMD® CrossFire™ Technology
Display Interface Support 4K@60Hz as specified in HDMI 2.1, DisplayPort 1.4 –
Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR4-4800+MHz(OC)
Expansion Slots 1x PCIe 3.0 x1 slot
Storage 2x M.2 Gen4 x4 64Gbps slots,
supports Intel® Optane™ Technology
4x SATA 6Gbps ports
USB ports 2x USB 3.2 Gen 2 10Gbps (2 Type-A),
5x USB 3.2 Gen 1 5Gbps (4 Type-A + 1 Type-C),
6x USB 2.0
LAN Realtek® RTL8125BG 2.5G LAN
Wireless /
Bluetooth
Intel® Wi-Fi 6 module, Bluetooth 5.2
Audio 8-Channel (7.1) HD Audio with Audio Boost

FEATURES
Lightning Gen4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s
bandwidth for maximum transfer speed.
WIFI 6
The latest wireless solution supports MU-MIMO and BSS color
technology, delivering speeds up to 2400Mbps.
Front Type-C USB 3.2 Gen 1 5Gbps
Compatible with the latest PC chassis and perfect for external
drives and other mobile devices.
M.2 Shield FROZR
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe
while preventing throttling, making them run faster.
Memory Boost
Advanced technology to deliver pure data signals for the best
performance, stability and compatibility.
Core Boost
With premium layout and fully digital power design to support
more cores and provide better performance.
EZ Debug LED
Easiest way to troubleshoot.

CONNECTIONS
1. Keyboard / Mouse
3. USB 3.2 Gen 1 5Gbps Type-A
5. Wi-Fi / Bluetooth
7. USB 2.0
9. USB 3.2 Gen 2 10Gbps Type-A
2. DisplayPort
4. LAN port
6. Audio connector
8. HDMI
