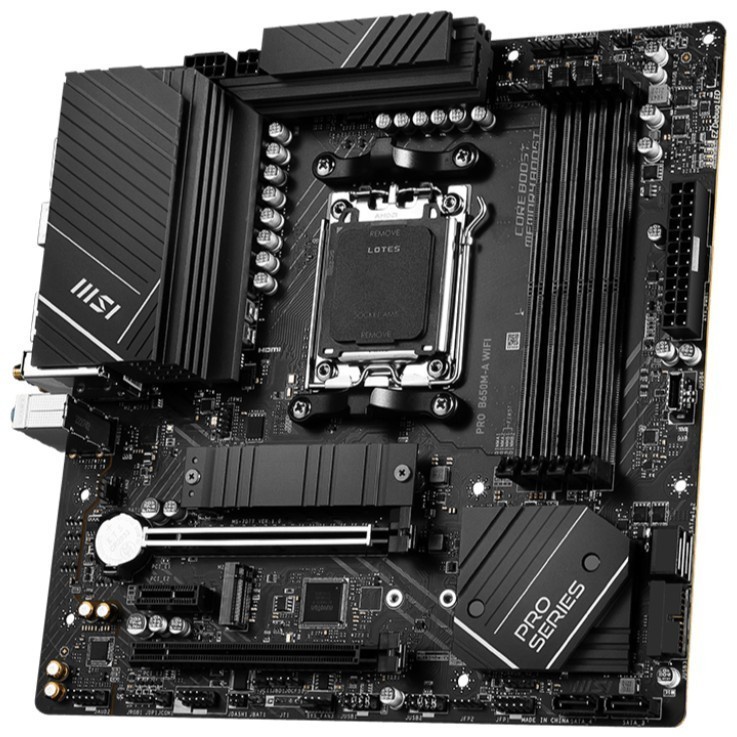

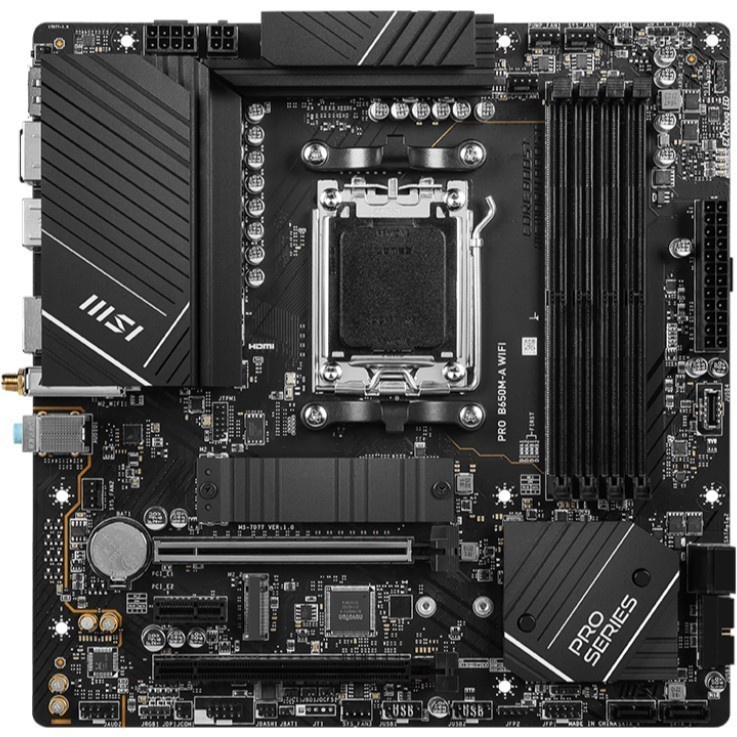

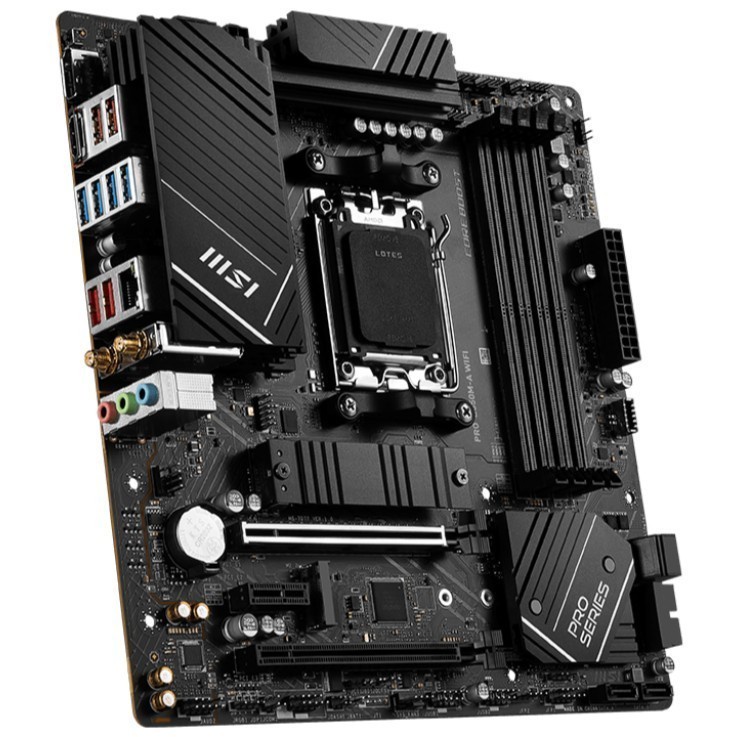

MSI PRO B650M-A WIFI | Motherboard AMD B650 Ryzen AM5

Detail MSI PRO B650M-A WIFI | Motherboard AMD B650 Ryzen AM5

GARANSI RESMI MSI 3TAHUN

𝐒𝐩𝐞𝐜𝐢𝐟𝐢𝐜𝐚𝐭𝐢𝐨𝐧𝐬 :

Chipset
- AMD B650

CPU SUPPORT
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Socket AM5

Memory
- 4x DDR5, Maximum Memory Capacity 128GB
- Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports AMD EXPO

EXPANSION SLOT
- 2x PCI-E x16 slot
- 1x PCI-E x1 slot
- PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
- PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
- PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)

Storage
- 2x M.2 slot
- M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
- M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
- 4x SATA 6G port

LAN
- Realtek® 8125BG 2.5G LAN

WIRELESS / BLUETOOTH
- AMD Wi-Fi 6E
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX
- Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
- Supports 802.11 a/ b/ g/ n/ ac/ ax
- Supports Bluetooth® 5.2**

OPERATING SYSTEM
- Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB Dimension
- mATX
- 243.84mmx243.84mm

Gambar produk
