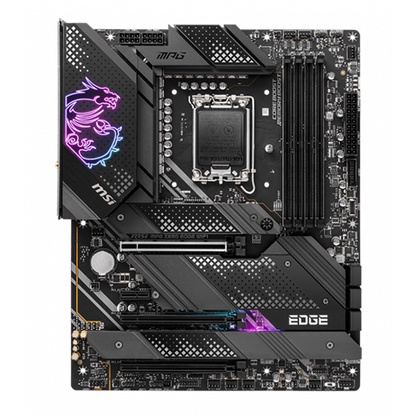

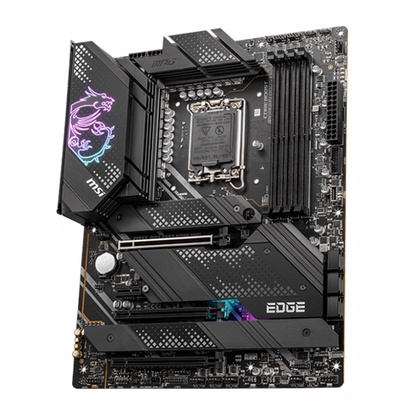

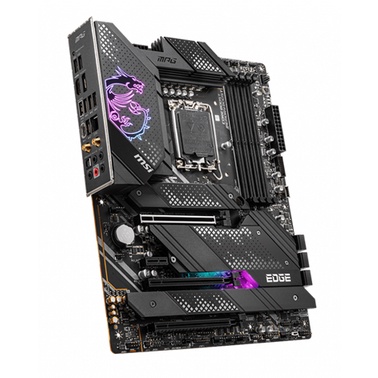

MSI MPG Z690 EDGE WIFI DDR5 (LGA1700, Z690, DDR5, USB3.2, SATA3)

Detail MSI MPG Z690 EDGE WIFI DDR5 (LGA1700, Z690, DDR5, USB3.2, SATA3)

PROCESSOR
Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors 1
Processor socket LGA1700

CHIPSET
Intel® Z690 Chipset

MEMORY
4x DDR5 memory slots, support up to 128GB1
Supports 1R 4800 MHz, 2R 4000 MHz (by JEDEC & POR)1
Max. overclocking frequency:
1DPC 1R Max speed up to 6400+ MHz
1DPC 2R Max speed up to 5400+ MHz
2DPC 1R Max speed up to 4000+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

EXPANSION SLOTS
3x PCIe x16 slots
PCI_E1 slot (From CPU)
Supports PCIe 5.0 x16
PCI_E3 & PCI_E4 slots (From Z690 chipset)
Supports PCIe 3.0 x4
1x PCIe 3.0 x1 slot (From Z690 chipset

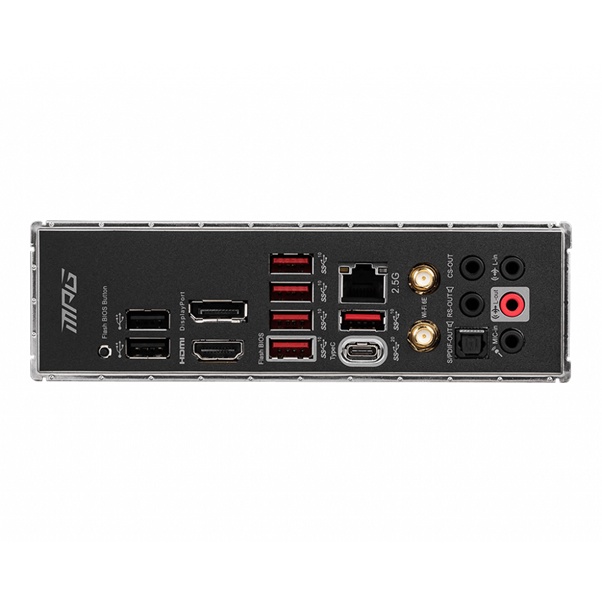

ONBOARD GRAPHICS
1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz
Available only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU installed.

MULTI-GPU
Supports AMD® CrossFire™ Technology

STORAGE
6x SATA 6Gb/s ports
SATA5~8 (From Z690 Chipset)
SATAA~B (From ASMedia ASM1061)
2 x SATA 6Gb/s ports - SATAA & SATAB (From ASMedia
ASM1061)
4x M.2 slots (Key M)
M2_1 slot (From CPU)
Supports PCIe 4.0 x4
Supports 2260/ 2280/ 22110 storage devices
M2_2 slot (From Z690 Chipset)
Supports PCIe 4.0 x4
Supports 2260/ 2280 storage devices
M2_3 slot (From Z690 Chipset)
Supports PCIe 4.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_4 slot (From Z690 Chipset)
Supports PCIe 4.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_2~4 support Intel® Optane™ Memory
Supports Intel® Smart Response Technology for Intel® Core™ processors
