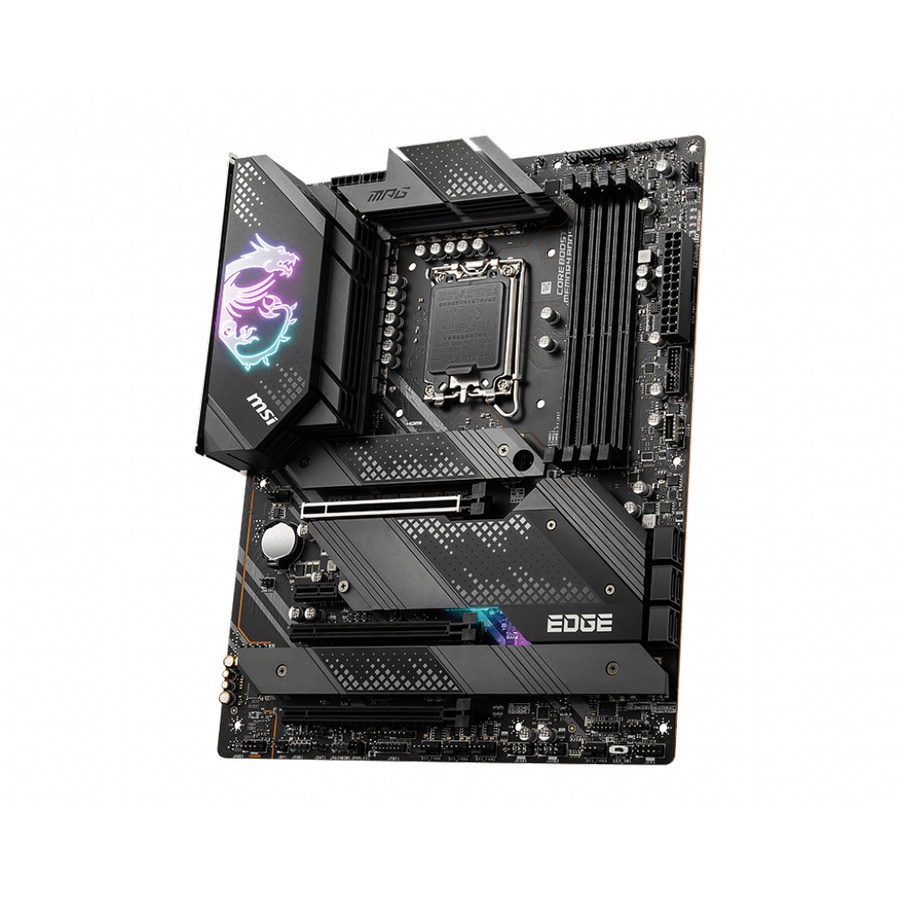

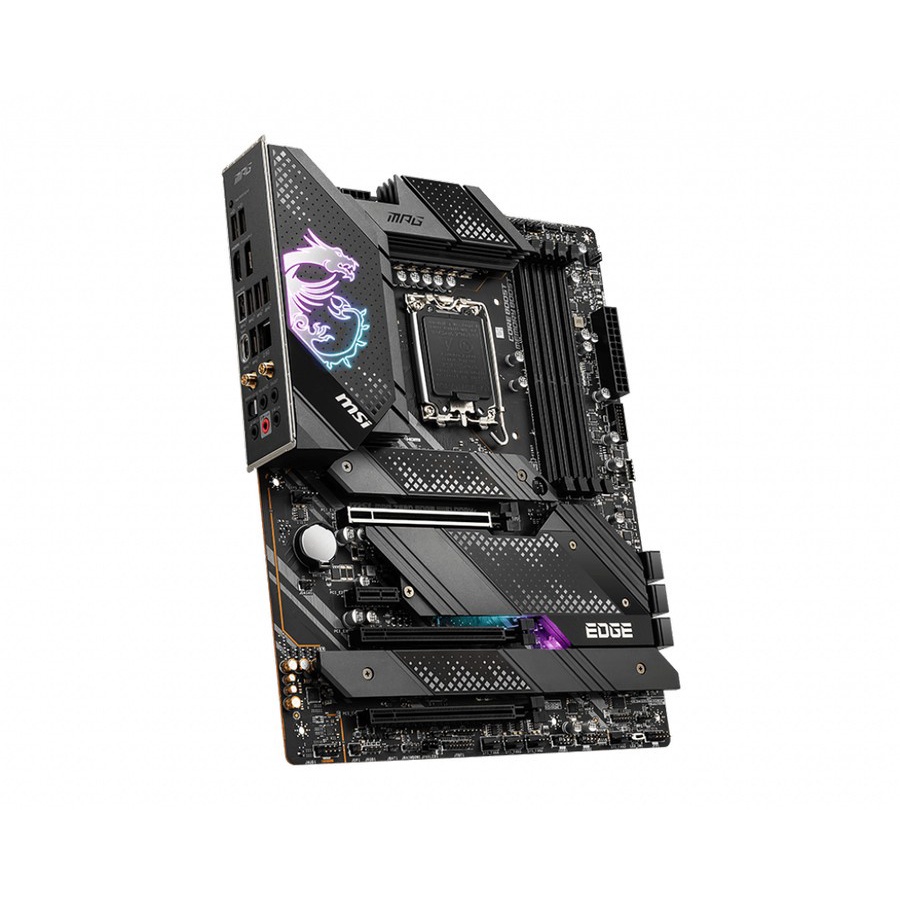

Detail MSI MPG Z690 Edge WiFi DDR4 (LGA1700, Z690, DDR4, USB3.2, SATA3)
CPU (Max Support) i9
Socket 1700
Chipset Intel® Z690 Chipset
DDR4 Memory 5200(OC) / 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2133(JEDEC) MHz
Memory Channel Dual
DIMM Slots 4
Max Memory (GB) 128
PCI-E x16 3
PCI-E x1 1
SATAIII 6
M.2 Slot 4
RAID 0/1/5/10
LAN 1x Intel® I225-V 2.5G LAN
WiFi & Bluetooth Intel® Wi-Fi 6 module
USB 3.2 ports (Front) 1(Gen 2, Type C), 2(Gen 1, Type A)
USB 3.2 ports (Rear) 1(Gen 2x2, Type C), 5(Gen 2, Type A)
USB 2.0 ports (Front) 4
USB 2.0 ports (Rear) 2
DisplayPort 1
HDMI 1
DirectX 12
Form Factor ATX
CrossFire Y
Gambar produk
