MSI MPG Z690 EDGE WIFI DDR4 12th Gen Intel LGA 1700 DDR4 Motherboard

Detail MSI MPG Z690 EDGE WIFI DDR4 12th Gen Intel LGA 1700 DDR4 Motherboard

Clover Gaming Indonesia
===============

MOHON MESSAGE KAMI UNTUK CEK STOK LEBIH DULU :)

Spesifikasi lebih detail mengenai produk ini dapat dilihat di website MSI
Untuk mempermudah agan2 semua, silakan langsung message kami jika ada yang ingin ditanyakan :D

Seluruh produk yang kami jual merupakan :
100% Original
100% BNIB
100% Garansi Resmi
What you see is what you get

Kepuasan agan adalah prioritas utama kami :)

============================================

FEATURES
Premium Thermal Design
Heavy plated mosfet heatsink with heat-pipe / high quality 7W/mK
mosfet thermal pads / extra choke thermal pads / onboard M.2
Shield Frozr

Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.

WIFI 6
The latest wireless solution supports MU-MIMO and BSS color
technology, delivering speeds up to 2400Mbps.

2.5G Network Solution
Featuring premium 2.5G LAN with LAN manager to deliver better
network experience

Lightning USB 20G
Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed,
4X faster than USB 3.2 Gen 1.

Audio Boost 5
Isolated audio with a high quality audio processor & amp for the
most immersive gaming experience

SPECIFICATIONS
Model Name MPG Z690 EDGE WIFI DDR4
CPU Support Supports 12th Gen Intel®
CoreTM Processors, Pentium®
Gold
and Celeron®
Processors
CPU Socket LGA 1700
Chipset Intel®
Z690 Chipset
Graphics
Interface
1x PCIe 5.0 x16 slots, 2x PCIe 3.0 x16 slots
Support AMD®
CrossFireTM Technology
Display Interface Support 4K@60Hz as specified in HDMI 2.1, DisplayPort 1.4
– Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR4-5200+ (OC)
Storage 4x M.2 Gen4 x4 64Gbps slots, supports Intel®
OptaneTM
Technology
6 x SATA 6Gbps

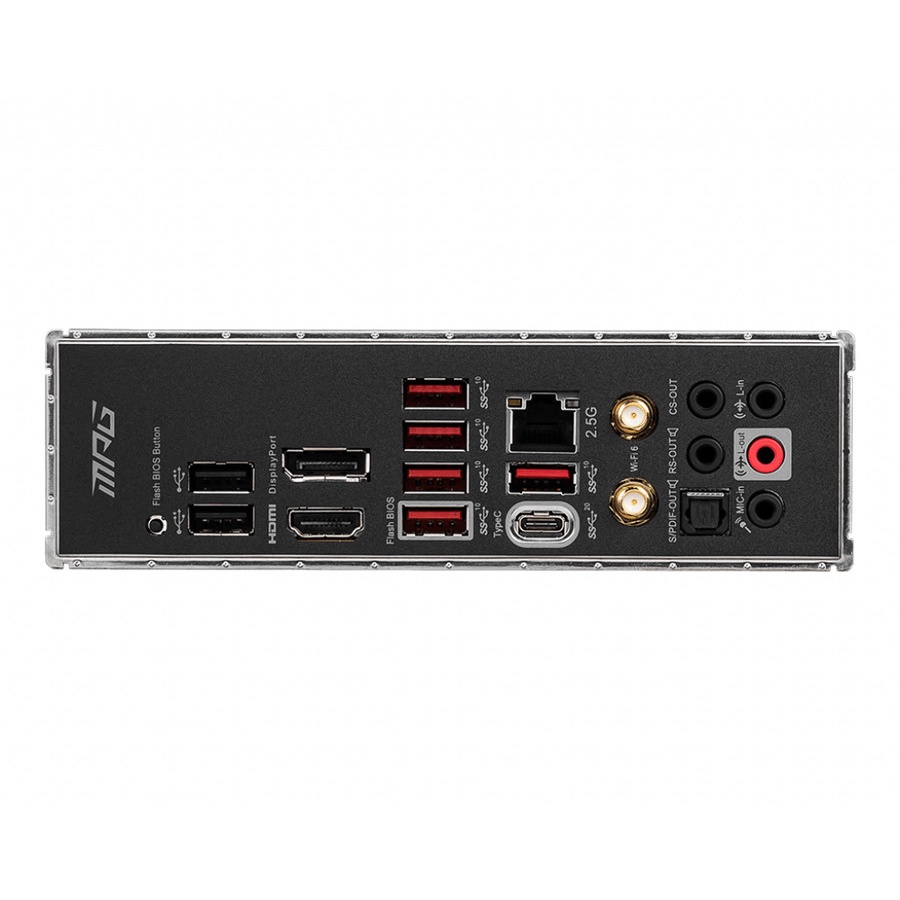

USB ports 1x USB 3.2 Gen 2x2 20Gbps (1 Type-C),
6x USB 3.2 Gen 2 10Gbps (5 Type-A + 1 Type-C),
2x USB 3.2 Gen 1 5Gbps (2 Type-A),
6x USB 2.0
LAN Intel®
I225-V 2.5G LAN
Wireless /
Bluetooth
Intel®
Wi-Fi 6 module, Bluetooth 5.2
Audio 8-Channel (7.1) HD Audio

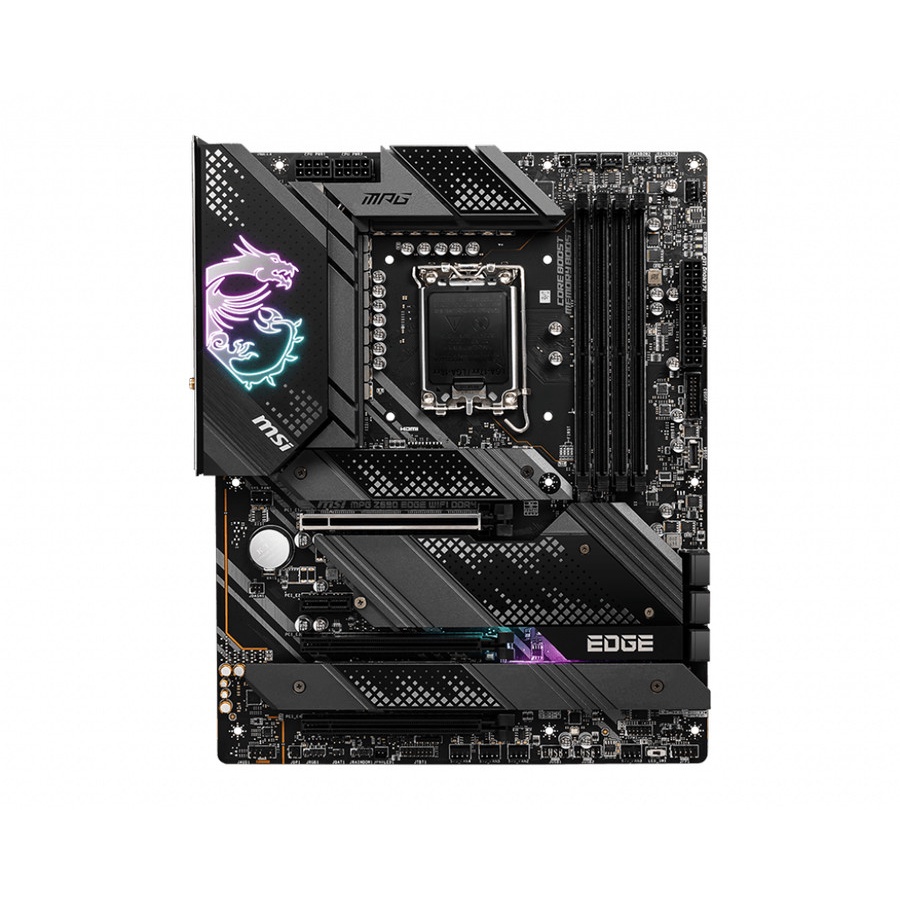

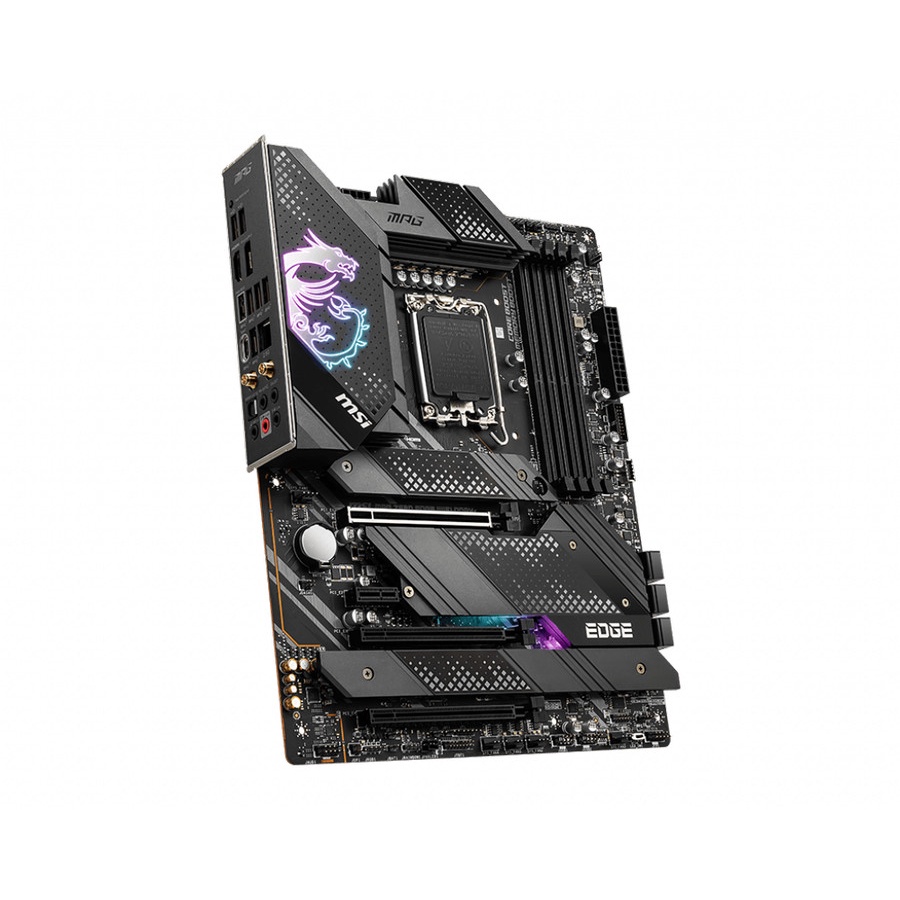

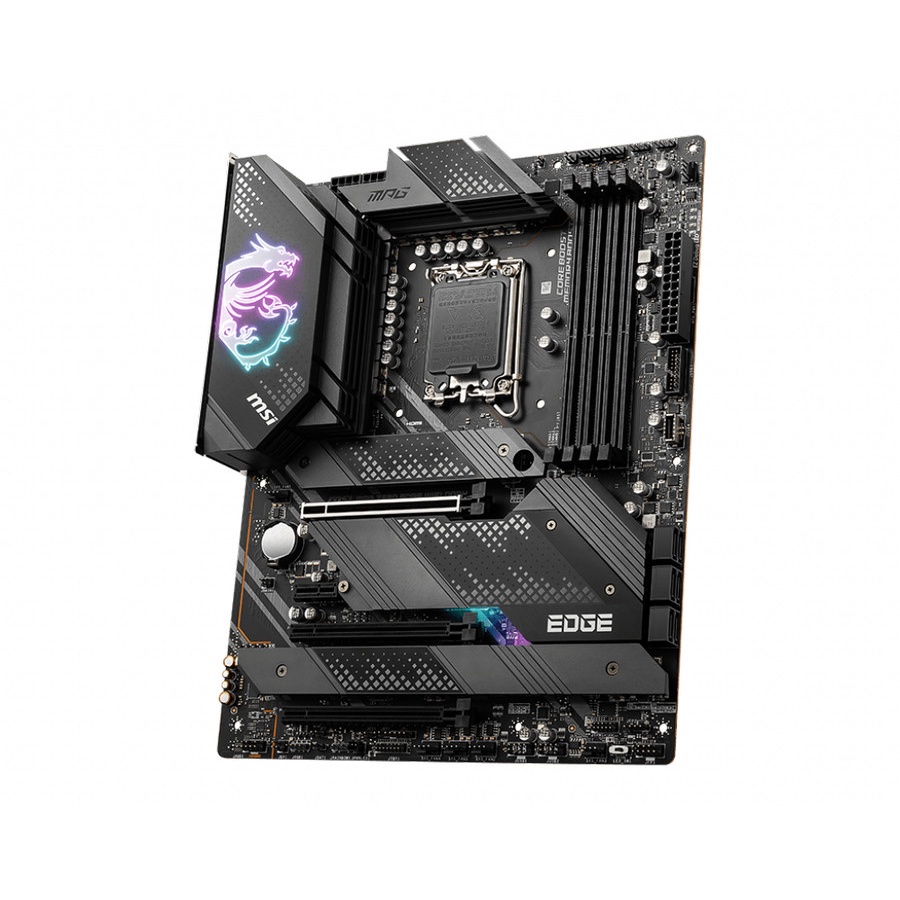

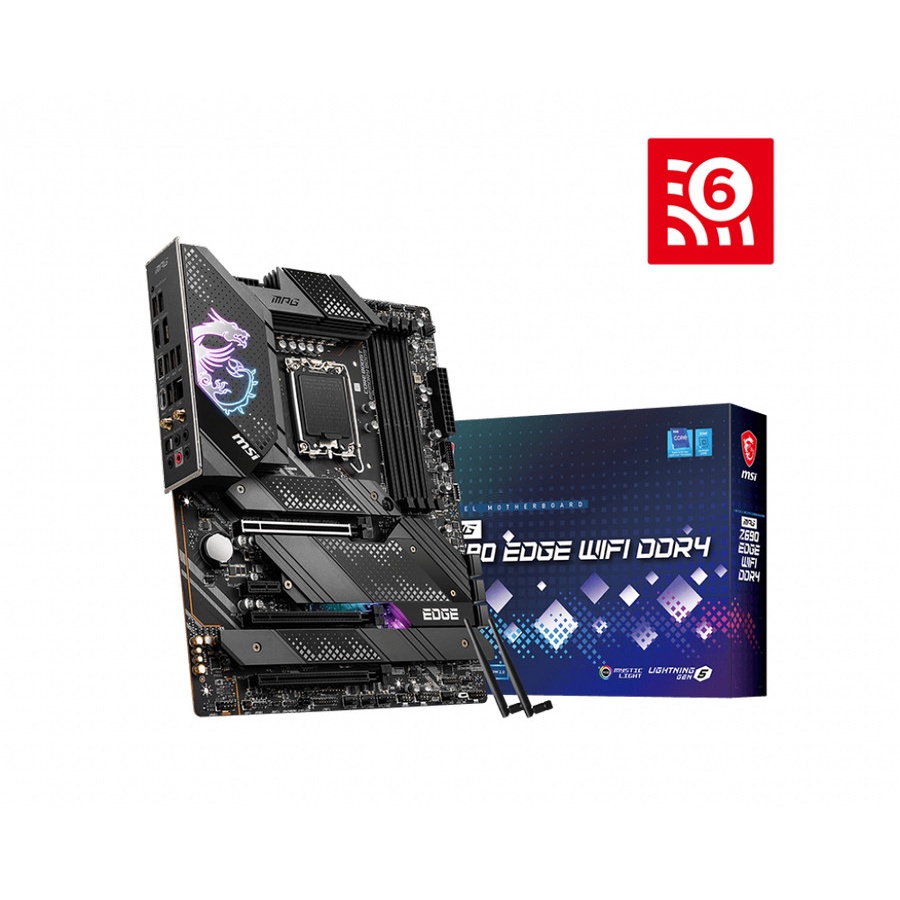

Gambar produk
