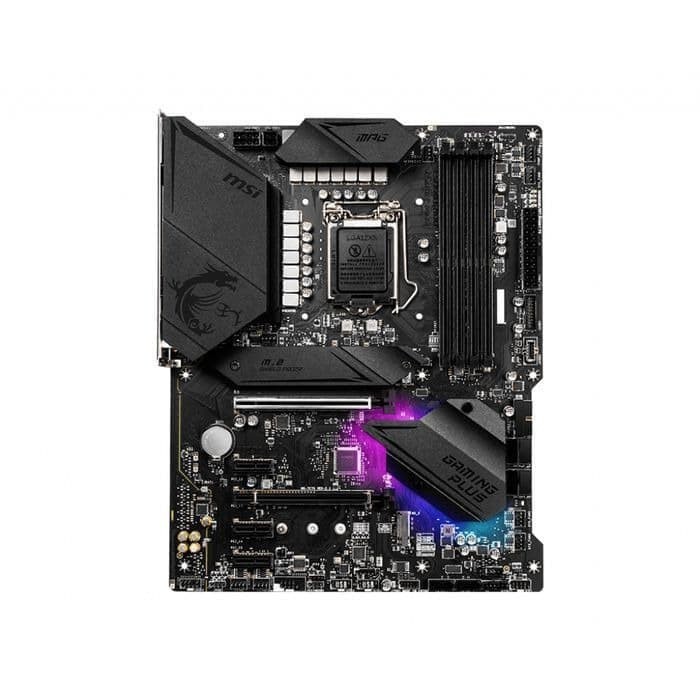

MSI MPG Z490 Gaming Plus

Detail MSI MPG Z490 Gaming Plus

MSI MPG Z490 Gaming Plus
-Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
-Supports DDR4 Memory, up to 4800(OC) MHz
-Ready 4 the Future: Support Lightning Gen 4 Solution for the future
-Enhanced Power Design: 12+1+1 Duet Rail Power System, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost
-Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
-2.5G LAN with LAN Manager: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
-Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
-Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
-Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen 2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
-Audio Boost: Reward your ears with studio grade sound quality


SOCKET : 1200
CPU (MAX SUPPORT) : i9
CHIPSET : Intel® Z490 Chipset
DIMM SLOTS : 4
MAX MEMORY (GB) : 128
PCI-E X16 : 2
PCI-E GEN : Gen3
PCI-E X1 : 3
SATAIII : 6
M.2 SLOT : 2
RAID : 0/1/5/10
TPM (HEADER) : 1
LAN : 1x Realtek® RTL8125B 2.5G LAN
USB 3.2 PORTS (FRONT) : 1(Gen 1, Type C), 4(Gen 1, Type A)
USB 3.2 PORTS (REAR) : 1(Gen 2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A)
USB 2.0 PORTS (FRONT) : 4
USB 2.0 PORTS (REAR) : 2
SERIAL PORTS(FRONT) : 1
AUDIO PORTS (REAR) : 5+ Optical S/PDIF (Realtek® ALC1200 Codec)
DISPLAYPORT : 1
HDMI : 1
DIRECTX : 12
FORM FACTOR : ATX
CROSSFIRE : Y
OPERATING SYSTEM : Support for Windows® 10 64-bit
