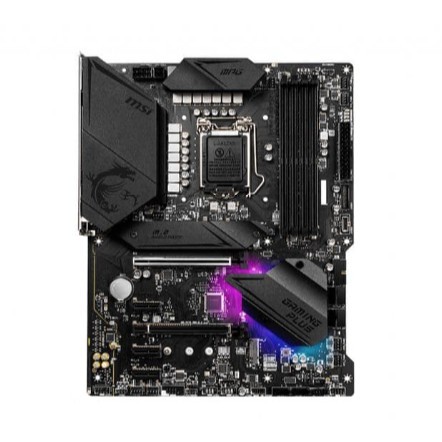

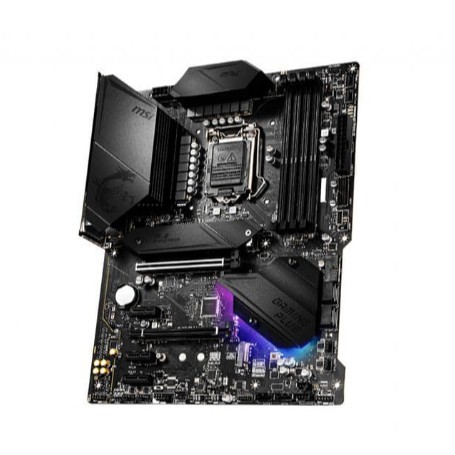

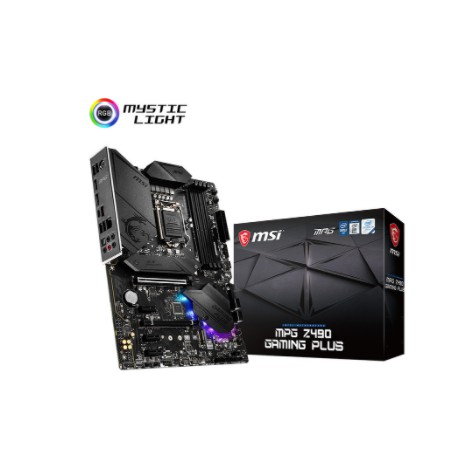

MSI MPG Z490 GAMING PLUS (LGA1200, Z490, DDR4)

Detail MSI MPG Z490 GAMING PLUS (LGA1200, Z490, DDR4)

Specification :
Processor

Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket 1 2

Please go to intel.com for compatibility information.
Onboard graphics output are disabled when using the F SKU processors.

See supported processors
Chipset

Intel® Z490 Chipset
Memory

4 x DDR4 memory slots, support up to 128GB 1
Supports 1R 2133/2666/2933 MHz 1
1DPC 1R Max speed up to 4800+ MHz
1DPC 2R Max speed up to 4266+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

See supported memory
Expansion Slot

1x PCIe 3.0 x16 slot (from CPU)
1x PCIe 3.0 x16 slot (from PCH， supports x4 mode)
3x PCIe x1 slots (from PCH)

Onboard Graphics

1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz
1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz

Multi-GPU

Supports 2-Way AMD® CrossFire™ Technology

Storage
Intel® Z490 Chipset

6x SATA 6Gb/s ports 1
2x M.2 slots (Key M)
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices 1
M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices 2
Intel® Optane™ Memory Ready 3
Supports Intel® Smart Response Technology for Intel Core™ processors

SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 slot.
Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
