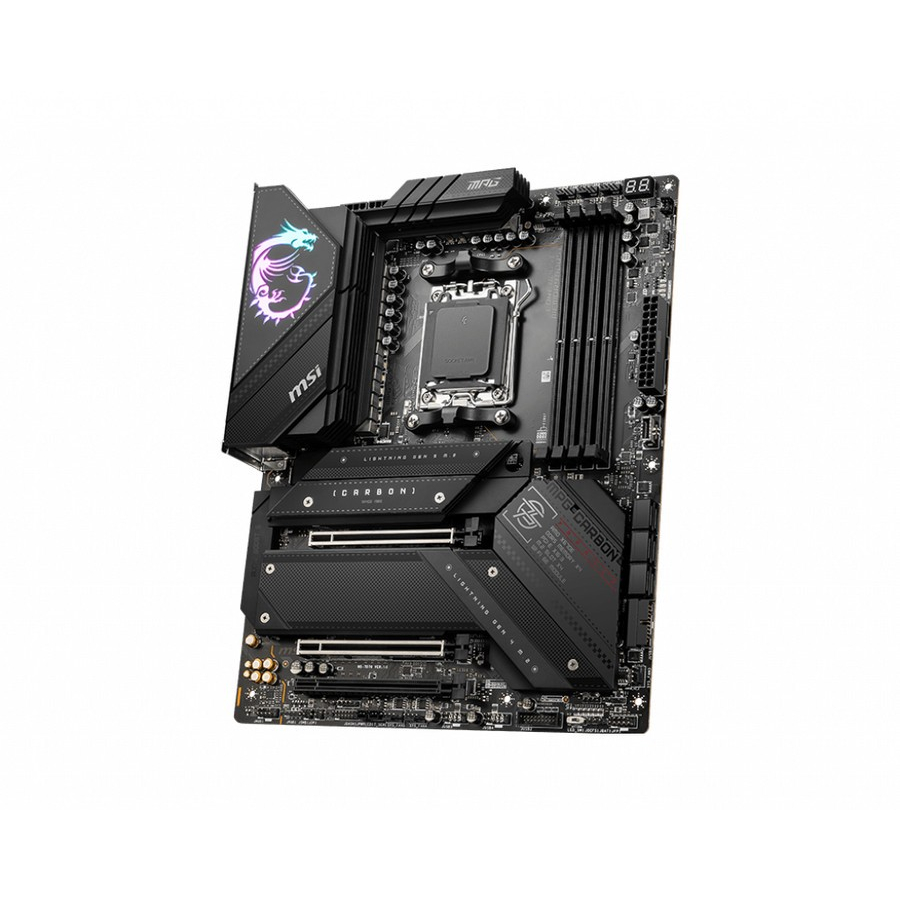

MSI MPG X670E CARBON WIFI Motherboard AMD X670 Ryzen AM5

Detail MSI MPG X670E CARBON WIFI Motherboard AMD X670 Ryzen AM5

#GARANSI RESMI MSI 3TAHUN

CHIPSET
- AMD X670

CPU SUPPORT
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Socket AM5

MEMORY
- 4x DDR5, Maximum Memory Capacity 128GB
- Memory Support DDR5 6600+(OC)/6400(OC)/ 6200(OC)/6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

ONBOARD GRAPHICS
- 1x HDMI™
- 1x DisplayPort
- Support HDMITM 2.1 FRL, maximum resolution of 4K 120Hz*
- 1x Display Port
- Support DP 1.4, maximum resolution of 4K 60Hz*
- 1x Type-C DisplayPort
- Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz

EXPANSION SLOT
- 1x PCI-E x16 slot
- Supports x16/x0/x4, x8/x8/x4
- PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
- PCI_E2 PCIe 5.0 supports up to x8 (From CPU)
- PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)

MULTI-GPU
- Supports AMD MULTI-GPU

STORAGE
- 4x M.2 slot
- M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
- M.2_2 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
- M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
- M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
- 6x SATA 6G port

LAN
- Realtek® RTL8125BG 2.5Gbps LAN

WIRELESS / BLUETOOTH
- AMD Wi-Fi 6E
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
- Supports 802.11 a/ b/ g/ n/ ac/ ax
- Supports Bluetooth® 5.2**

AUDIO
- Realtek® ALC4080 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output
- Supports up to 32-Bit/384 kHz playback on front panel

OPERATING SYSTEM
- Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB DIMENSION
- ATX
- 304.8mmx243.84mm

Gambar produk
