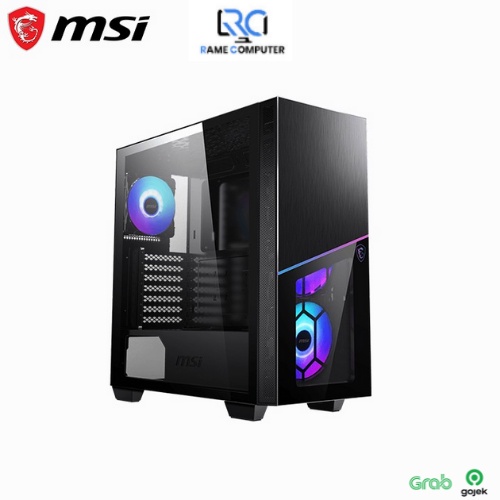

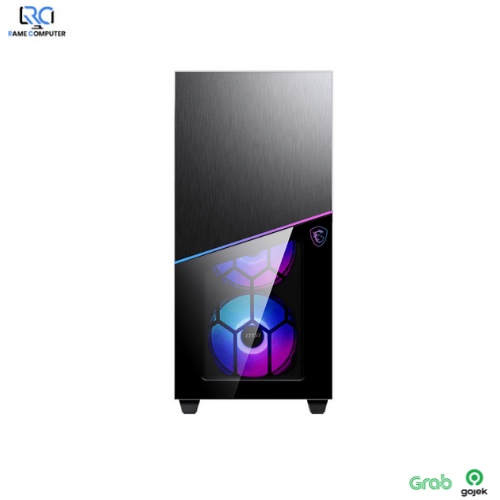

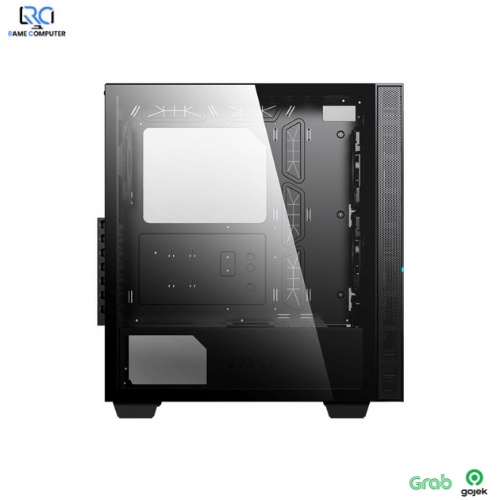

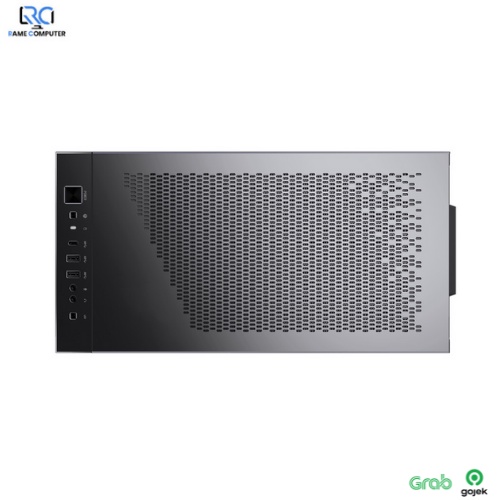

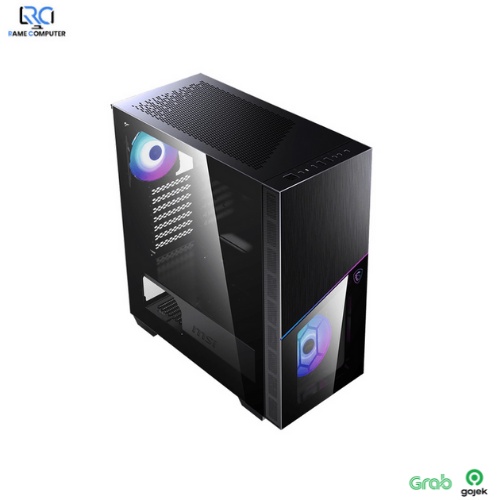

PRODUCT NAME FORM FACTOR MOTHERBOARD SUPPORT I/O PORTS DRIVE BAYS EXPANSION SLOTS MAXIMUM GPU LENGTH MAXIMUM CPU COOLER HEIGHT POWER SUPPLY SUPPORT FAN SUPPORT PRE-INSTALLED FANS RADIATOR SUPPORT DIMENSIONS MPG SEKIRA 100R Mid-Tower E-ATX / ATX / M-ATX / Mini ITX 2 x USB 3.2 Gen 1 Type-A 1 x USB 3.2 Gen 2x2 Type-C 1 x Audio / 1 x Mic 2 x 3.5” (compatible with 2.5”) + 2 x 2.5” 7 340mm 170mm Standard ATX, , max up to 250mm (without 3.5'' HDD tray installed)
Front: 3 x 120mm or 2 x 140mm Top: 2 x 120mm or 2 x 140mm Rear: 1 x 120mm Front: 3 x 120mm ARGB Fan Rear: 1 x 120mm ARGB Fan Front: 120 / 140 / 240 / 280 / 360mm Top: 120 / 240mm Rear: 120 mm 420(D) x 215(W) x 475(H) mm 16.54(D) x 8.46(W) x 18.70(H) inches
