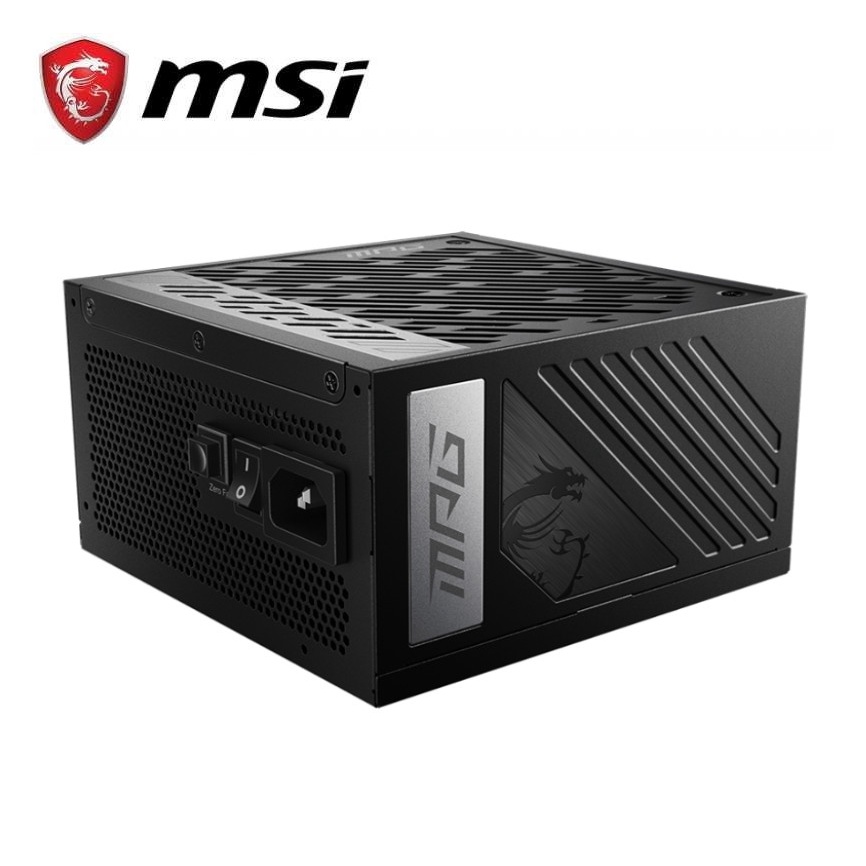

MSI MPG A1000G PCIE5 1000W ATX 3.0 80+ Gold Full modular - PSU Mantap

Detail MSI MPG A1000G PCIE5 1000W ATX 3.0 80+ Gold Full modular - PSU Mantap

MSI MPG A1000G PCIE5 1000W ATX 3.0 80+ Gold Full modular - PSU
SPECIFICATIONS
Efficiency Rating 80 PLUS Gold (up to 90%)
Modular Yes (fully modular)
Fan Size 135 mm
Fan Bearing Fluid Dynamic Bearing
Dimensions (DxWxH) 150 x 150 x 86 mm
PFC Type Active PFC
Power Watt 1000W
Input Voltage Range 100~240 VAC
Input Frequency Range 50~60 Hz
Protection OCP / OVP / OPP / OTP / SCP / UVP
ATX (24 pin) 1
EPS (4+4 pin) 2
PCI-E 5.0 (16 pin) 1
PCI-E (6+2 pin) 6
SATA (15 pin) 12
MOLEX (4 pin) 4
FDD (4 pin) 1

MPG A1000G PCIE5
Supports Nvidia® GeForce RTX® 40 Series
graphics cards
Full modular design
Flat cables
80 Plus Gold certified for high efficiency
100% all Japanese 105oC capacitor
Active PFC design
Industrial level protection with
OVP,OCP,OPP,OTP, SCP,UVP
LLC Half Bridge Topology with DC-DC
module design
