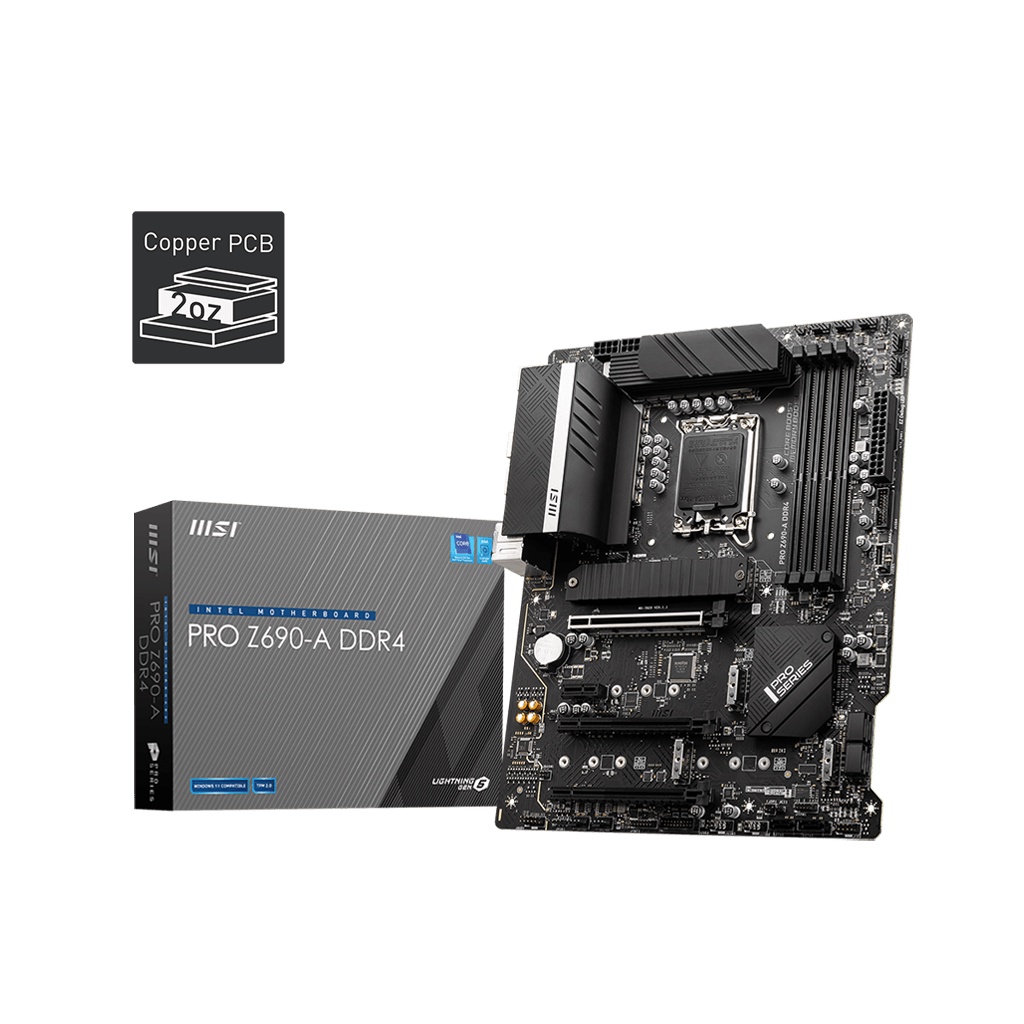

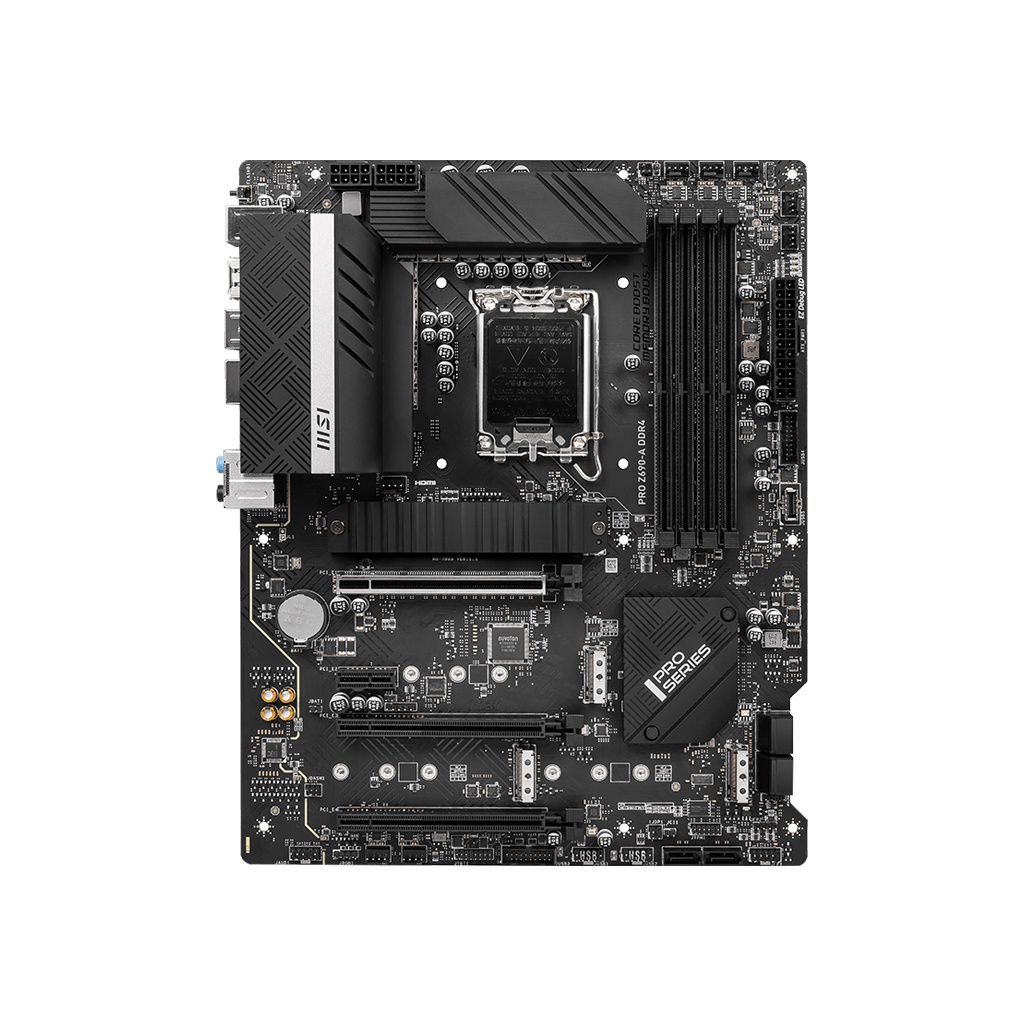

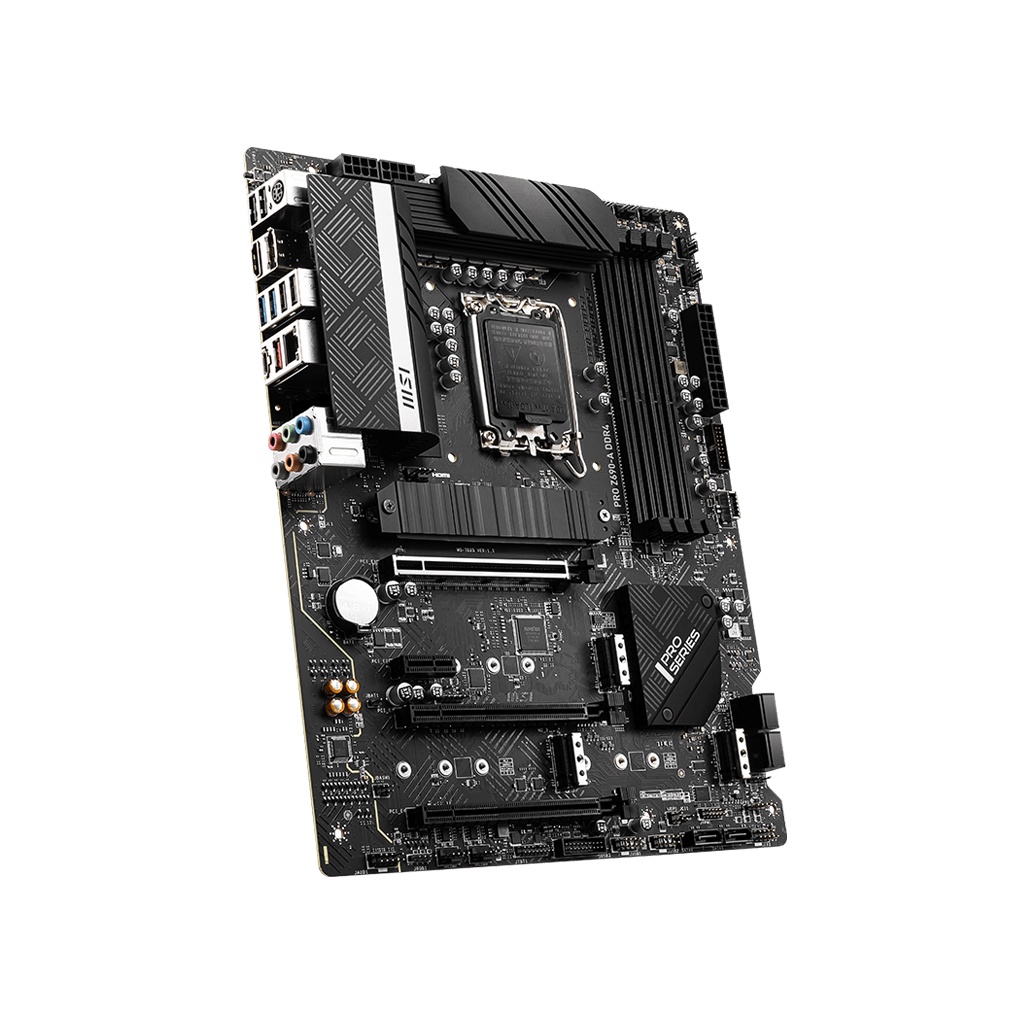

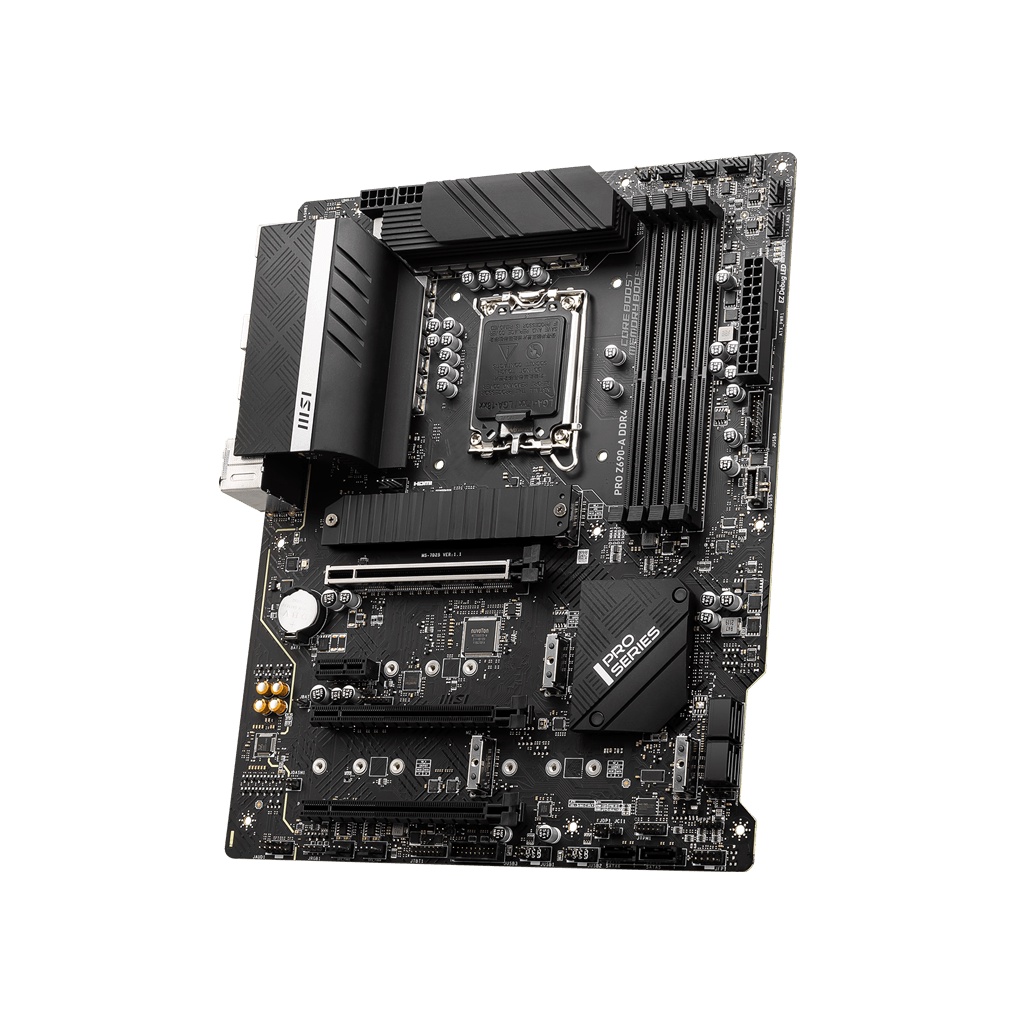

MSI MOTHERBOARD PRO Z690-A DDR4 Intel Z690 LGA 1700 ATX

Detail MSI MOTHERBOARD PRO Z690-A DDR4 Intel Z690 LGA 1700 ATX

Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

PRO Z690-A DDR4

SPEK:
CPU (MAX SUPPORT)
i9

SOCKET
1700

CHIPSET
Intel® Z690 Chipset

DDR4 MEMORY
5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz

MEMORY CHANNEL
Dual

DIMM SLOTS
4

MAX MEMORY (GB)
128

PCI-E X16
3

PCI-EX1
1

SATAIII
6

M.2 SLOT
4

RAID
0/1/5/10

TPM (HEADER)
1

LAN
1x Intel® I225-V 2.5Gbps LAN

WIFI & BLUETOOTH
Intel® Wi-Fi 6 module

USB 3.2 PORTS (FRONT)
1(Gen 2, Type C), 4(Gen 1, Type A)

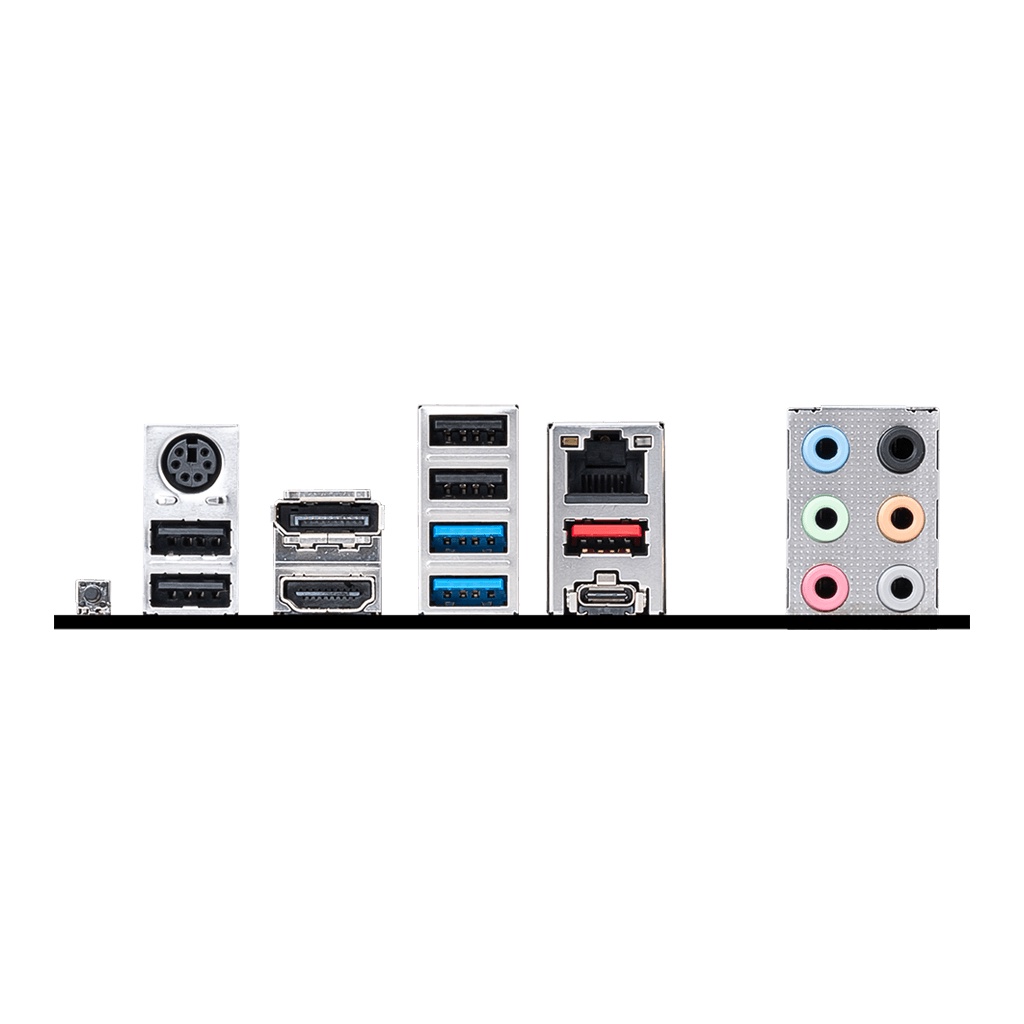

USB 3.2 PORTS (REAR)
1(Gen 2x2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A)

USB 2.0 PORTS (FRONT)
4

USB 2.0 PORTS (REAR)
4

AUDIO PORTS (REAR)
Realtek® ALC897/ALC892 Codec

DIRECTX
12

DISPLAYPORT
1

HDMI
1

OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit

FORM FACTOR
ATX

Gambar produk
