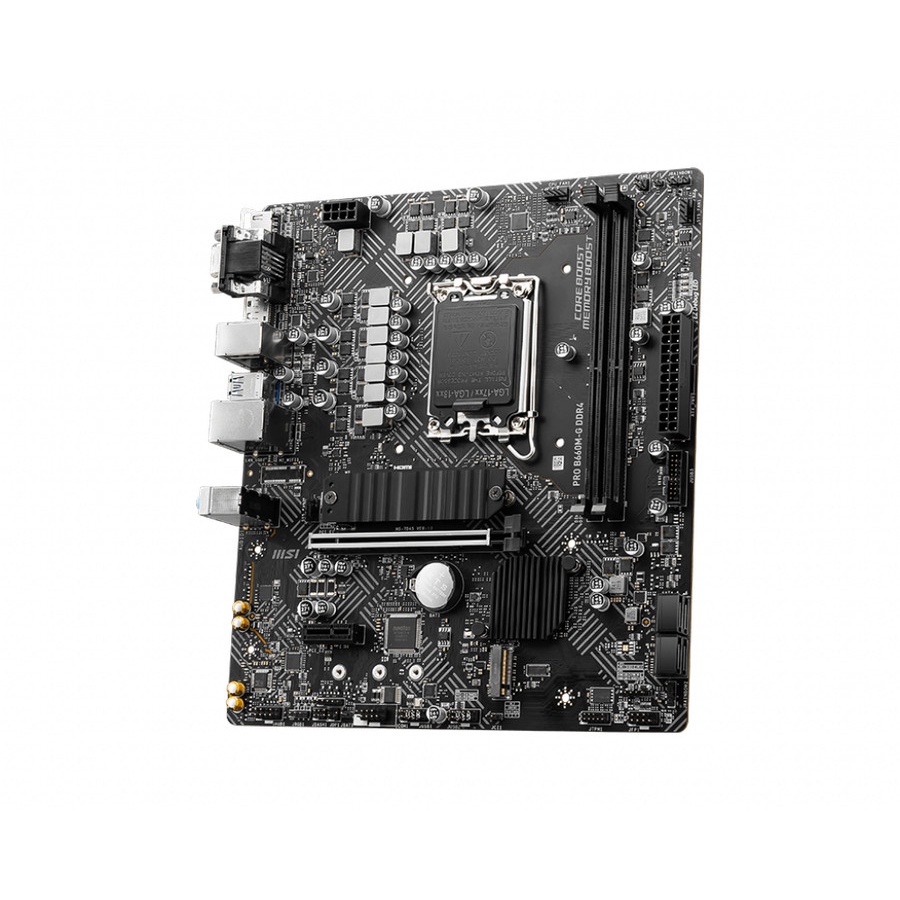

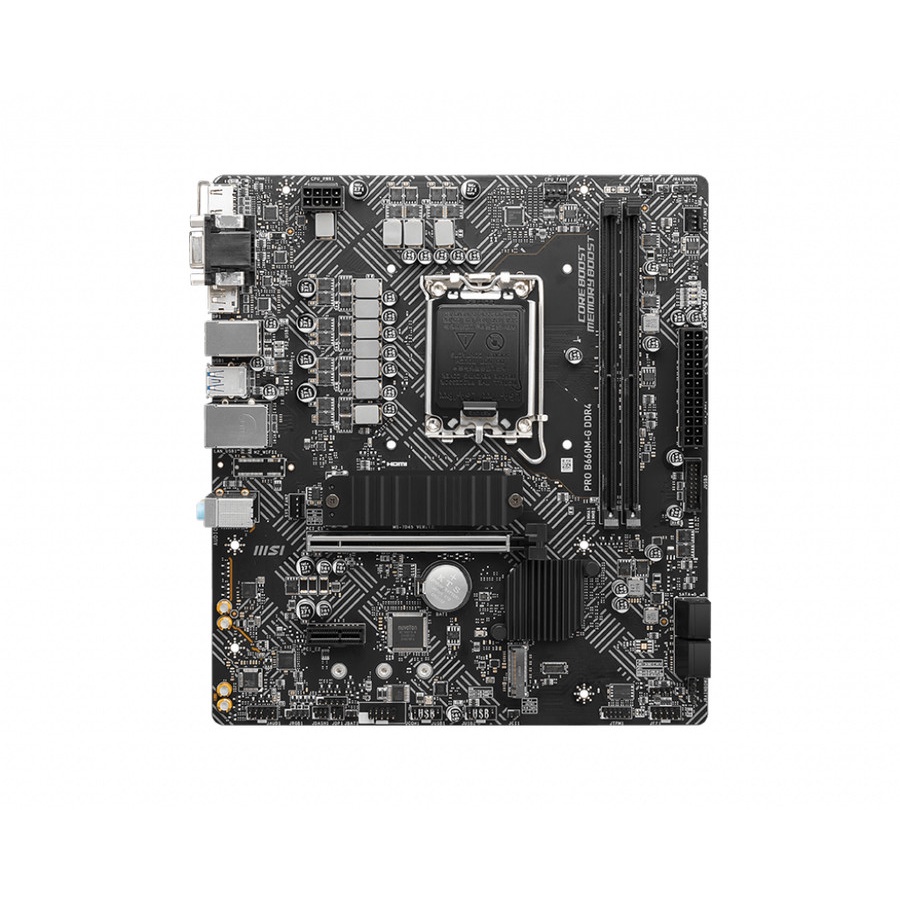

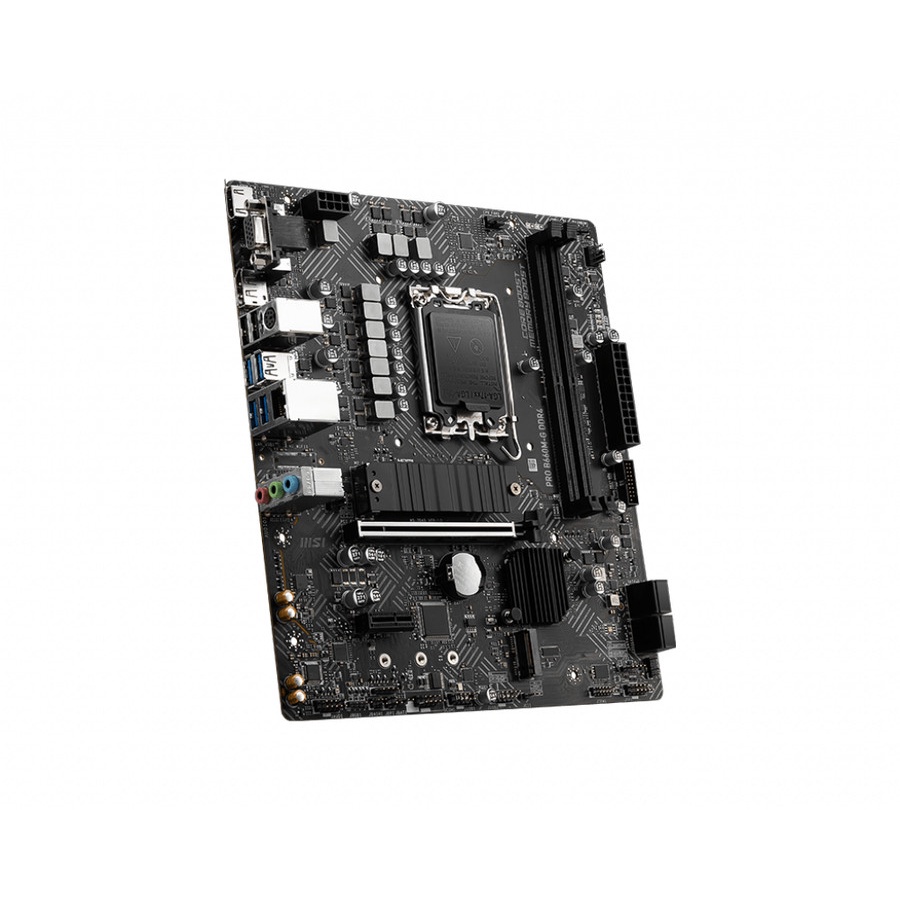

MSI MOTHERBOARD PRO B660M - G DDR4 LGA 1700 INTEL

Detail MSI MOTHERBOARD PRO B660M - G DDR4 LGA 1700 INTEL

GARANSI RESMI MSI 3 TAHUN

CPU
Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors 1

Processor socket LGA1700

Please go to msi.com to get the newest support status as new processors are released.
CHIPSET
Intel® B660 chipset

MEMORY
2x DDR4 memory slots, support up to 64GB 1
Supports ADL-s 1R 2133/2666/2933/3200 MHz 1
1DPC 1R Max speed up to 4600+ MHz
1DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Please refer www.msi.com for more information on compatible memory.
See supported memory

EXPANSION SLOT
1x PCIe 4.0 x16 slot (from CPU)
1x PCIe 3.0 x1 slot (from B660 chipset)
ONBOARD GRAPHICS
1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1/2
1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1/2
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 1/2 (PRO B660M-G DDR4)
Available for the processor with integrated graphics.Graphics specifications may vary depending on the CPU installed.
AUDIO
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
LAN1x Realtek® RTL8125BG 2.5Gbps LAN controller
STORAGE
4x SATA 6Gb/s ports (From B660 chipset) 1
2x M.2 slots (Key M)
M2_1 slot (From CPU)
Supports PCIe 4.0 x4
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (From B660 chipset) 1
Supports PCIe 4.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Supports Intel® Optane™ Technology
SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

Gambar produk
